Spare parts
10.12 Exploded drawings
1LA5/6/7/9, 1LG4/6, 1MA6/7, 1MB..1/2/3/4/5 - SH 63 ... 355
156 Operating Instructions, 06/2018, A5E44455710A

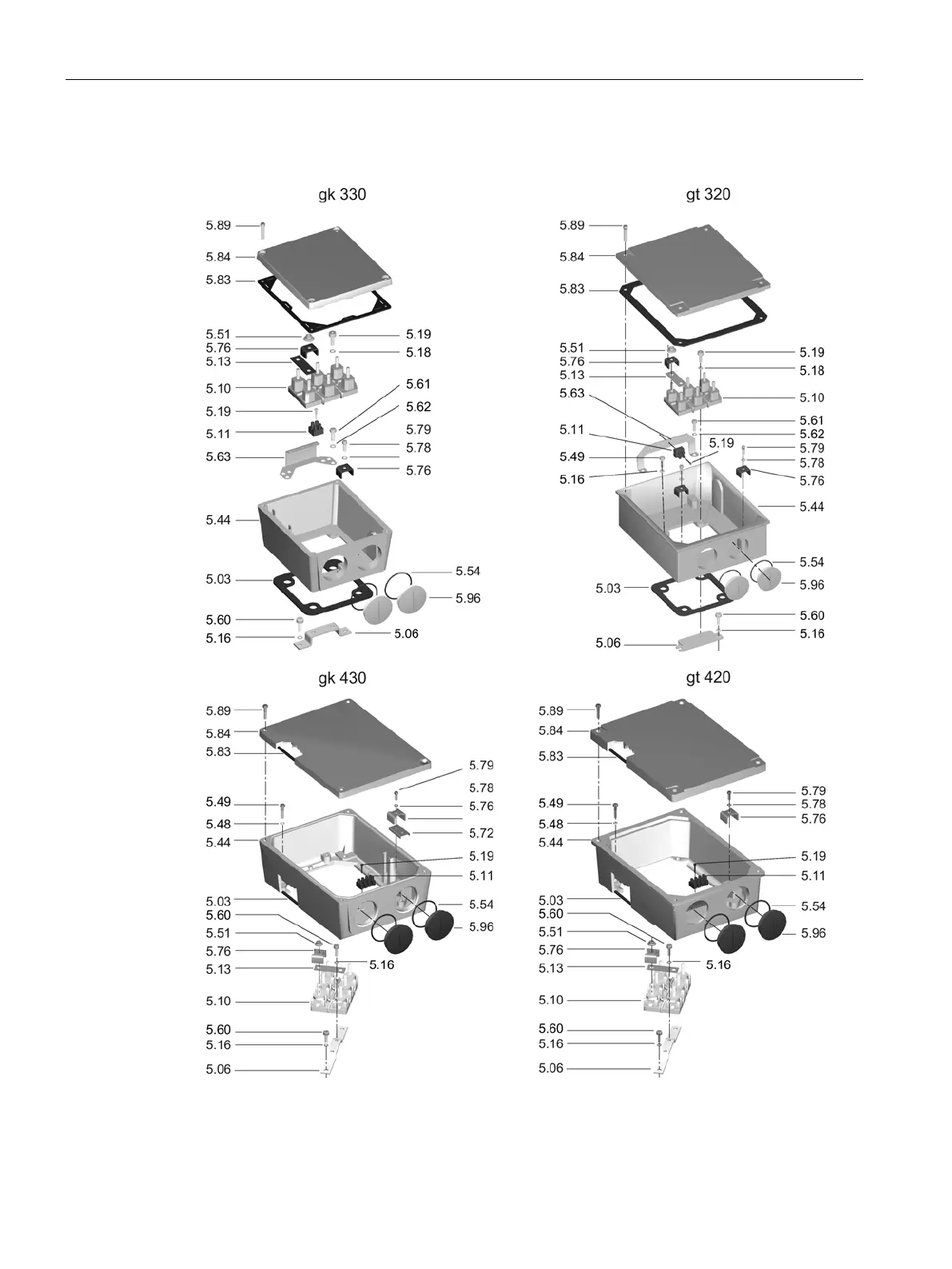

10.12.15
Terminal box gk330, gt320, gk430, gt420
