Electrical connection
6.5 Connecting the temperature sensor/anti-condensation heater
1LA5/6/7/9, 1LG4/6, 1MA6/7, 1MB..1/2/3/4/5 - SH 63 ... 355
Operating Instructions, 06/2018, A5E44455710A
79
Shaft height
Thread size for the grounding conductor
63 ... 160
1 x M 5
180 1 x M 6
200
2 x M 6
225 ... 315
2x M8
315 ... 355
(1MB)
2 x M 12
The additional grounding point (generally on the opposite side) is optionally available.
6.5
Connecting the temperature sensor/anti-condensation heater
6.5.1
Connecting optional integrated devices and equipment
In addition to the current-dependent overload protective device located in the connecting
cables, use the optionally available integrated devices and equipment, for example,
temperature sensor, anti-condensation heating.

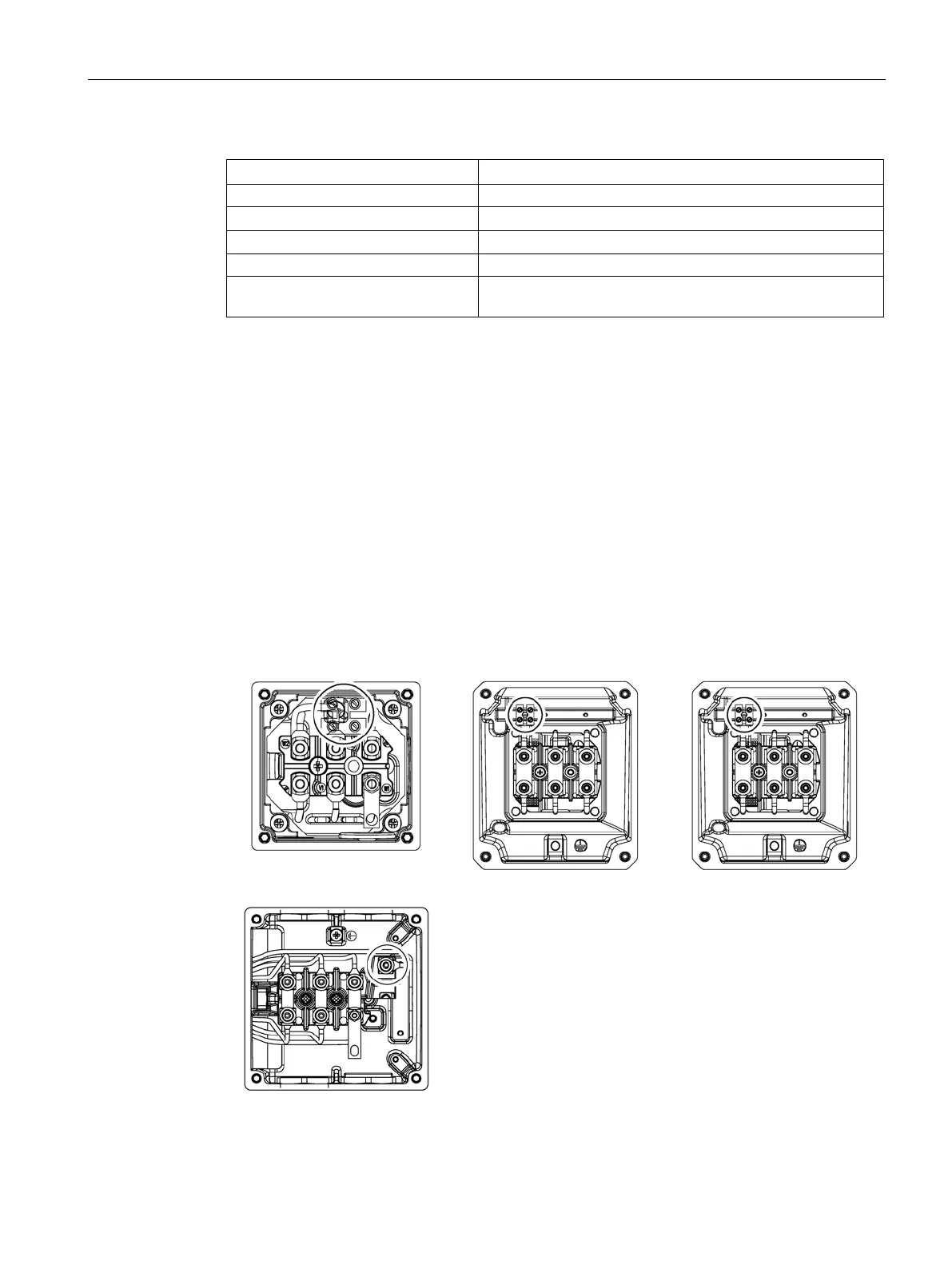

Depending on the terminal box version, connect the auxiliary circuits to the terminal block or
to the terminal board.
Terminal block connection
Terminal board connection
