Siemens SIMOTICS XP 1MB1 series User Manual

Electrical connection
6.6 Conductor connection
1LA5/6/7/9, 1LG4/6, 1MA6/7, 1MB..1/2/3/4/5 - SH 63 ... 355
Operating Instructions, 06/2018, A5E44455710A
81
6.6.1

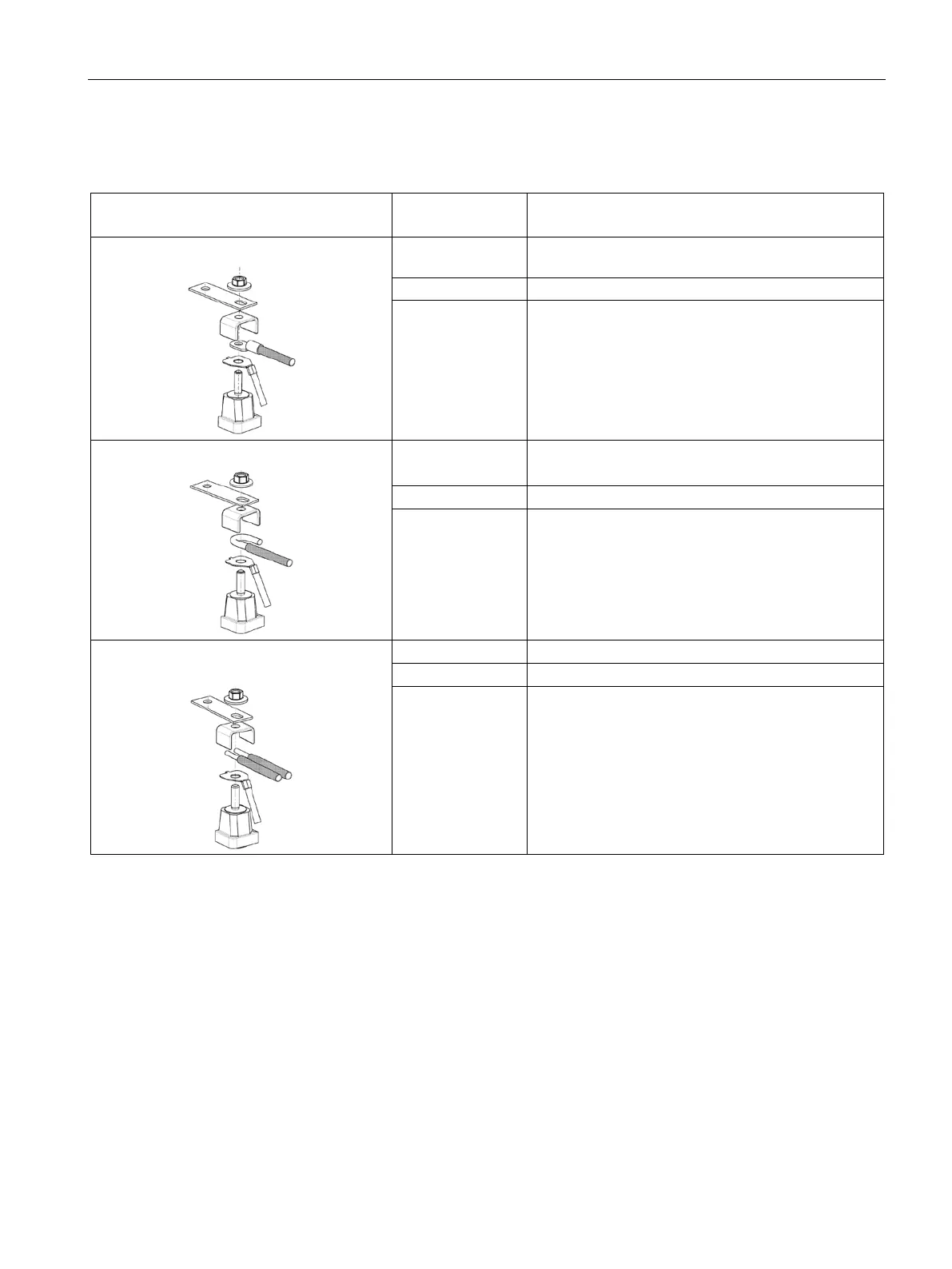

Connecting conductors
Type of connection
Terminal studs
Cable cross-section
mm²
Connection with cable lug DIN 46234 M 4 1 ... 4
1 ... 6 (shaft height 132)
M5 1 ... 16
M6 4 ... 35
Connection of a single conductor M 4 1 ... 4
1 ... 6 (shaft height 132)
M5
1 ... 16
M6 4 ... 35
Connection of two conductors of the same
thickness with terminal clamp
M 4
Not permitted
M5
Not permitted
M6 4 ... 35
