6.7 Interconnecting optional connections
Depending on the range of options installed, further connections have to be interconnected.
Detailed information about interconnecting these options with the interfaces is provided in the
circuit manual.
6.8 Fastening the cable ducts with cable ties
Fasten all cable ducts whose cover faces downward with cable ties. Wind the cable ties around
the entire cable duct. The cable ties must be located at the same positions as in the delivered
state.

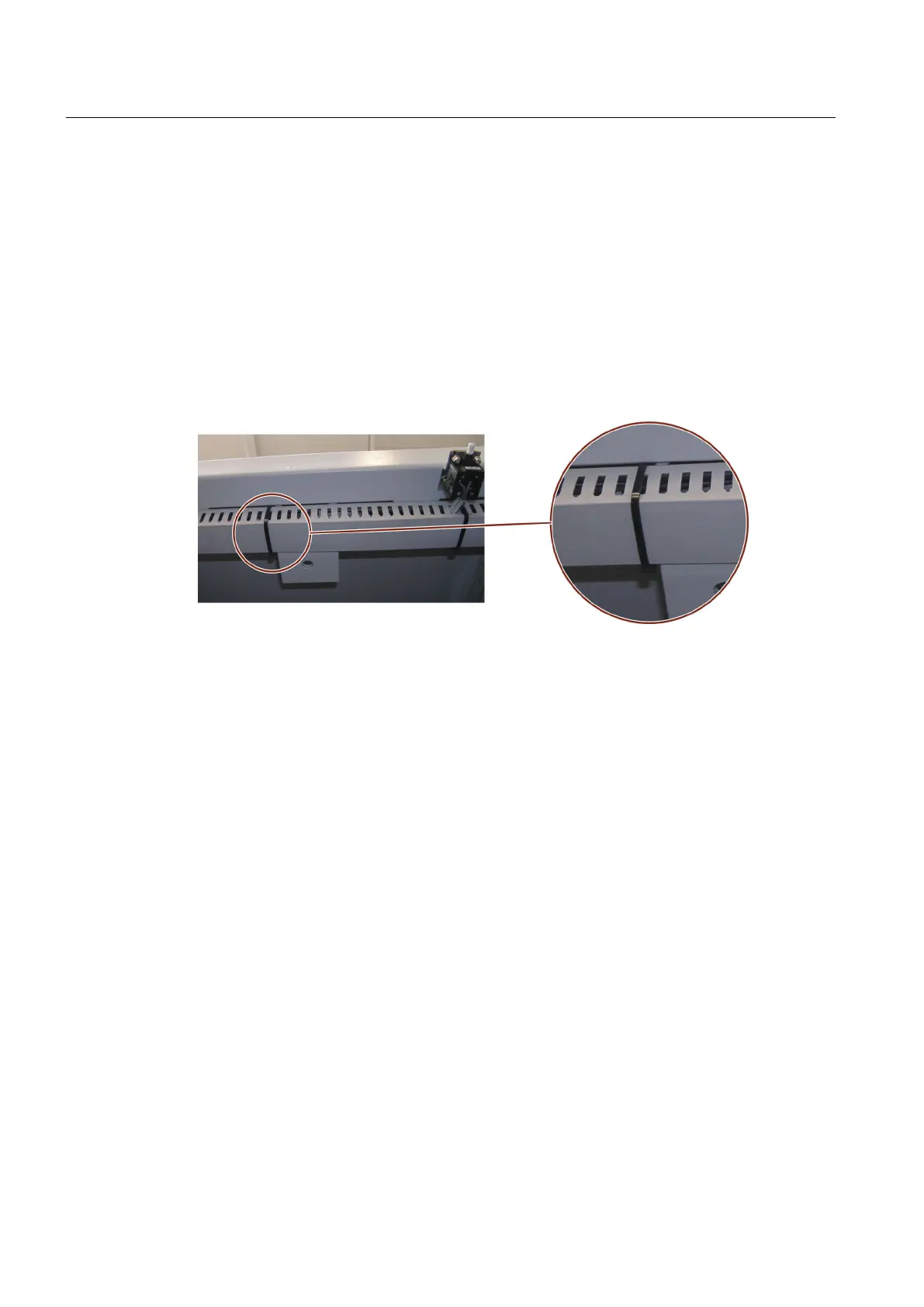

Figure 6-5 Schematic diagram: Fastening the cable ties
Electrical connection
6.8 Fastening the cable ducts with cable ties
SINAMICS SL150 6SL38600UL432AA0Z
68 Operating Instructions Rev.201910281433 EXAMPLE
