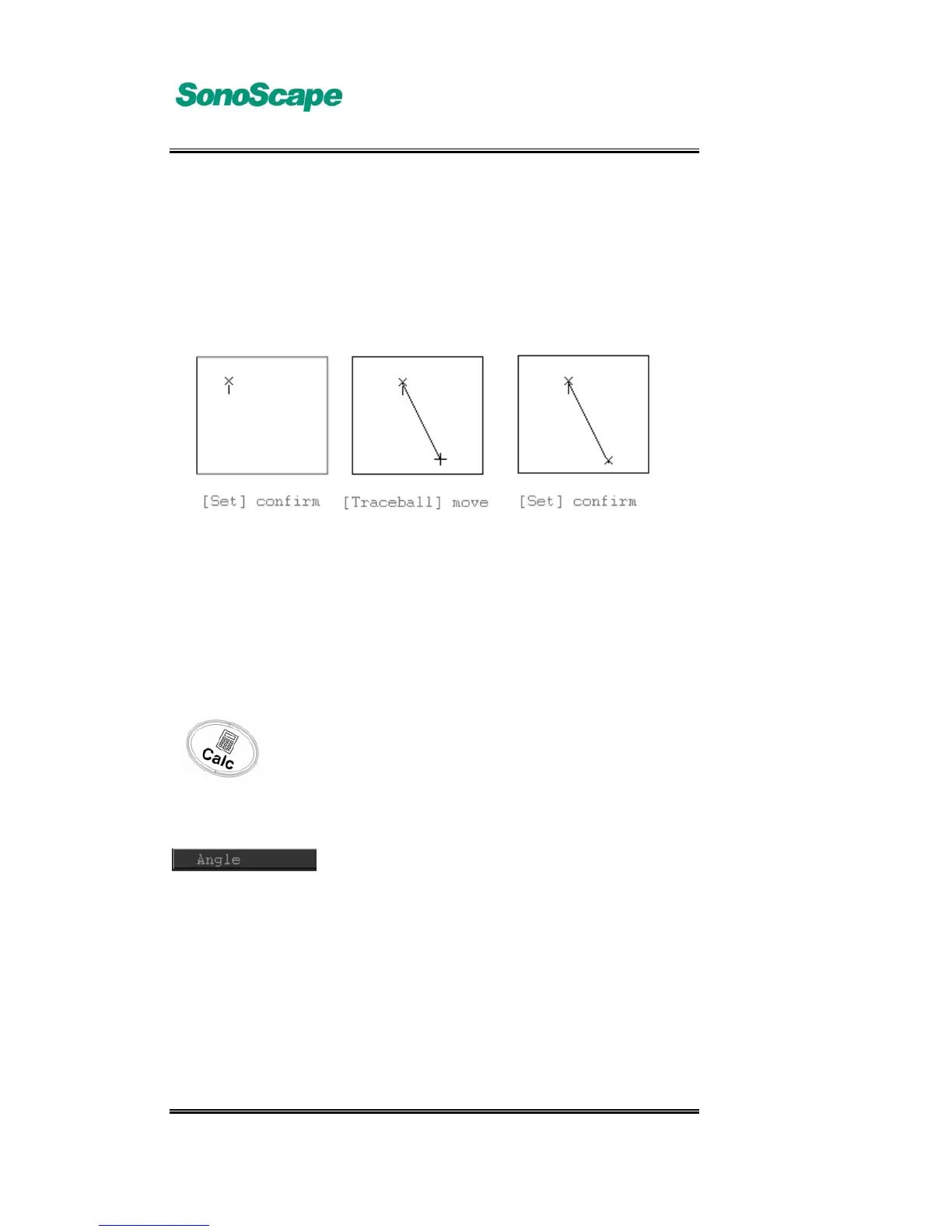

3.6.1.2 Angle measurement
Function: To measure the inclination angle between 2 straight lines
(0~180°).
Measurement method:
↓
4. Use the trackball to shift the cursor “+” to the measured
end point, press the 【SET】key, on the measurement
end point it displays the fix mark “X”, the measurement
result is fixed, and it ends the measurement.
5. Repeat steps 2~4 to go to the next Distance
Measurement.
1. In B mode frozen state, press the 【Calc】key
to pop up the Meas & Calc menu, move the
trackball, use the cursor to select “Angle”,
press the 【SET】key to go to angle
measurement mode.
2. Draw a section along one side of the
measurement angle. See “Distance
Measurement” for the measurement method.
3. Draw a section along the other side of the
measurement angle. See “Distance
Measurement” for the measurement method.
The inclination between the two sections and
the length of the sections are displayed in the
result window.
4. Repeat steps 2 to 3 to perform the next
measurement.
