“Memory Stick” operations
S VIDEO LANC
DV
S VIDEO
VIDEO
OUT
S VIDEO
Recording an image from a mini DV tape as a still image
Recording a still image from other equipment
(1) Set the POWER switch to VTR.
(2) Play back the recorded tape, or turn the TV on to see the desired program.
(3) Follow the steps 3 and 4 on page 96.

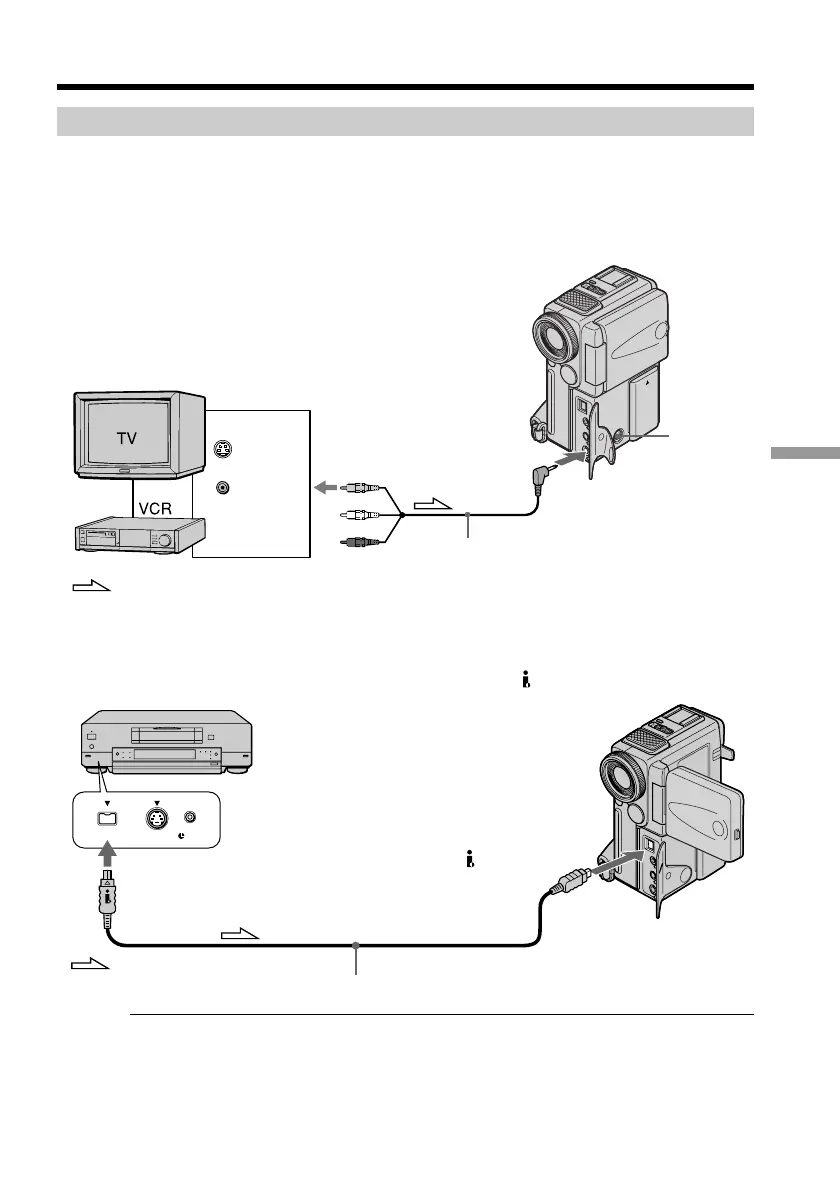

When recording the image through the AUDIO/VIDEO jack
Connect the yellow plug of the A/V connecting cable to the video jack on the VCR or
the TV.
When recording the image through the DV IN/OUT jack
Connect using an S video cable (not supplied) to obtain high-quality pictures
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (not supplied) to the S (S1) video jacks of both your camcorder
and the VCR/TV.
This connection produces higher quality DV format pictures.
: Signal flow
A/V connecting cable
AUDIO/VIDEO jack
: Signal flow
VMC-IL4435/2DV/4DV i.LINK cable (not supplied)
DV OUT
DV IN/OUT
