Sony Handycam HDR-FX1 User Manual

Quick Reference
100
Quick Reference

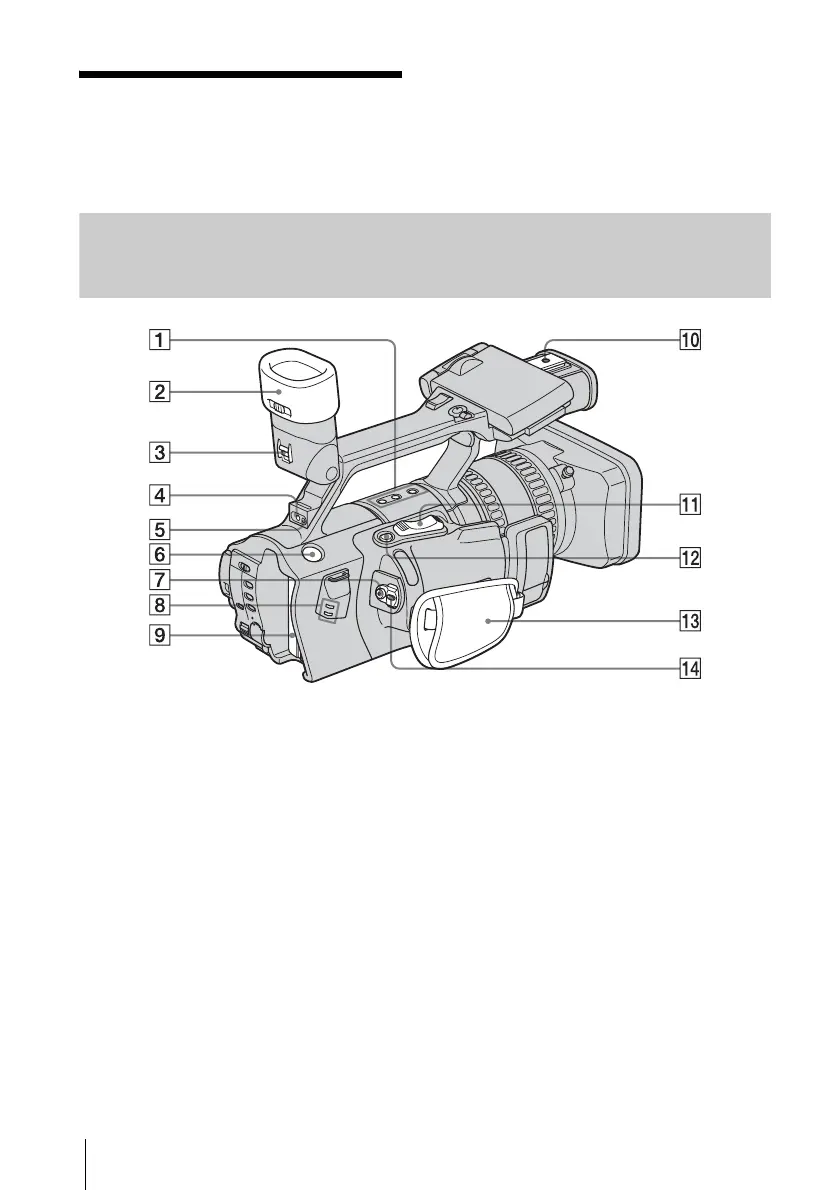

Identifying parts and
controls
Camcorder
A SHOT TRANSITION operation buttons
(p. 37)
B Eyecup (p. 16)
C Viewfinder release lever (p. 97)
D Rear remote sensor
E Rear camera recording lamp (p. 20)
F BATT RELEASE (battery release)
button (p. 12)
G REC START/STOP button (p. 20)
H i.LINK lamps (HDV/DV) (p. 73)
Lights up when handling an i.LINK signal.
I Battery pack (p. 11)
J Shoe adaptor attaching part (p. 104)
K Power zoom lever (p. 22)
L EXPANDED FOCUS button (p. 32)
M Grip belt (p. 4)
N POWER switch (p. 14)

Sony Handycam HDR-FX1 Specifications

Imaging

imaging device	3- 1/3" 16:9 Advanced HAD™ CCD
pixel gross	1120K
video actual	1070K Pixels

Audio

dolby digital output	MPEG1 Audio Layer 2-Stereo (HDV), PCM (DV)
recording format	Stereo
microphone	Yes (Built-in)

Optics and Lens

35mm equivalent	32.5-390mm (Camera Mode), 40-480mm (4:3 TV Mode)
aperture	f1.6-f2.8
focal distance	4.5-54.0mm

Power

power consumption	7.4W/8.0W/8.4W (VF/LCD/VF LCD)
battery type	InfoLITHIUM® with AccuPower™ Meter System (NP-F570)
power requirements	7.2V (battery pack); 8.4V (AC Adaptor)

Weight and Dimensions

weight	4 lbs, 6.5 oz (2000g) main unit only; 4 lbs, 10 1/8 oz (2.1 kg) including the NP-F570 rechargeable battery pack, DVM60 cassette and lens hood
measurements	5 15/16" x 7 1/8" x 14 3/8" (151 x 181 x 365mm)
lcd	3.5" (250K Pixels Wide Precision Hybrid SwivelScreen™ LCD Display)
