Getting started
18

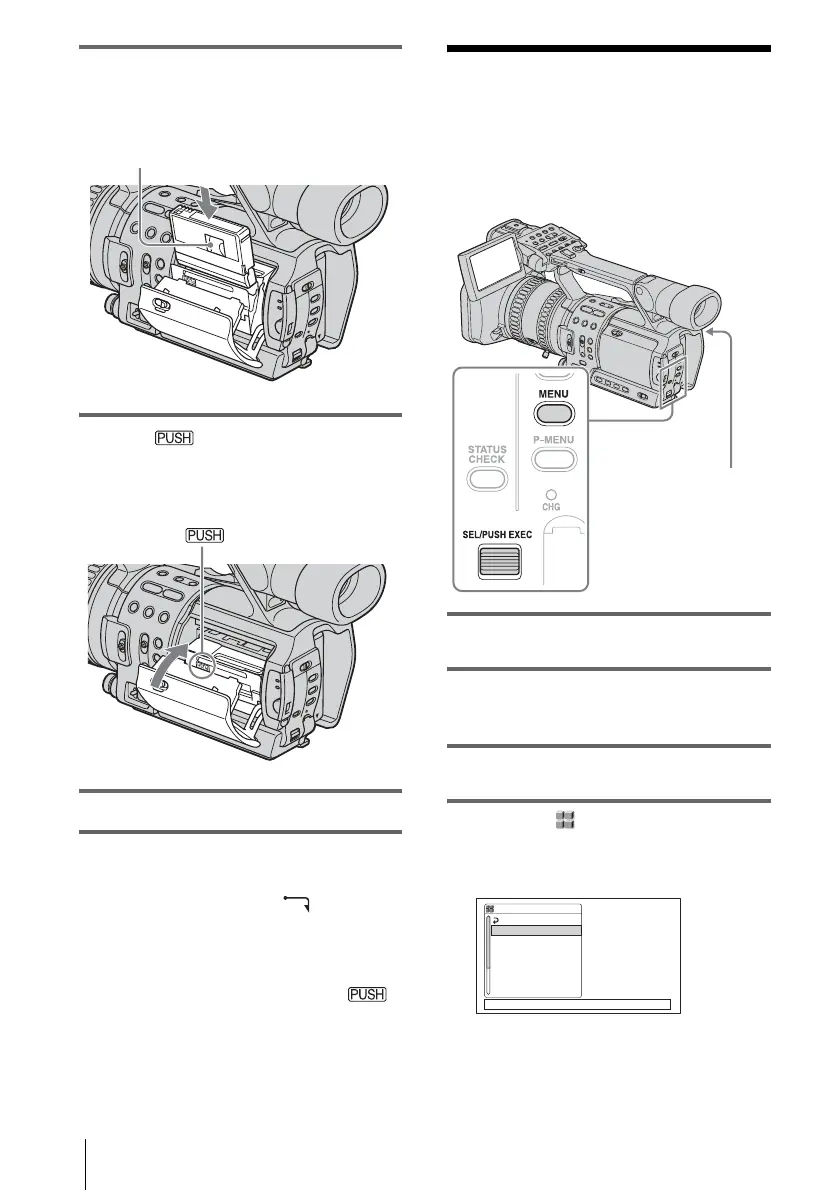

2 Insert a cassette with its window-side
facing out.
3 Press on the cassette
compartment.
The cassette compartment automatically
slides back in.
4 Close the lid.
To eject the cassette
1
Slide the OPEN/EJECT lever in the
direction of the arrow and open the lid.
The cassette compartment automatically
comes out.
2 Take out the cassette, then press .
The cassette compartment automatically
slides back in.
3 Close the lid.
Step 7: Setting the
screen language
You can select the language to be used on the
LCD screen.
1 Turn on your camcorder.
2 Open the LCD panel and adjust the
angle.
3 Press MENU.
4 Select the (OTHERS) menu by
turning the SEL/PUSH EXEC dial,
then press the dial.
Window-side
Push the center of the back
of the cassette lightly.
POWER switch
OTHERS STBY
RETURN
ASSIGN BTN
CLOCK SET
WORLD TIME
LANGUAGE
BEEP
REC LAMP
FORMAT LAMP
[
MENU
]
:END

Sony Handycam HDR-FX1 Specifications

Imaging

imaging device	3- 1/3" 16:9 Advanced HAD™ CCD
pixel gross	1120K
video actual	1070K Pixels

Audio

dolby digital output	MPEG1 Audio Layer 2-Stereo (HDV), PCM (DV)
recording format	Stereo
microphone	Yes (Built-in)

Optics and Lens

35mm equivalent	32.5-390mm (Camera Mode), 40-480mm (4:3 TV Mode)
aperture	f1.6-f2.8
focal distance	4.5-54.0mm

Power

power consumption	7.4W/8.0W/8.4W (VF/LCD/VF LCD)
battery type	InfoLITHIUM® with AccuPower™ Meter System (NP-F570)
power requirements	7.2V (battery pack); 8.4V (AC Adaptor)

Weight and Dimensions

weight	4 lbs, 6.5 oz (2000g) main unit only; 4 lbs, 10 1/8 oz (2.1 kg) including the NP-F570 rechargeable battery pack, DVM60 cassette and lens hood
measurements	5 15/16" x 7 1/8" x 14 3/8" (151 x 181 x 365mm)
lcd	3.5" (250K Pixels Wide Precision Hybrid SwivelScreen™ LCD Display)
