Sony Handycam HDR-FX1 User Manual

Playback
46

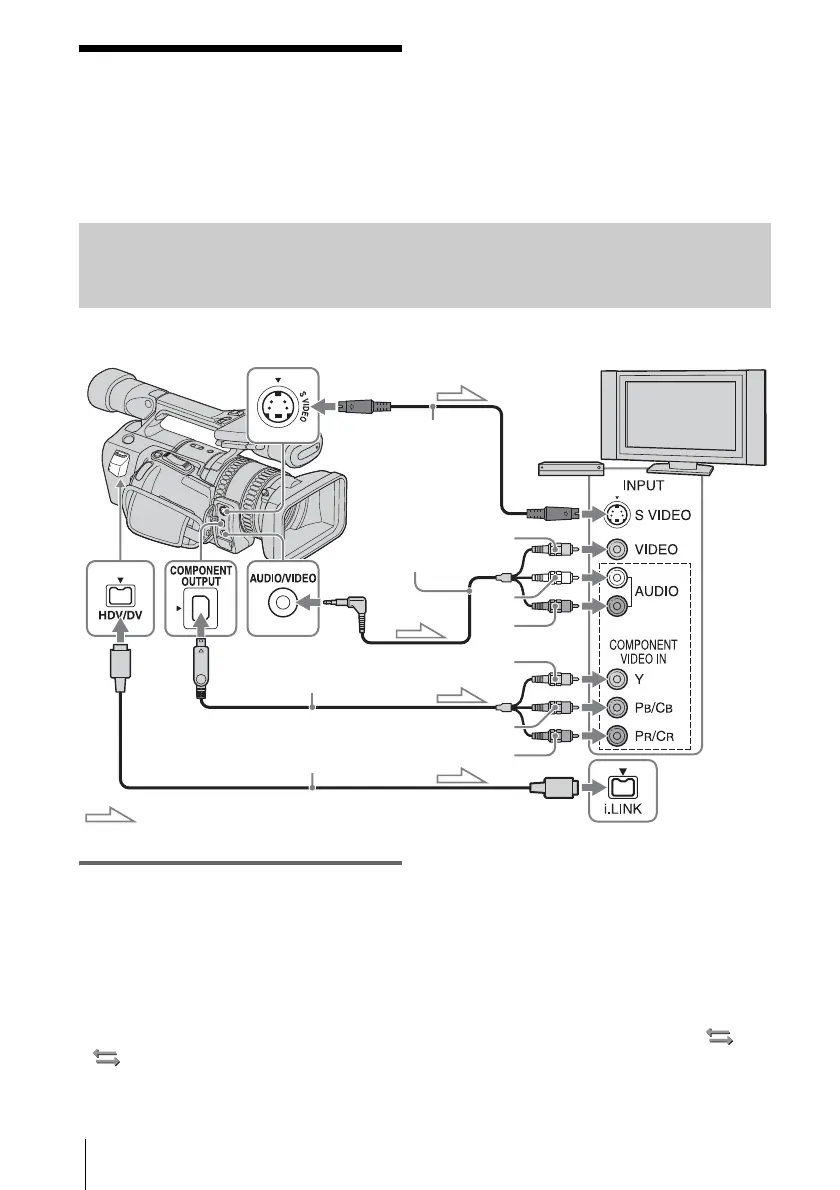

Playing the picture on
a TV
TV connections differ depending on the type
of TV.
Connect the supplied AC Adaptor to the wall
outlet for the power supply (p. 14).
Refer also to the instruction manuals supplied
with the devices to be connected.
To copy to another tape, see page 70.
Viewing the picture on a high definition TV
Connect your camcorder and your TV
using either cables described below.
To connect the TV using an i.LINK cable
This connection is recommended when your TV
is compatible with HDV/DV and has an i.LINK
jack.
• Before connecting the i.LINK cable, select the
(IN/OUT REC) menu, [VCR HDV/DV],
then [AUTO] (the default setting).
• In case of this connection, the TV needs to be
set so that it recognizes that the camcorder is
connected. Refer to the operating manual
supplied with the TV for the details.
To connect the TV using the component
video cable
• To view the picture recorded in the HDV
format, set [COMPONENT] on the (IN/
OUT REC) menu according to your TV
(p. 60). When the picture recorded in the DV
Signal flow
A/V connecting
cable (supplied)
Yellow
White
Red
S video cable
(optional)
TV
Component video cable (supplied)
i.LINK cable (optional)
When you have an S video jack
on your TV or VCR
Red
Blue
Green

Sony Handycam HDR-FX1 Specifications

Imaging

imaging device	3- 1/3" 16:9 Advanced HAD™ CCD
pixel gross	1120K
video actual	1070K Pixels

Audio

dolby digital output	MPEG1 Audio Layer 2-Stereo (HDV), PCM (DV)
recording format	Stereo
microphone	Yes (Built-in)

Optics and Lens

35mm equivalent	32.5-390mm (Camera Mode), 40-480mm (4:3 TV Mode)
aperture	f1.6-f2.8
focal distance	4.5-54.0mm

Power

power consumption	7.4W/8.0W/8.4W (VF/LCD/VF LCD)
battery type	InfoLITHIUM® with AccuPower™ Meter System (NP-F570)
power requirements	7.2V (battery pack); 8.4V (AC Adaptor)

Weight and Dimensions

weight	4 lbs, 6.5 oz (2000g) main unit only; 4 lbs, 10 1/8 oz (2.1 kg) including the NP-F570 rechargeable battery pack, DVM60 cassette and lens hood
measurements	5 15/16" x 7 1/8" x 14 3/8" (151 x 181 x 365mm)
lcd	3.5" (250K Pixels Wide Precision Hybrid SwivelScreen™ LCD Display)
