Sony Handycam HDR-FX1 User Manual

Getting started
Getting started
11
Step 2: Charging the
battery pack

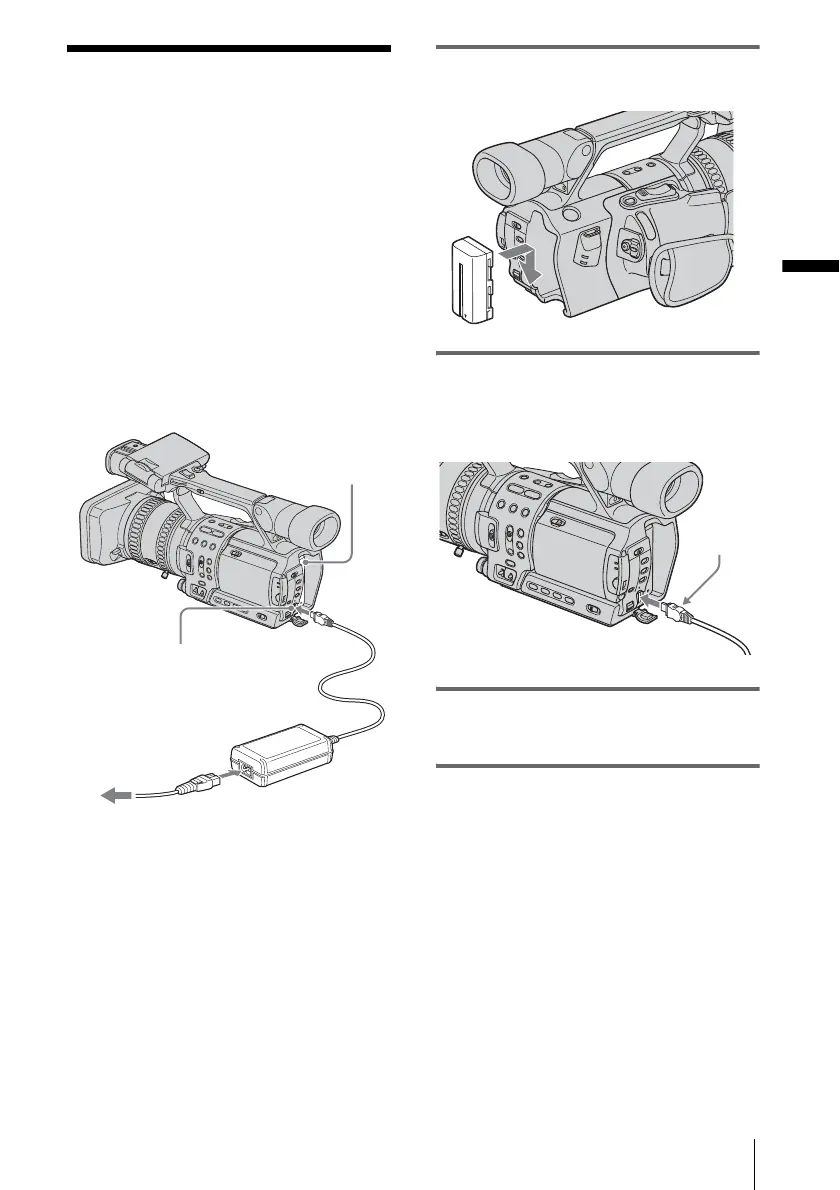

You can charge the battery by attaching the
“InfoLITHIUM” battery pack (L series) to
your camcorder.
b Note
• You cannot use batteries other than the
“InfoLITHIUM” battery pack (L series) (p. 92).
• Do not short-circuit the DC plug of the AC Adaptor
with any metallic objects. This may cause a
malfunction.
• Use a nearby wall outlet when using the AC
Adaptor. Disconnect the AC Adaptor from the wall
outlet immediately if any malfunction occurs.
1 Press the battery pack and slide it
down.
2 With the b mark on the DC plug
facing the battery pack, connect the
AC Adaptor to the DC IN jack on your
camcorder.
3 Connect the power cord to the AC
Adaptor.
4 Connect the power cord to the wall
outlet.
To the wall outlet
DC plug
DC IN jack
Power cord
AC Adaptor
Battery pack
b mark
,continued

Sony Handycam HDR-FX1 Specifications

Imaging

imaging device	3- 1/3" 16:9 Advanced HAD™ CCD
pixel gross	1120K
video actual	1070K Pixels

Audio

dolby digital output	MPEG1 Audio Layer 2-Stereo (HDV), PCM (DV)
recording format	Stereo
microphone	Yes (Built-in)

Optics and Lens

35mm equivalent	32.5-390mm (Camera Mode), 40-480mm (4:3 TV Mode)
aperture	f1.6-f2.8
focal distance	4.5-54.0mm

Power

power consumption	7.4W/8.0W/8.4W (VF/LCD/VF LCD)
battery type	InfoLITHIUM® with AccuPower™ Meter System (NP-F570)
power requirements	7.2V (battery pack); 8.4V (AC Adaptor)

Weight and Dimensions

weight	4 lbs, 6.5 oz (2000g) main unit only; 4 lbs, 10 1/8 oz (2.1 kg) including the NP-F570 rechargeable battery pack, DVM60 cassette and lens hood
measurements	5 15/16" x 7 1/8" x 14 3/8" (151 x 181 x 365mm)
lcd	3.5" (250K Pixels Wide Precision Hybrid SwivelScreen™ LCD Display)
