Sony Handycam HDR-FX1 User Manual

Quick Reference
106

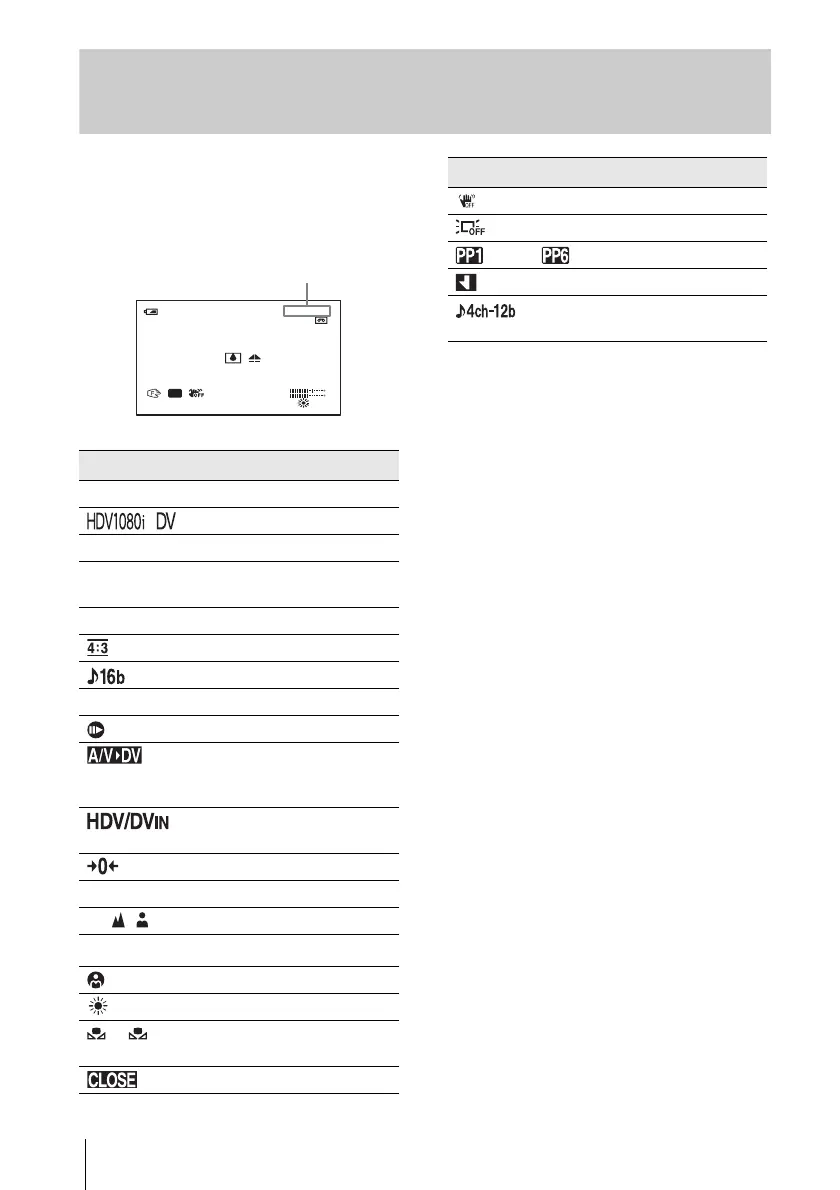

Indicators for the LCD screen and viewfinder
Following indicators will appear on the LCD
screen and viewfinder to indicate the state of
your camcorder.
* Appears only for the pictures in the DV format.
Indicators Meanings
y120min Remaining battery (p. 21)
, Recording format (p. 20)
SP , LP Recording mode (p. 22)
STBY/REC Recording standby/
recording mode
ND
1
, ND
2
, ND
OFF
ND filter (p. 30)
4:3 standard mode (p. 40)
Audio mode (p. 56)*
60min q Remaining tape (p. 21)
Frame recording (p. 55)*
Output analog images and
sound in digital format
(p. 61)*
HDV input/DV input
(p. 76)
Zero set memory (p. 49)
Q Z Warning (p. 88)
9 Manual focus (p. 32)
.
Backlight (p. 25)
Spot light (p. 25)
n Preset white balance (p. 26)
A, B One-push white balance
(p. 26)
Iris closed (p. 28)
L
ND
1
R
F1.6 18 dB 180
HDV1080i
0:00:00120min
60min
PP1
STBY
Example: Indicators in the CAMERA mode
Time code (p. 44)/Tape counter (p. 44)/
Self-diagnosis (p. 88)
SteadyShot off (p. 54, 68)
LCD backlight off (p. 16)
through Picture Profile (p. 34)
Index recording (p. 39)
4-channel microphone
recording standard (p. 87)*
Indicators Meanings

Sony Handycam HDR-FX1 Specifications

Imaging

imaging device	3- 1/3" 16:9 Advanced HAD™ CCD
pixel gross	1120K
video actual	1070K Pixels

Audio

dolby digital output	MPEG1 Audio Layer 2-Stereo (HDV), PCM (DV)
recording format	Stereo
microphone	Yes (Built-in)

Optics and Lens

35mm equivalent	32.5-390mm (Camera Mode), 40-480mm (4:3 TV Mode)
aperture	f1.6-f2.8
focal distance	4.5-54.0mm

Power

power consumption	7.4W/8.0W/8.4W (VF/LCD/VF LCD)
battery type	InfoLITHIUM® with AccuPower™ Meter System (NP-F570)
power requirements	7.2V (battery pack); 8.4V (AC Adaptor)

Weight and Dimensions

weight	4 lbs, 6.5 oz (2000g) main unit only; 4 lbs, 10 1/8 oz (2.1 kg) including the NP-F570 rechargeable battery pack, DVM60 cassette and lens hood
measurements	5 15/16" x 7 1/8" x 14 3/8" (151 x 181 x 365mm)
lcd	3.5" (250K Pixels Wide Precision Hybrid SwivelScreen™ LCD Display)
