Identifying parts (continued)
52
US

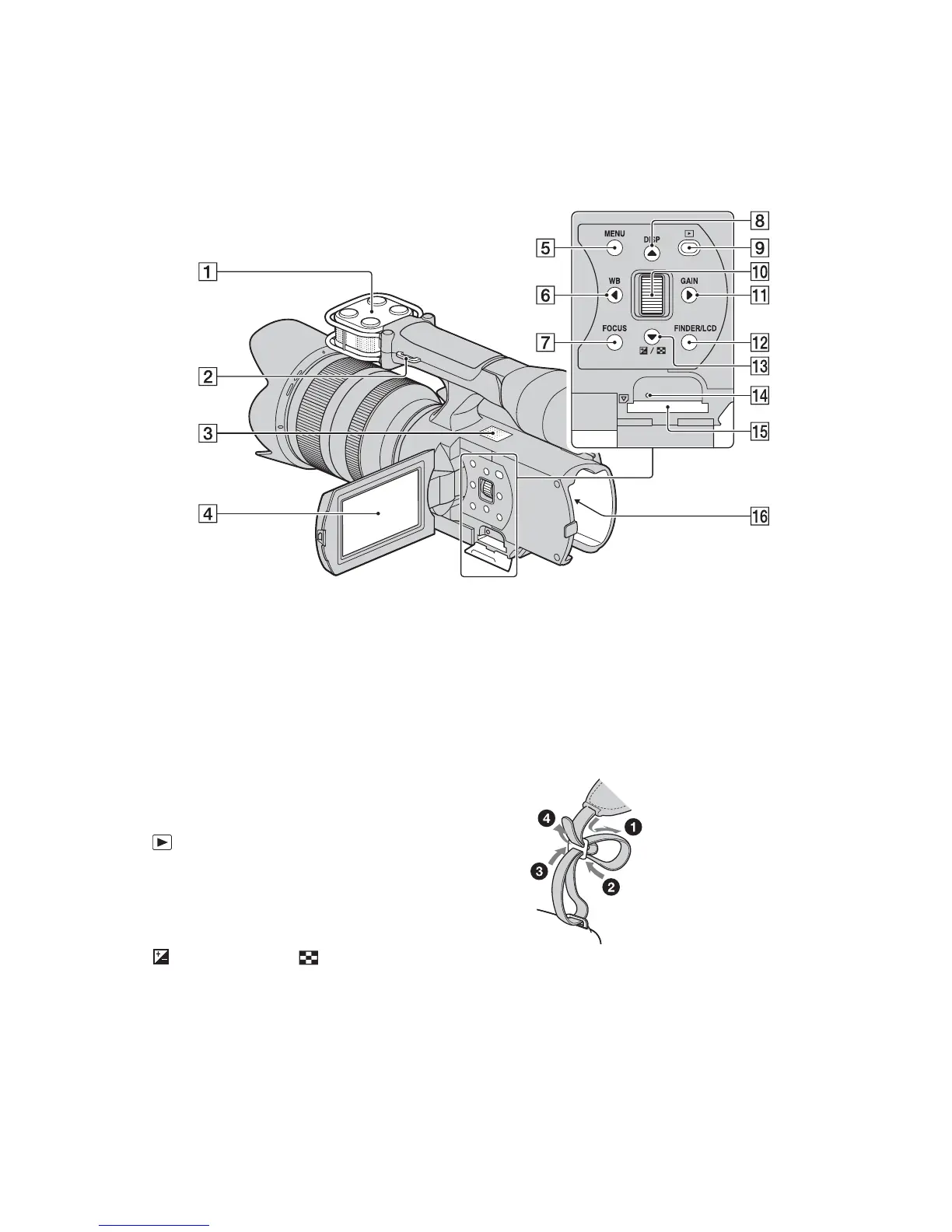

A Microphone (17)
B Hook for shoulder strap
C Speaker
D LCD monitor (25)
E MENU button (29, 47)
F WB/b button (30, 47)
G FOCUS button (30)
H DISP/v button (29, 47)
I (Playback) button (33)
J Control dial (31, 47)
K GAIN/B button (30, 47)
L FINDER/LCD button (25)
M (Exposure Comp.)/ (Image Index)/
V button (30, 47)
N Access lamp (26)
O Memory card slot (26)
P Battery terminal (19)
To attach a shoulder strap
Attach a shoulder strap (sold separately) to the
hooks for shoulder strap.

Sony Handycam NEX-VG10 Specifications

Optics and Lens

filter diameter	67 mm
focal length (photo)	27 mm-300 mm
focal length (video)	32.4 mm-360 mm
minimum focus distance	1 ft (wide end) - 1.6 ft (tele end)
angle of view	76°
maximum aperture (wide end)	F3.5
maximum aperture (tele end)	F6.3
minimum aperture (wide end)	F22
minimum aperture (tele end)	F40
lens weight	18.5 oz

LCD Display

lcd type	3.0" Xtra Fine LCD, 180° swivel
angle adjustment	Opening: 90°, Turning: 180°
brightness control	Manual (5 steps)

Imaging Sensor

effective picture resolution	14.2 megapixels
imaging sensor size	23.4 x 15.6 mm
pixel gross	14.6 megapixels

Power

battery type	Type V Battery
supplied battery	InfoLITHIUM NP-FV70
battery charger	AC-PW10AM

Weight and Dimensions

weight (body only)	620 g
weight (with battery, lens, and media)	1.3 kg
dimensions (W x H x D)	97 x 132 x 294 mm
