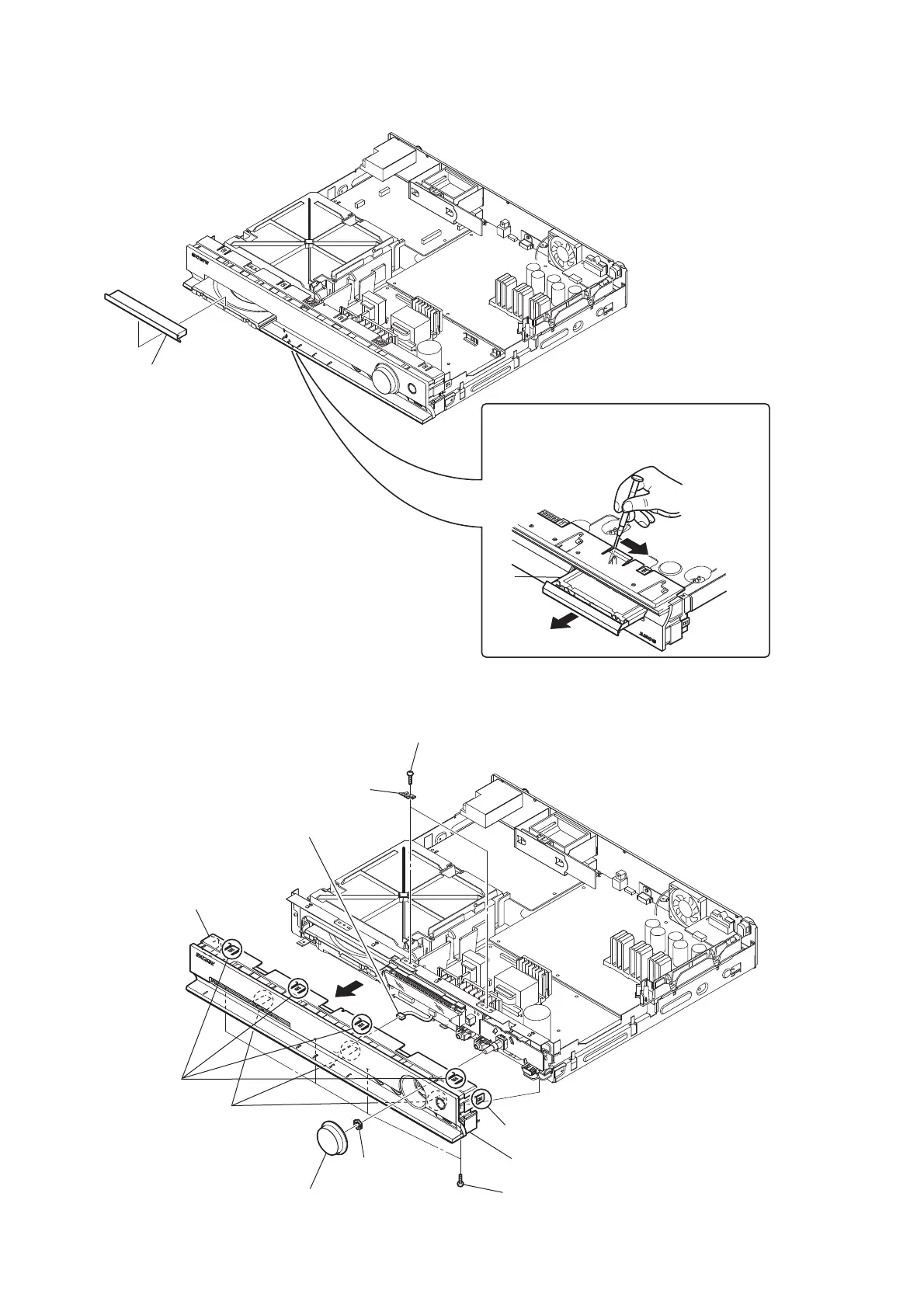

3 loading panel
tray
1
2
Insert a screwdriver from between the front panel
and the chassis and slide the rod in the direction
of the arrow.
2-2. LOADING PANEL
2-3. FRONT PANEL SECTION
1 two screws
(+BV3 (3-CR))
5 four screws
(+BV3 (3-CR))
6 four claws
9 three claws
7 claw
8 claw
0
2 two ground plate (front)
3 knob vol (DSZ)
4 nut
qa CN5202 (4P)
qs front panel section
