HBD-DZ170/DZ171/DZ175/DZ310/DZ510/DZ610/DZ810
9
Note: Follow the disassembly procedure in the numerical order given.

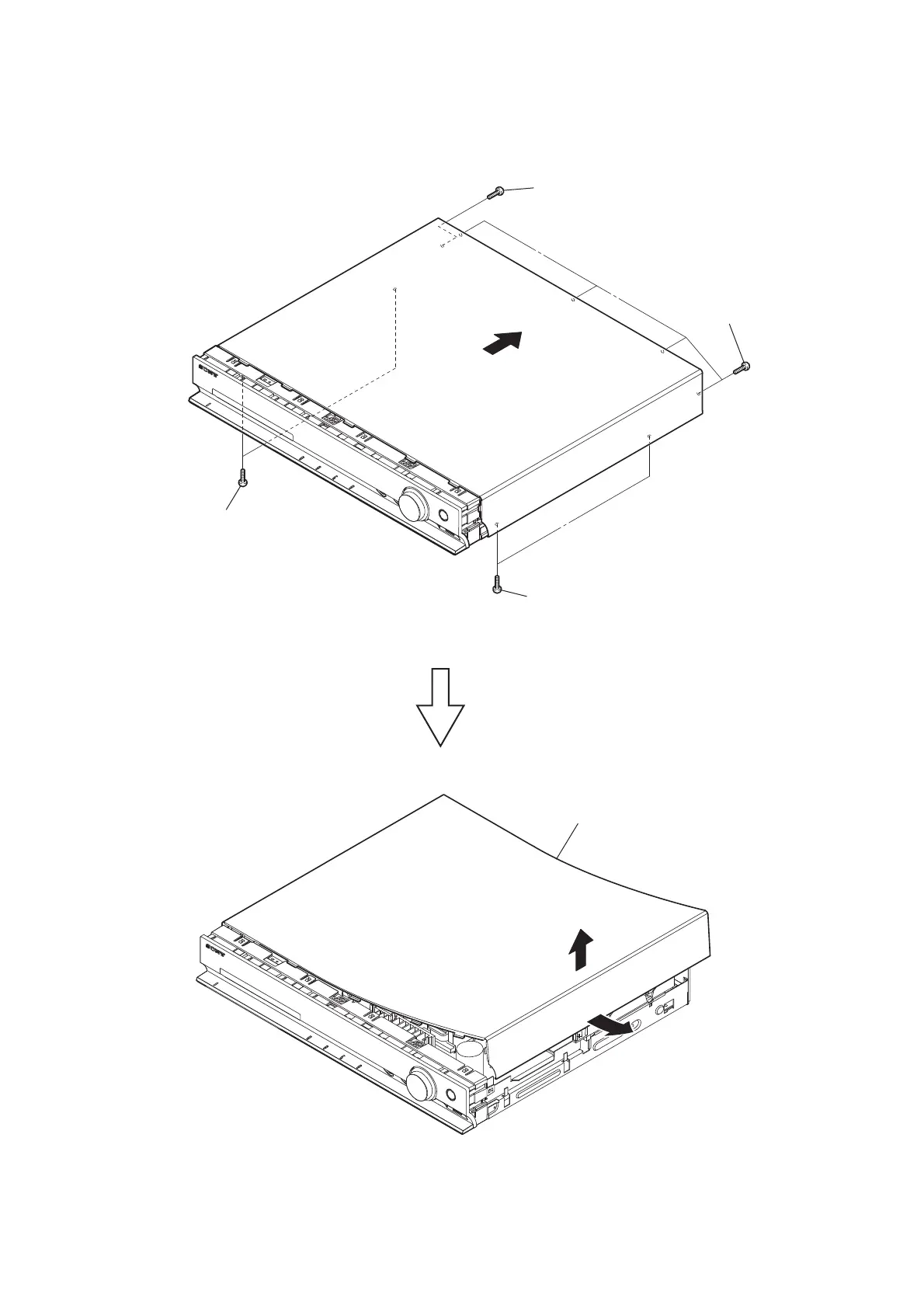

2-1. CASE
8 case
6 Raise one side of the case.
1 two screws
(+BV3 (3-CR))
2 two screws
(+BV3 (3-CR))
3 four screws
(+BV3 (3-CR))
4 screw
(+BV3 (3-CR))
5
7
