69
HBD-DZ170/DZ171/DZ175/DZ310/DZ510/DZ610/DZ810
2
4
2
2
2
3
3
1
5
6
front panel section
not supplied
not supplied
front boards section
supplied with
S5002
SECTION 6
EXPLODED VIEWS
1 4-159-516-11 CASE (DSZ)
2 3-077-331-21 +BV3 (3-CR)
3 3-077-331-11 +BV3 (3-CR)
4 4-159-500-01 KNOB, VOL (DSZ)
5 4-159-492-01 PANEL, LOADING
6 4-159-493-01 BASE, LOADING
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
CND : Canadian model
E3 : 240V AC area in E model
E12 : 220 – 240V AC area in E model
E15 : Iranian model
E32 : 110 – 240V AC area in E model
EA : Saudi Arabia model
SP : Singapore model

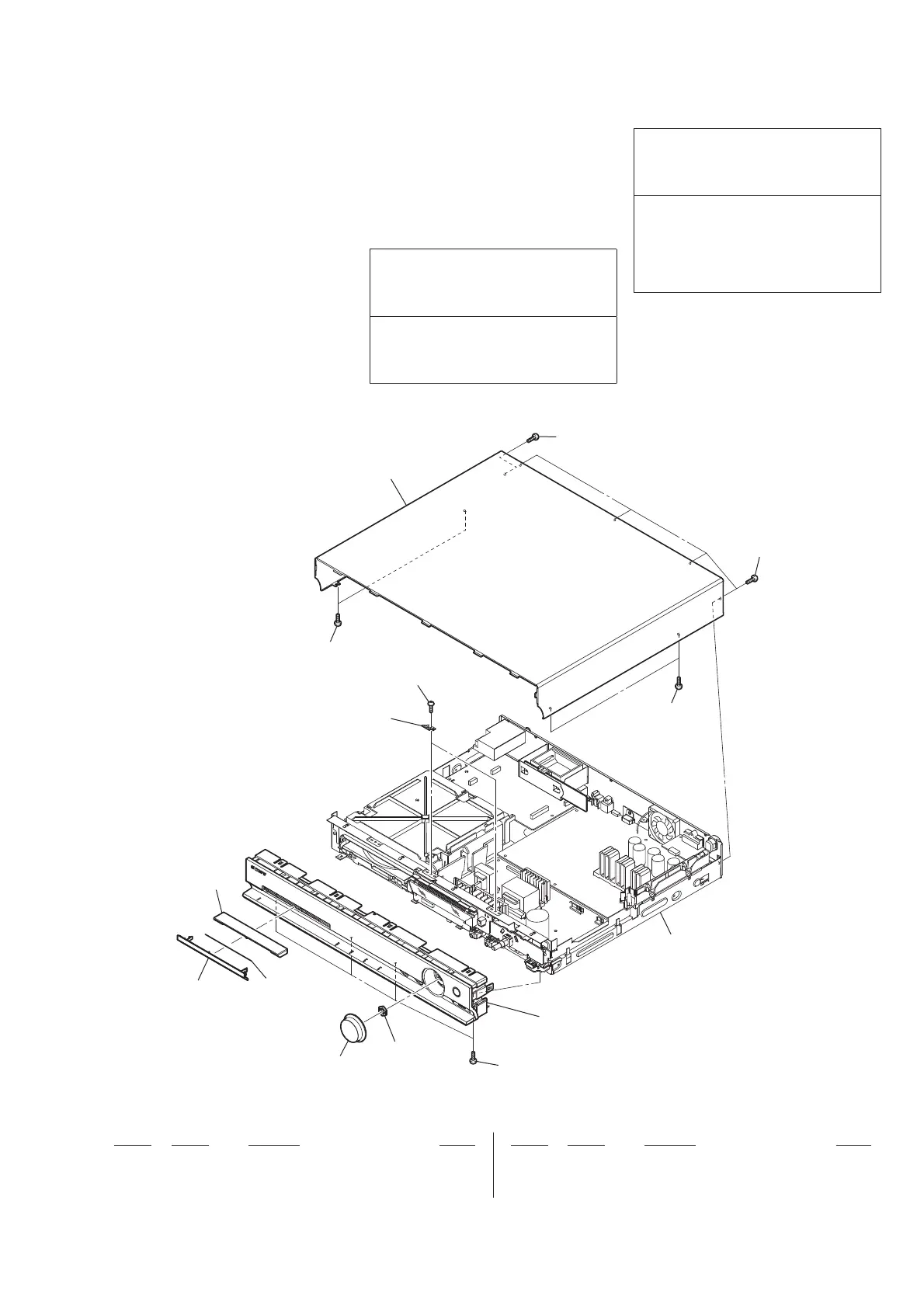

6-1. OVERALL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
