HBD-DZ170/DZ171/DZ175/DZ310/DZ510/DZ610/DZ810
15

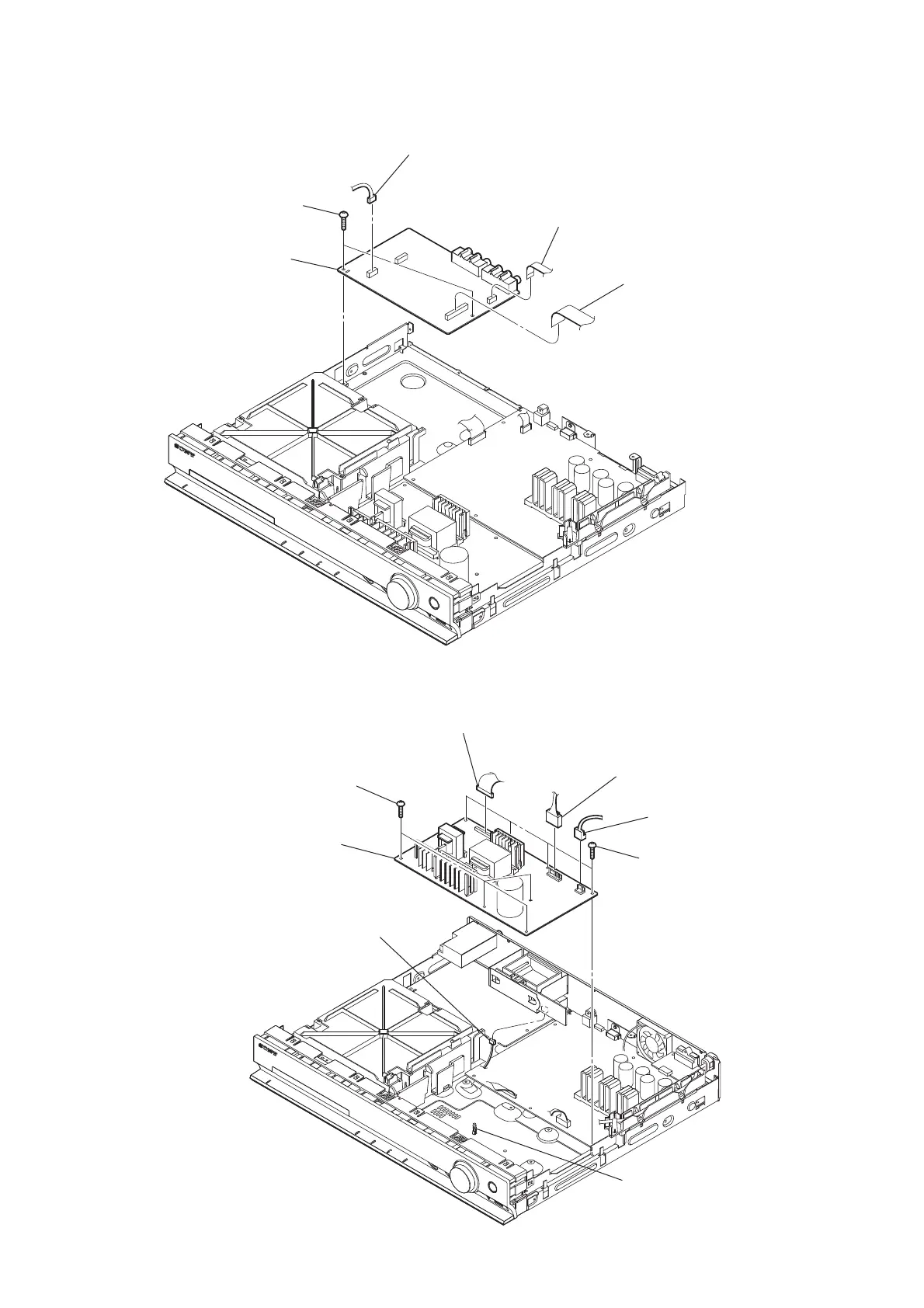

2-9. IO BOARD
2-10. POWER BOARD
2 wire (flat type) (9 core) (CN4002)
3 wire (flat type) (17 core) (CN4004)
(DZ170/DZ171/DZ175)
wire (flat type) (19 core) (CN4005)
(DZ310/DZ510/DZ610/DZ810)
1 CN4007 (4P) (DZ170/DZ171/DZ175)
CN4008 (5P) (DZ310/DZ510/DZ610/DZ810)
4 two screws
(+BV3 (3-CR))
5 IO board
2 CN901 (2P)
1 CN102 (2P) (DZ810)
3 CN904 (5P)
4 CN906 (11P)
8 POWER board
6 four screws
(+BV3 (3-CR))
7 holder PC board
5 four screws
(+BV3 (3-CR))
