HBD-DZ170/DZ171/DZ175/DZ310/DZ510/DZ610/DZ810
13

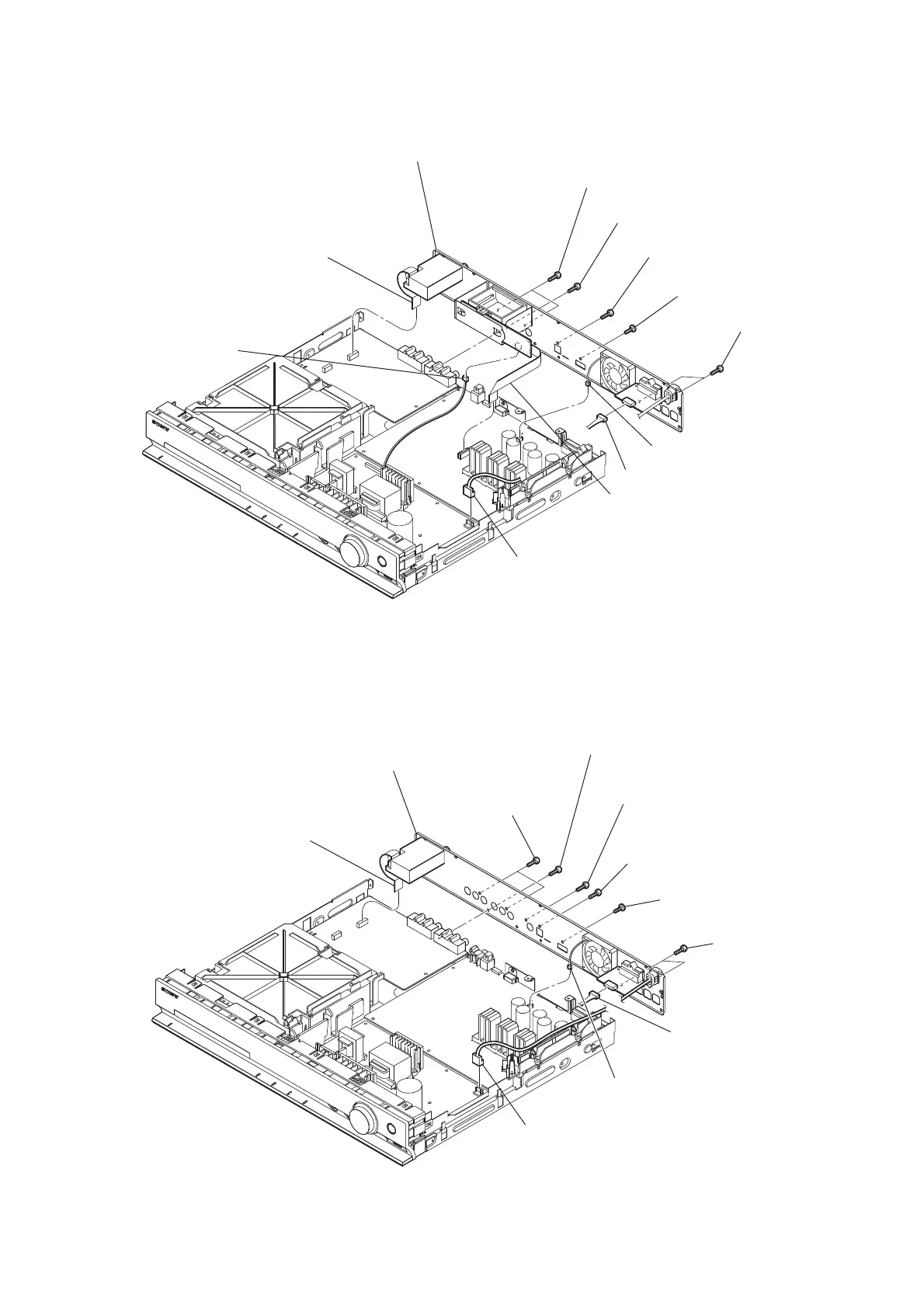

2-6. BACK PANEL SECTION (DZ810)
2-7. BACK PANEL SECTION (EXCEPT DZ810)
0 screw
(+B 3 u6)
4 wire (flat type) (12 core)
(CN306)
5 wire (flat type) (9 core)
(CN4010)
qs back panel section
1 CN901 (2P)
2 CN5401 (4P)
3 CN3000 (2P)
6 CN102 (2P)
7 screw
(+BVTP 3 u8)
9 screw
(+BVTP 3 u8)
8 two screws
(+BVTP 3 u8)
qa two screws
(+BVTP 3 u8)
9 screw
(+B 3 u6)
4 wire (flat type) (9 core)
(CN4010)
qa back panel section
2 CN5401 (4P)
3 CN3000 (2P)
1 CN901 (2P)
5 screw
(+BVTP 3 u8)
8 screw
(+BVTP 3 u8) (EXCEPT DZ310)
7 screw
(+BVTP 3 u8)
(DZ170/DZ171/DZ175)
6 two screws
(+BVTP 3 u8)
0 two screws
(+BVTP 3 u8)
