HBD-DZ170/DZ171/DZ175/DZ310/DZ510/DZ610/DZ810
18

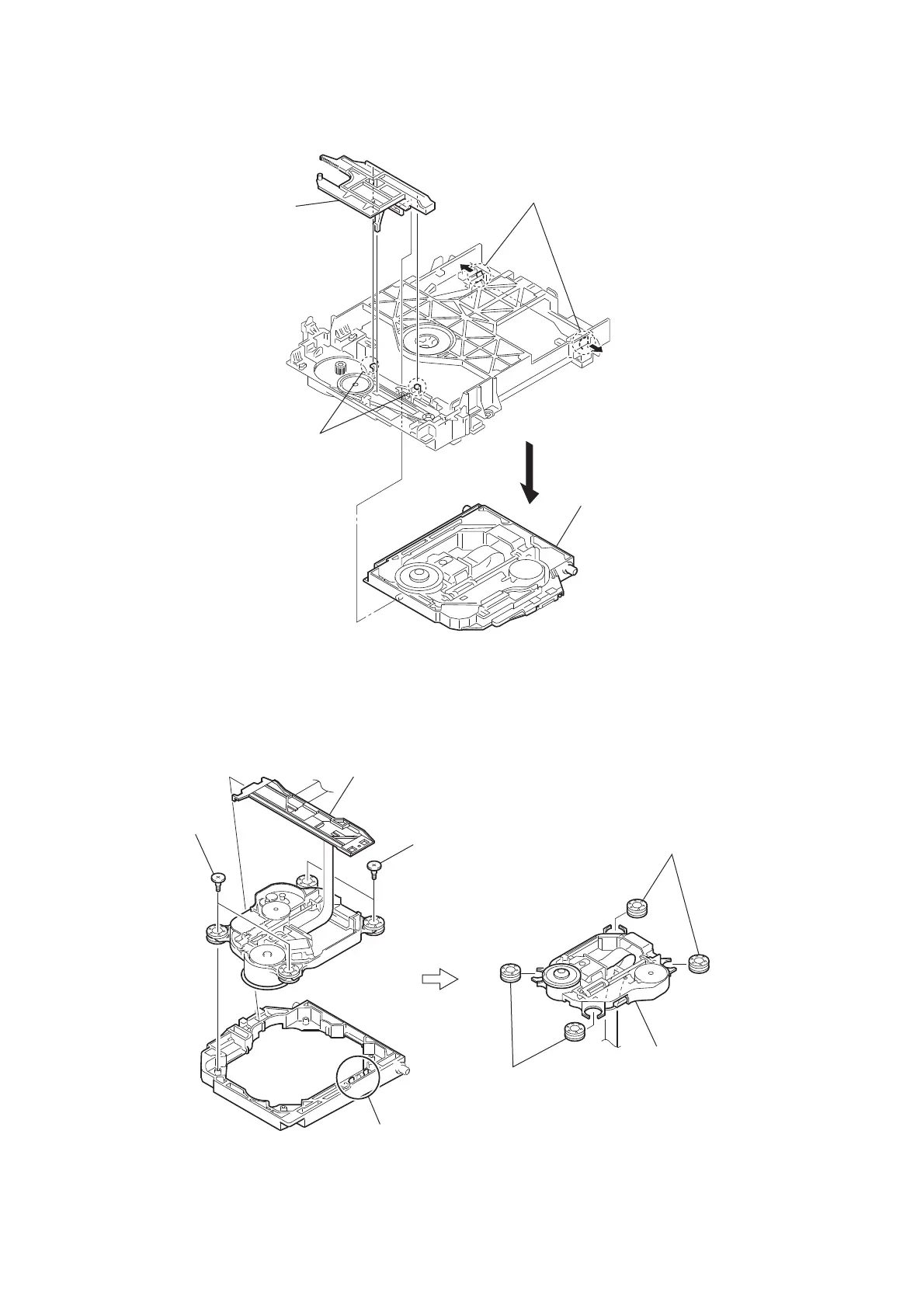

2-15. BASE UNIT
2-16. OPTICAL PICK-UP
2 FFC holder
3 two insulator screws
4 two insulator screws
5 two insulators
6 two insulators
7 optical pick-up
(KHM-313CAA)
1 two claws
1 two claws
3 two claws
2
chuck cam
4 base unit
