Sony HBD-DZ170 User Manual

73
HBD-DZ170/DZ171/DZ175/DZ310/DZ510/DZ610/DZ810
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
US, CND, SP, EA
EXCEPT US, CND, SP, EA
not supplied
CDM85MB-DVBU102
202
202
202
202
202
202
202
202
201
201
203
205
206
207
208
209
F901
204
202
202
202
202
202
not supplied
201 4-151-413-01 CUSHION (EGD)
202 3-077-331-21 +BV3 (3-CR)
203 1-832-538-21 CABLE, FLEXIBLE FLAT (5 CORE)
204 A-1745-461-A POWER BOARD, COMPLETE
(DZ310:E3,E12,SP/DZ510/DZ610)
204 A-1745-463-A POWER BOARD, COMPLETE
(DZ170/DZ171/DZ175)
204 A-1745-467-A POWER BOARD, COMPLETE (DZ310:E32)
204 A-1761-521-A POWER BOARD, COMPLETE
(DZ810:E3,E12,SP,E15,EA)
204 A-1761-527-A POWER BOARD, COMPLETE (DZ810:E32)
205 A-1746-407-A IO BOARD, COMPLETE (DZ310/DZ510)
205 A-1746-494-A IO BOARD, COMPLETE (DZ170/DZ171/DZ175)
205 A-1746-535-A IO BOARD, COMPLETE (DZ610)
205 A-1746-740-A IO BOARD, COMPLETE (DZ810)
206 1-832-553-21 CABLE, FLEXIBLE FLAT (9 CORE)
207 1-832-592-21 CABLE, FLEXIBLE FLAT (17 CORE)
(DZ170/DZ171/DZ175)
207 1-832-602-21 CABLE, FLEXIBLE FLAT (19 CORE)
(DZ310/DZ510/DZ610/DZ810)
9 208 A-1746-794-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ310:E3)
9 208 A-1746-795-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ310:SP)
9 208 A-1746-801-A MAIN BOARD, COMPLETE (for SERVICE) (DZ175)
9 208 A-1746-802-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ170/DZ171)
9 208 A-1746-805-A MAIN BOARD, COMPLETE (for SERVICE) (DZ510)
9 208 A-1746-806-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ610:E3,E15)
9 208 A-1746-807-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ610:SP)
9 208 A-1746-813-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ810:E3,E15)
9 208 A-1746-814-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ810:EA)
9 208 A-1746-815-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ810:SP)
9 208 A-1746-818-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ810:E32)
9 208 A-1758-220-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ310:E12)
9 208 A-1758-231-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ610:E12)
9 208 A-1760-259-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ310:E32)
9 208 A-1760-292-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ810:E12)
209 3-077-331-11 +BV3 (3-CR)
0 F901 1-533-311-12 FUSE, GLASS (DIA. 5) (8A/125V) (US,CND)
0 F901 1-576-232-51 FUSE (H.B.C.) (5A/250V) (E3,E12,SP,E15,EA)
0 F901 1-576-233-51 FUSE (H.B.C.) (6.3A/250V) (E32)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

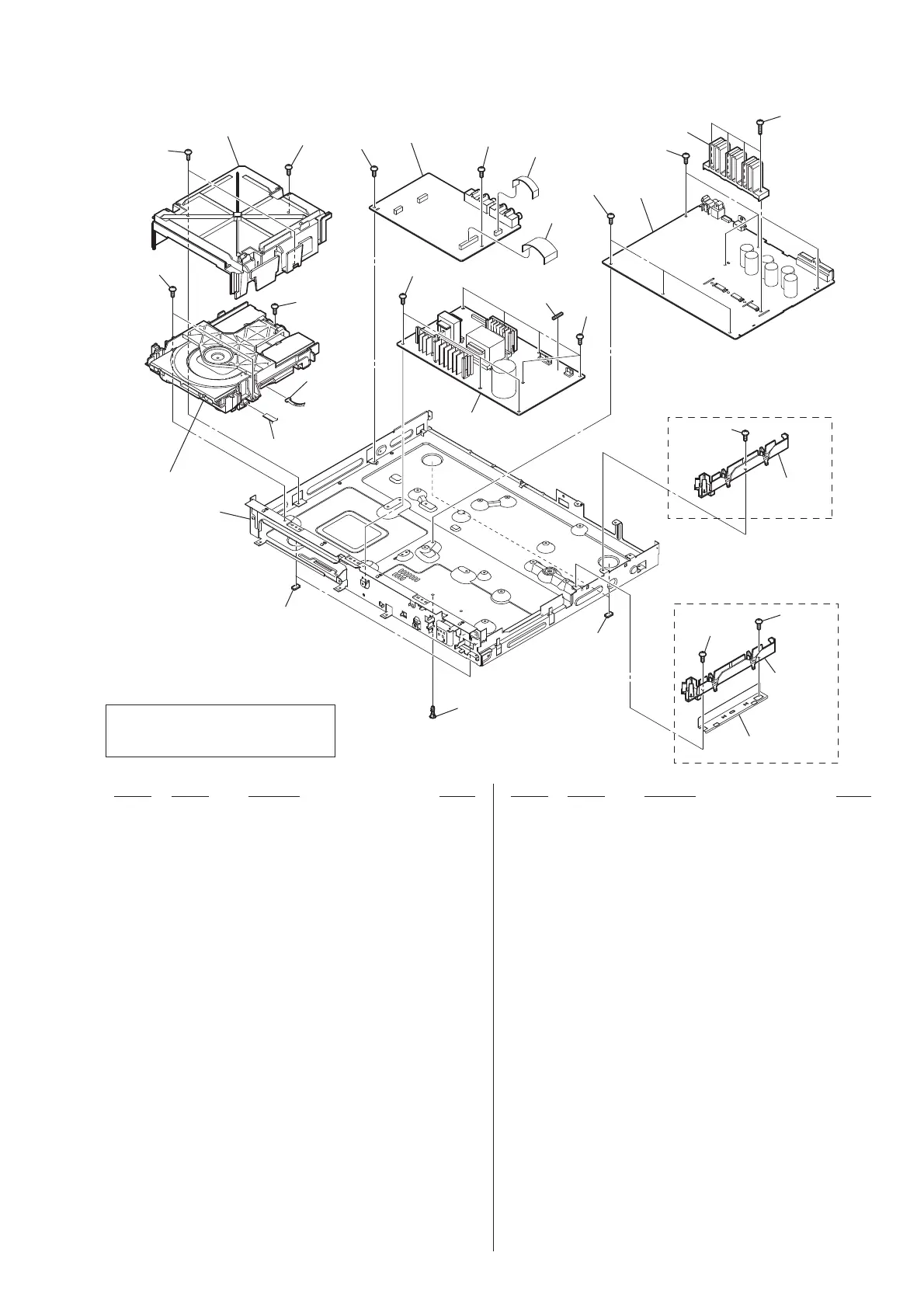

6-5. CHASSIS SECTION
Note: If the wire (fl at type) was replaced,
fold it some as the wire (fl at type)
before replacement.
