HBD-DZ170/DZ171/DZ175/DZ310/DZ510/DZ610/DZ810
23
9-5. CHECK VERSION INFORMATION
To check the version information, please follow the following pro-
cedure.
(1) From the Top Menu of Remocon Diagnosis Menu, select “4.
Version Information” by pressing the [4] button on the remote
commander. The following screen appears on the on-screen
display.
Version information
[O] Return to Top Menu
Firm (Main) : Ver. xxxxx
Firm (Sub) : xxxxx
RISC : xxxxx
8032 : xxxxx
Audio DSP : xxxxx
Servo DSP : xxxxx
Phy,Adr, : F.F.F.F
To return to the Top Menu of Remocon Diagnosis Menu, press
[0] button on the remote commander.
When the optical pick-up assy is replaced, perform the “EXECUT-
ING IOP MEASUREMENT”.
EXECUTING IOP MEASUREMENT (See page 21)
[FM Tune Level Check]
Procedure:
1. Turn the power on.

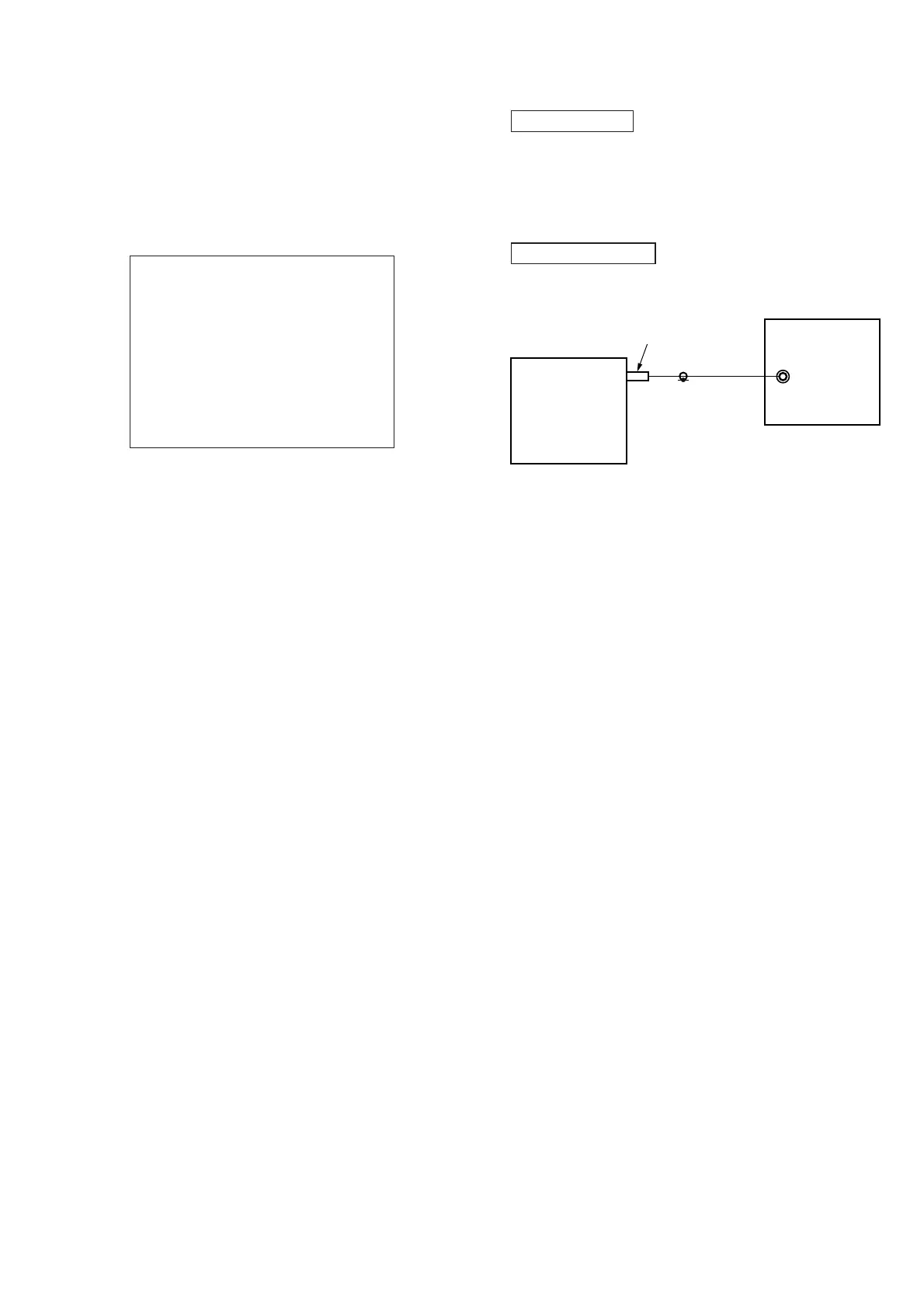

2. Input the following signal from Signal Generator to FM an-
tenna input directly.
* Carrier Freq : A = 87.5 MHz, B = 98 MHz, C = 108 MHz
Deviation : 75 kHz
Modulation : 1 kHz
ANT input : 35 dBu (EMF)
Note: Please use 75 ohm “coaxial cable” to connect SG and the set. You
cannot use video cable for checking.
Please use SG whose output impedance is 75 ohm.
3. Set to FM tuner function and tune A, B and C signals.
4. Confi rm “TUNED” is lit on the display for A, B and C signals.
The mark of “TUNED” means “The selected station signal is re-
ceived in good condition.”
DVD SECTION
TUNER SECTION
generator
OUT (75 :)
SET
FM ANTENNA
SECTION 4
ELECTRICAL ADJUSTMENTS
To Next Page
