72
HBD-DZ170/DZ171/DZ175/DZ310/DZ510/DZ610/DZ810
151 3-077-331-21 +BV3 (3-CR)
152 1-832-576-21 CABLE, FLEXIBLE FLAT (13 CORE) (DZ810)
153 1-832-813-21 CABLE, FLEXIBLE FLAT (9 CORE)
0 154 1-569-008-33 ADAPTOR, CONVERSION (E32)
155 3-703-244-00 BUSHING, CORD (2104)
0 156 1-834-966-41 CORD, POWER-SUPPLY
(DZ310/DZ510/DZ610/DZ810)
0 156 1-837-308-11 CORD, POWER-SUPPLY (DZ170/DZ171/DZ175)
0 157 1-770-019-71 ADAPTOR, CONVERSION PLUG 3P (EA)
FAN3001 1-787-396-21 FAN, DC (50 SQUARE)
TU901 1-693-780-11 TUNER (FM) (DZ310/DZ510/DZ610/DZ810)
TU901 1-693-781-11 TUNER (FM) (DZ170/DZ171/DZ175)
#2 7-682-547-04 SCREW +B 3X6
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

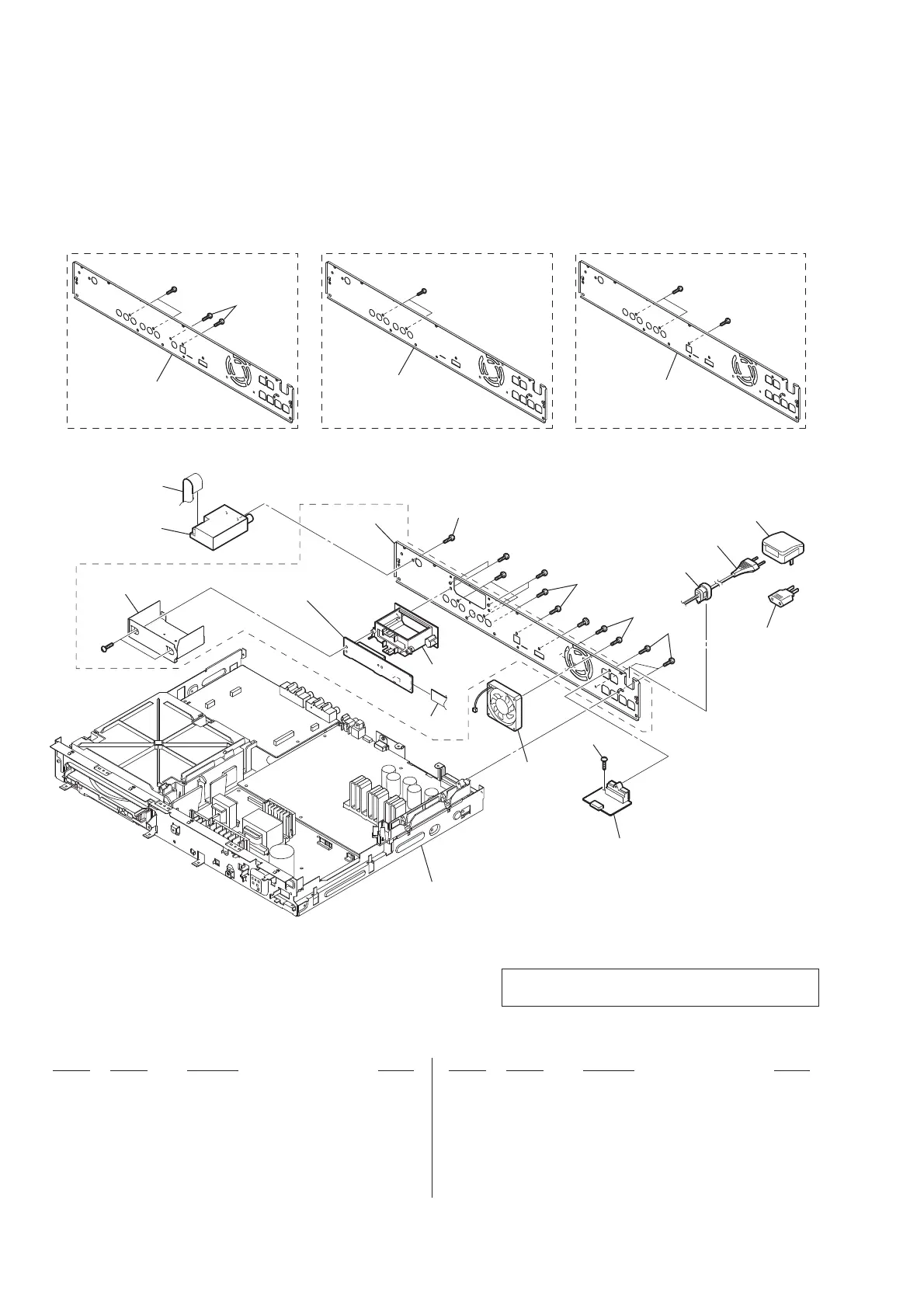

6-4. BACK PANEL SECTION
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
151
151
152
153
157
154
155
156
TU901
FAN3001
#2
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
not supplied
(SPEAKER board)
not supplied
not supplied
DZ810
DZ310DZ170/DZ171/DZ175
DZ510/DZ610
not supplied
(S-AIR CON board)
not supplied
not supplied
not supplied
not supplied
chassis section
To Next Page
