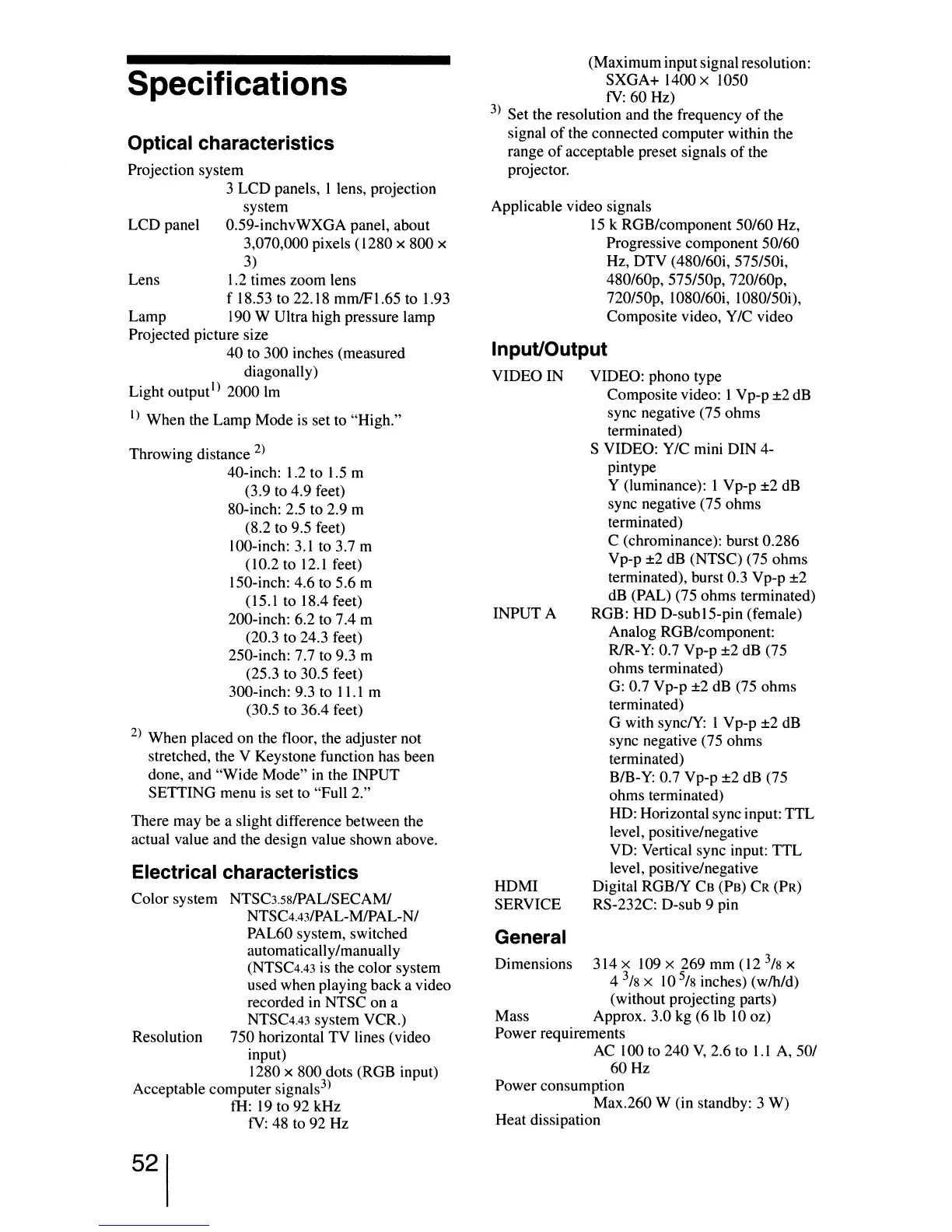

Specifications
Optical characteristics
Projection system
3 LCD panels, I lens, projection
system
LCD panel 0.59-inchvWXGA panel, about
3,070,000 pixels (1280 x 800 x
3)
Lens
1.2
times zoom lens
f 18.53 to 22.18 mmIFI.65 to 1.93
Lamp 190 W Ultra high pressure lamp
Projected picture size
40
to 300 inches (measured
diagonally)
Light output
l
)
2000
1m
I)
When the Lamp Mode is set to "High."
Throwing distance
2)
40-inch: 1.2 to
1.5
m
(3.9 to 4.9 feet)
80-inch: 2.5 to 2.9 m
(8.2 to 9.5 feet)
100-inch:
3.1
to 3.7 m
(10.2 to
12.1
feet)
I50-inch: 4.6 to 5.6 m
(15.1 to 18.4 feet)
2oo-inch: 6.2 to 7.4 m
(20.3 to 24.3 feet)
250-inch: 7.7 to 9.3 m
(25.3 to 30.5 feet)
300-inch: 9.3 to
11.1
m
(30.5 to 36.4 feet)
2)
When placed on the floor, the adjuster not
stretched, the V Keystone function has been
done, and "Wide Mode"
in
the INPUT
SETTING menu
is
set to "Full 2."
There may be a slight difference between the
actual value and the design value shown above.
Electrical characteristics
Color system NTSC3.5S/PALISECAMJ
NTSC4.43/PAL-MJPAL-N/
PAL60 system, switched
automatically/manually
(NTSC4.43 is the color system
used when playing back a video
recorded in NTSC on a
NTSC4.43
system VCR.)
Resolution 750 horizontal
TV
lines (video
input)
1280 x 800 dots (RGB input)
Acceptable computer signals
3
)
fH:
19
to 92 kHz
fV:
48 to 92 Hz
52
(Maximuminput signal resolution:
SXGA+ 1400 x 1050
fV:
60
Hz)
3)
Set the resolution and the frequency
of
the
signal
of
the connected computer within the
range
of
acceptable preset signals
of
the
projector.
Applicable video signals
15
k RGB/component 50/60 Hz,
Progressive component 50/60
Hz, DTV (480/60i, 575/50i,
480/60p, 575/50p,
nO/60p,
nO/50p,
1080/60i, 1080/50i),
Composite video, Y/C video
Input/Output
VIDEO IN VIDEO: phono type
Composite video:
1 Vp-p ±2 dB
sync negative (75 ohms
terminated)
S VIDEO: Y/C mini DIN 4-
pintype
Y (luminance):
I Vp-p ±2 dB
sync negative (75 ohms
terminated)
C (chrominance): burst 0.286
Vp-p ±2 dB (NTSC) (75 ohms
terminated), burst 0.3 Vp-p ±2
dB (PAL) (75 ohms terminated)
INPUT A RGB: HD D-sub15-pin (female)
Analog RGB/component:
RIR-Y: 0.7 Vp-p ±2 dB (75
ohms terminated)
G: 0.7 Vp-p ±2 dB (75 ohms
terminated)
G with synclY:
I Vp-p ±2 dB
sync negative (75 ohms
terminated)
BIB-Y: 0.7 Vp-p ±2 dB (75
ohms terminated)
HD: Horizontal sync input: TTL
level, positive/negative
VD: Vertical sync input:
TTL
level, positive/negative
HDMI Digital RGBIY
CB
(PB)
CR
(PR)
SERVICE RS-232C: D-sub 9 pin
General
Dimensions
314x
109x
269mm(12
3
/sx
4
3/
s
x
10
5/
S
inches) (wlh/d)
(without projecting parts)
Mass Approx. 3.0 kg (6
Ib
10 oz)
Power requirements
AC 100 to 240
V,
2.6 to
l.l
A, 50/
60Hz
Power consumption
Max.260 W (in standby: 3
W)
Heat dissipation
