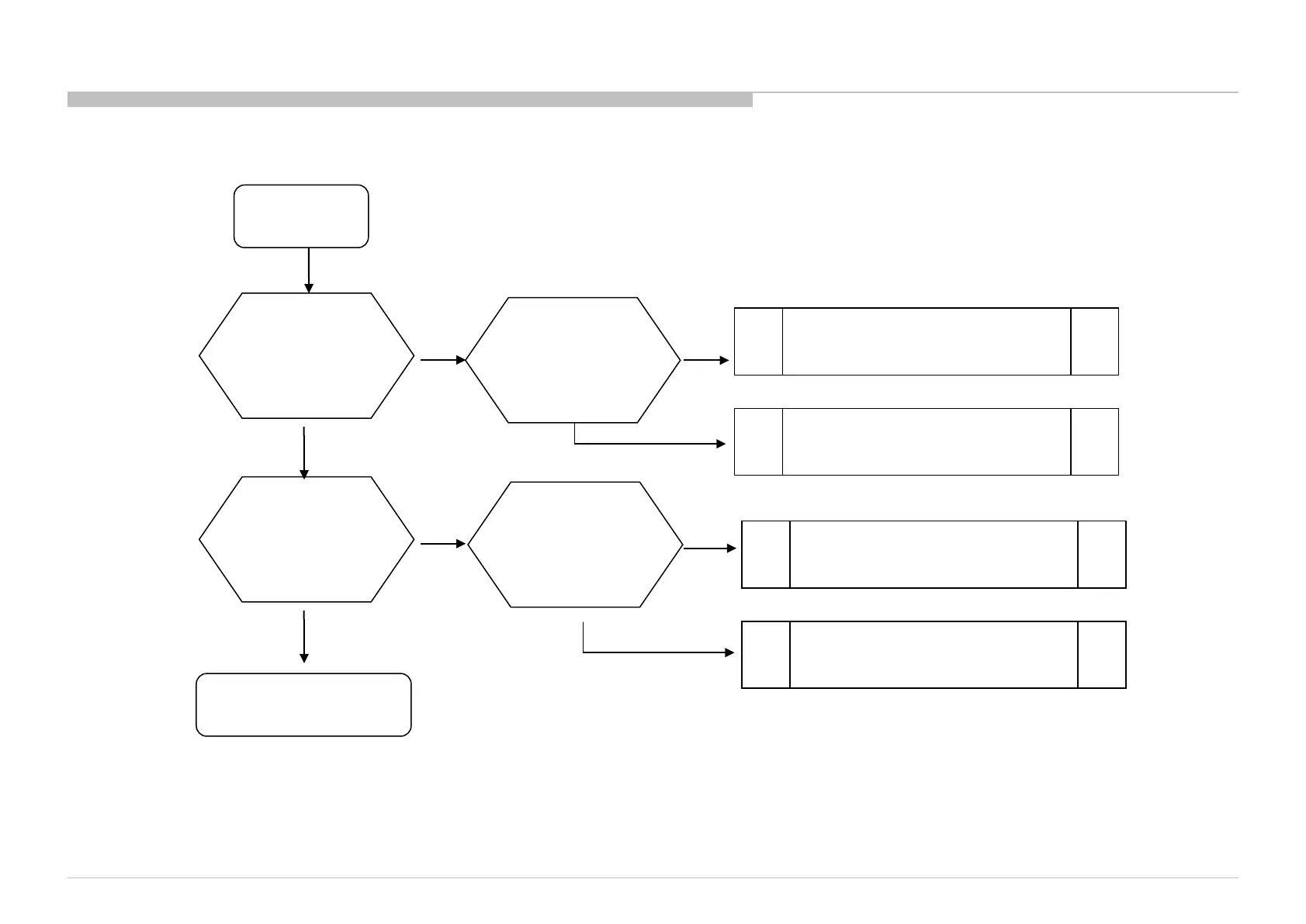

DDC: + 1.8V_TU check
101
no
yes
Change IC6007
START
Check voltage
C6055
Is voltage >5.0V?
Check EN signal
R6162
Is voltage >1.6V?
yes
no
Check
D6011
Is diode ok?
no
Change D6011
yes
Check +5.0V_DDC_OUT
Check
D6009
Is diode ok?
Change D6011
MTK IC damage
no
yes
3.11 No Power DDCON/LDO
