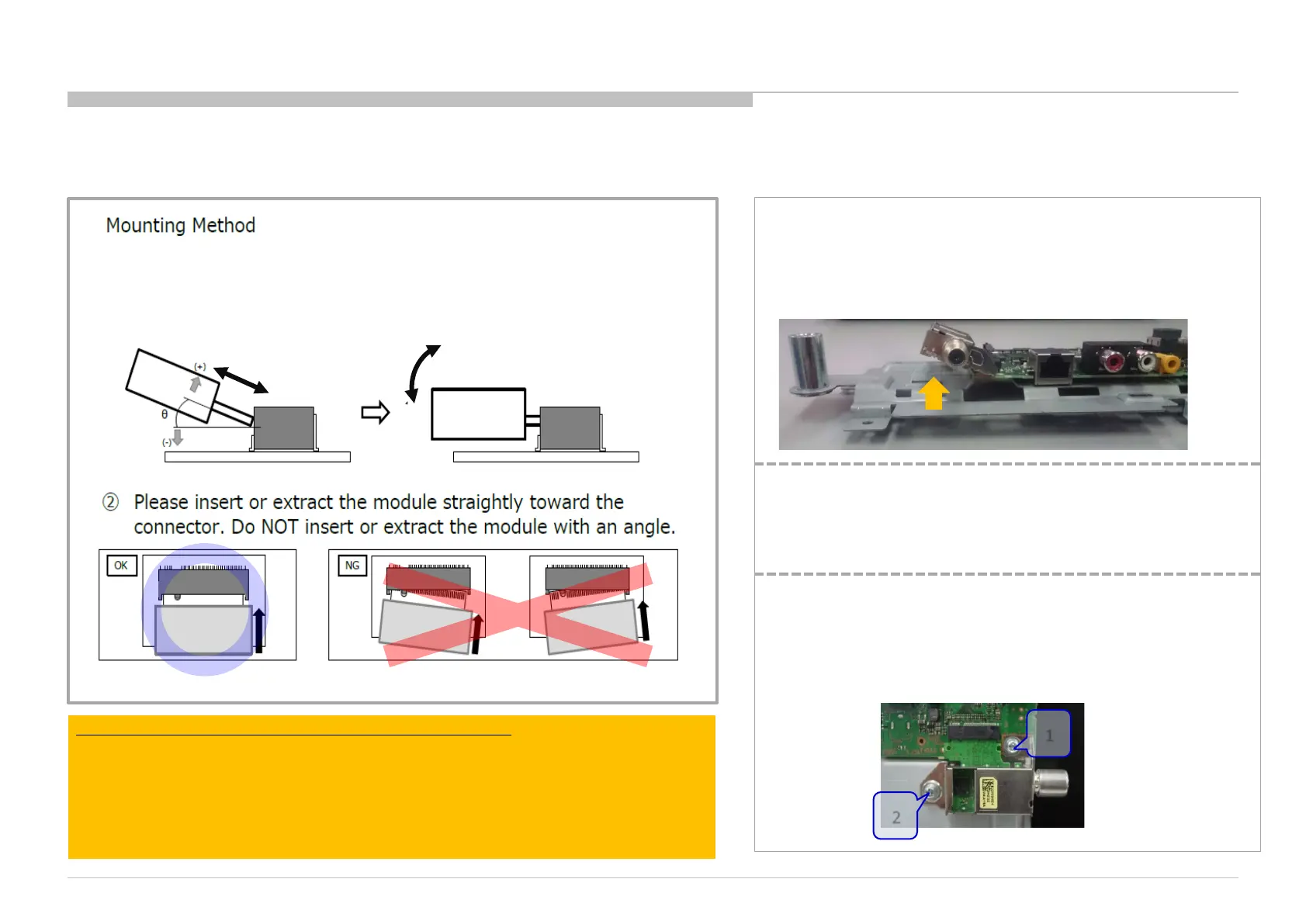

θ≒20°
① The insertion & extraction angle of the module is permitted to
specified degree for connector
Push down to screw.
Service manual operation (agreed by service member):
Not using insertion jig. Due quantity not many as production.
SC can control by:
1) Issue service manual for WW ASC.
2) Give training/lecture how to assemble tuner. Will be handle by SOEM
service
20°
For removing Tuner Module,
In the case of small type Tuner module.
After un screwed, Automatically the Module
will float to correct degree.
So please extract it with keeping this degree.
Please confirms whether no dust and no bend on
terminal of connecter(CN2800) and card-edge
connecter
Attachment order of screw.
1. Side of antenna terminal (W/BFX board).
2. Rear side of Tuner module.
2
1
1-9. Solder-less tuner replacement procedure
11
To Next Page
