27

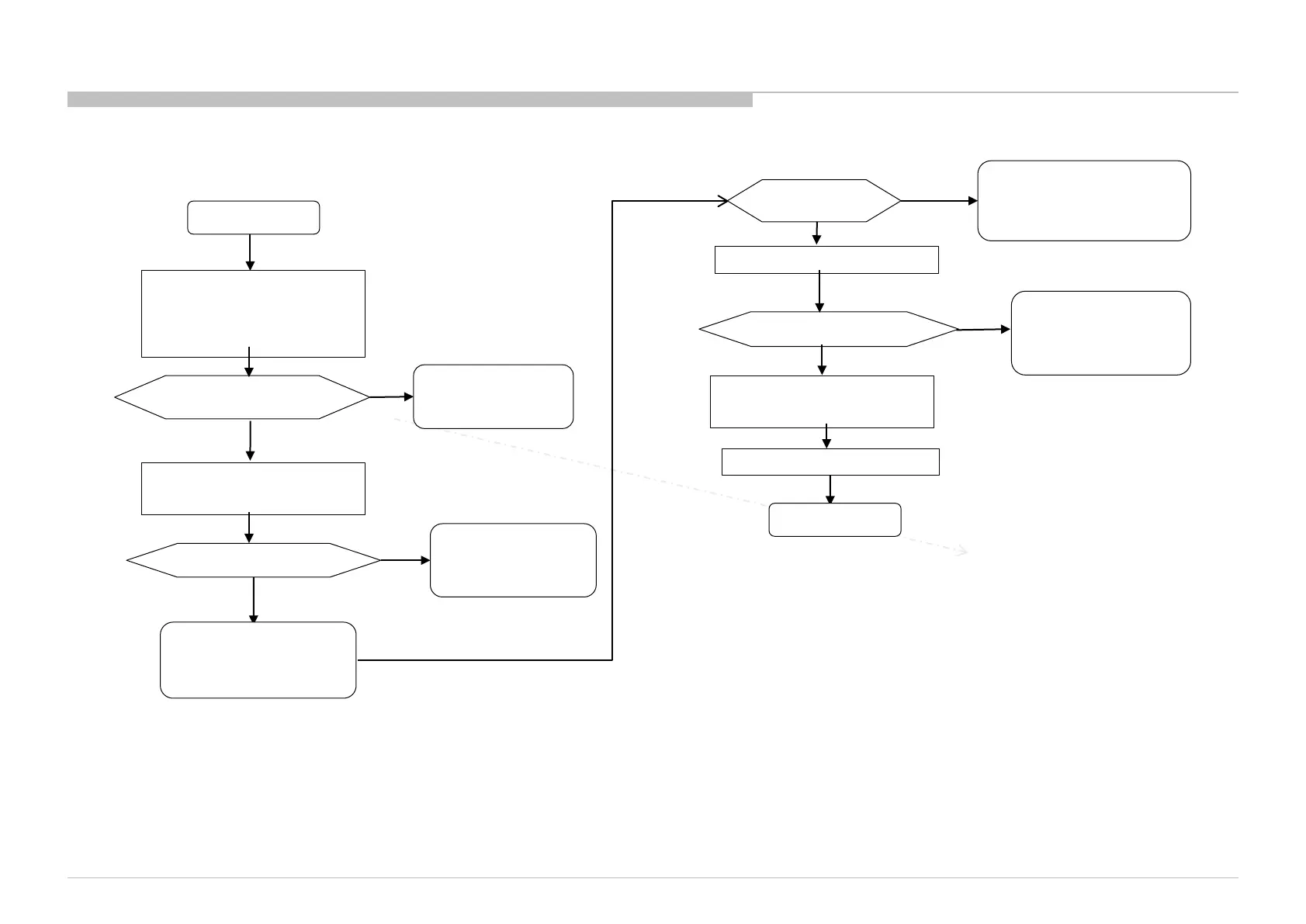

3.4 : 5x Blinking – Panel I2C Error
BLM Board (General Checking)
START
TV set is OK now
NG Symptom:
B-Board Issue NG
TV Boots Up Normally
* O-Cell or Panel
Module
replacement
depends on
service
capabilities
END
Reinsert LVDS Flat
Flexible Cable (FFC) at B-Board
and Panel Side. Make sure FFC
is taped properly
.
5 Times Blinking happen?
YES
No
Replace LVDS Flat Flexible
Cable (FFC)
TV set is OK now
NG Symptom:
Incorrect FFC Insertion
5 Times Blinking happen?
YES
No
TV set is OK now
NG Symptom:
LVDS Cable NG
Replace B-Board
5 Times Blinking happen?
YES
No
Replace
O-Cell* or Panel Module
*
Check voltage at +12.5V_TCON
Is 10.8 – 13.2V available?
YES
NO
TV set is OK now
NG sympton:
LD board/ G board
no +12.5V_TCON supply
To Next Page
