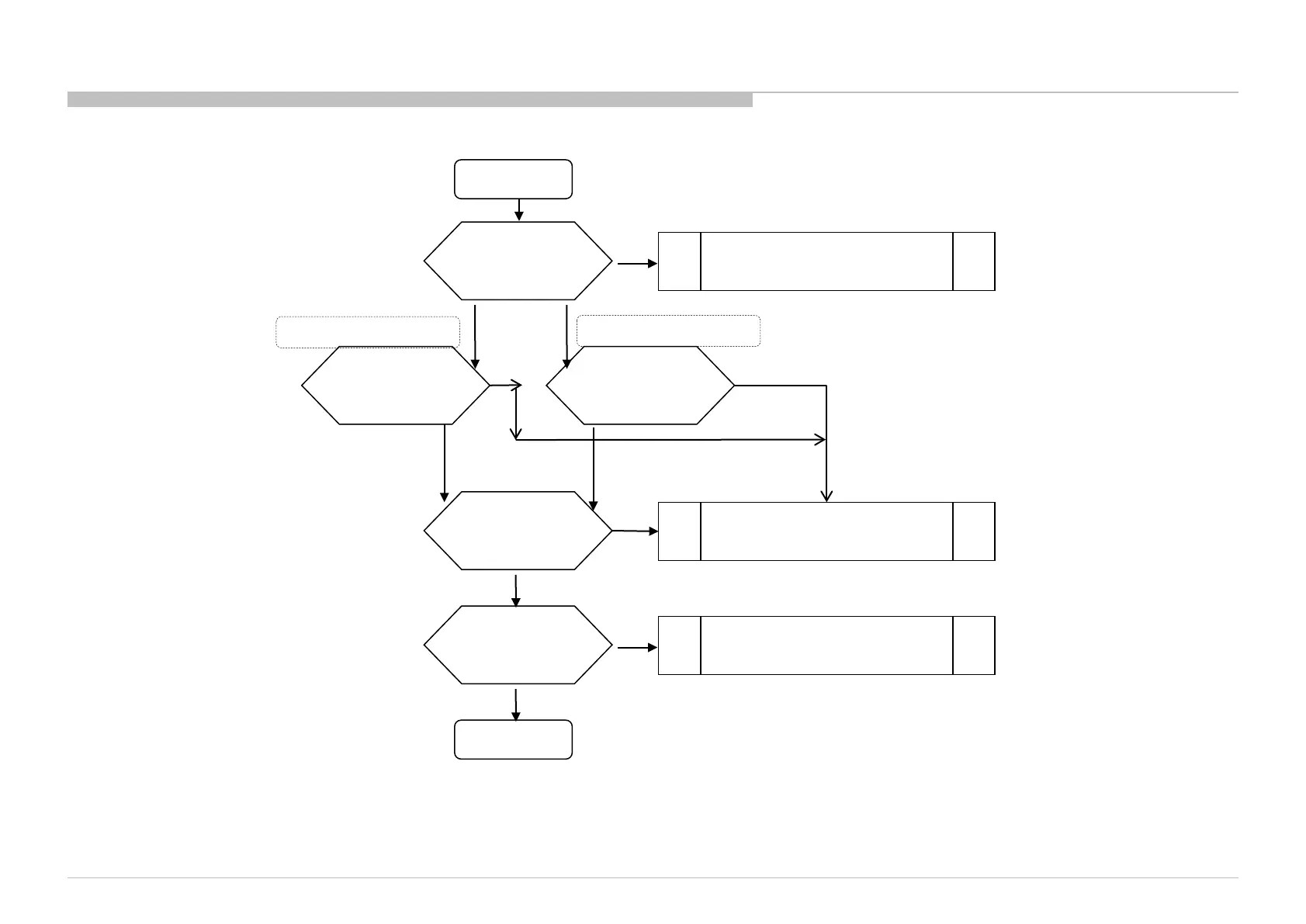

DDC: +3.3V_DDC_OUT check
95
KC 55”/65”=G-Board model (PSU)
KC 43”/49”=LD-Board model (ADP)
END
START
Check EN signal
R6088 voltage
Is voltage >2.9V?
Check Vcc
C6082 voltage
Is voltage >5.3V?
Check fuse
F6005
Is fuse OK?
Change IC6010
Change F6005
no
yes
no
no
yes
yes
G-Board/LD-Board
Check input
F6005 voltage
Is voltage >19.0V?
G-Board model
Check input
F6005 voltage
Is voltage >12.0V?
yes
yes
yes
no
no
LD-Board model
3.11 No Power DDCON/LDO
