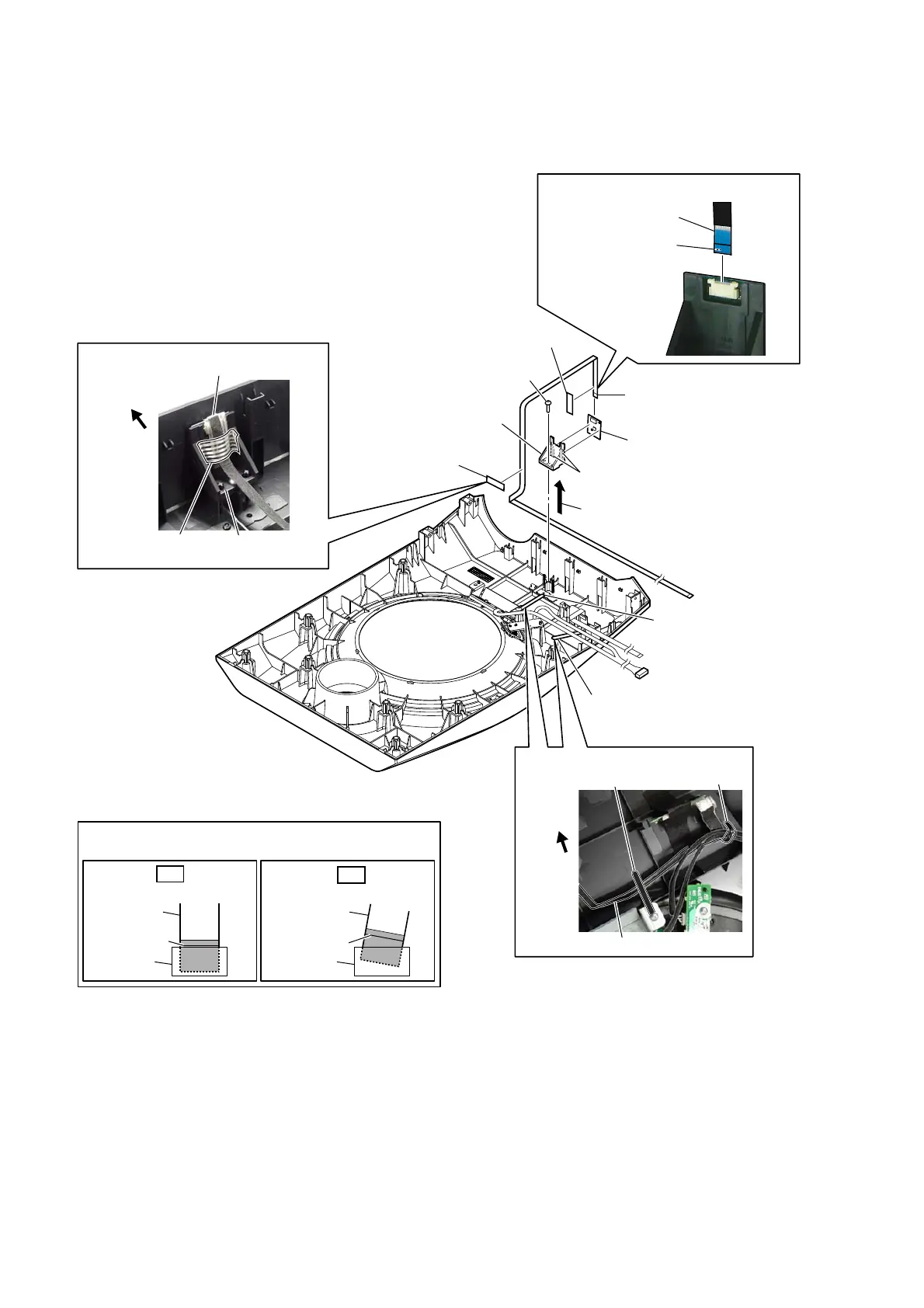

2-5. NFC MODULE (NFC1)
:LUHVHWWLQJ
+RZWRLQVWDOOWKHIOH[LEOHIODWFDEOH3
1 Remove the wire
from the clamp.
1 Remove the wire
from the clamp.
6 flexible flat cable (8P)
(FFC3)
flexible flat cable (8P)
flexible flat cable (8P)
3 screw
(BVTP2.6)
5 filament tape
(sub material)
filament tape
(sub material)
8 NFC module
(NFC1)
NFC holder block
NFC holder
2 filament tape
(sub material)
–)URQWSDQHOEORFNUHDUERWWRPYLHZ–
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
7 Peel the NFC module (NFC1)
off of the PSA tape (5T15).
The lower side is
the terminal side.
4
Remove the
NFC module block
in the direction of the arrow.
top side
top side
flexible flat cable (8P)
clamp
clamp
:LUHVHWWLQJ
