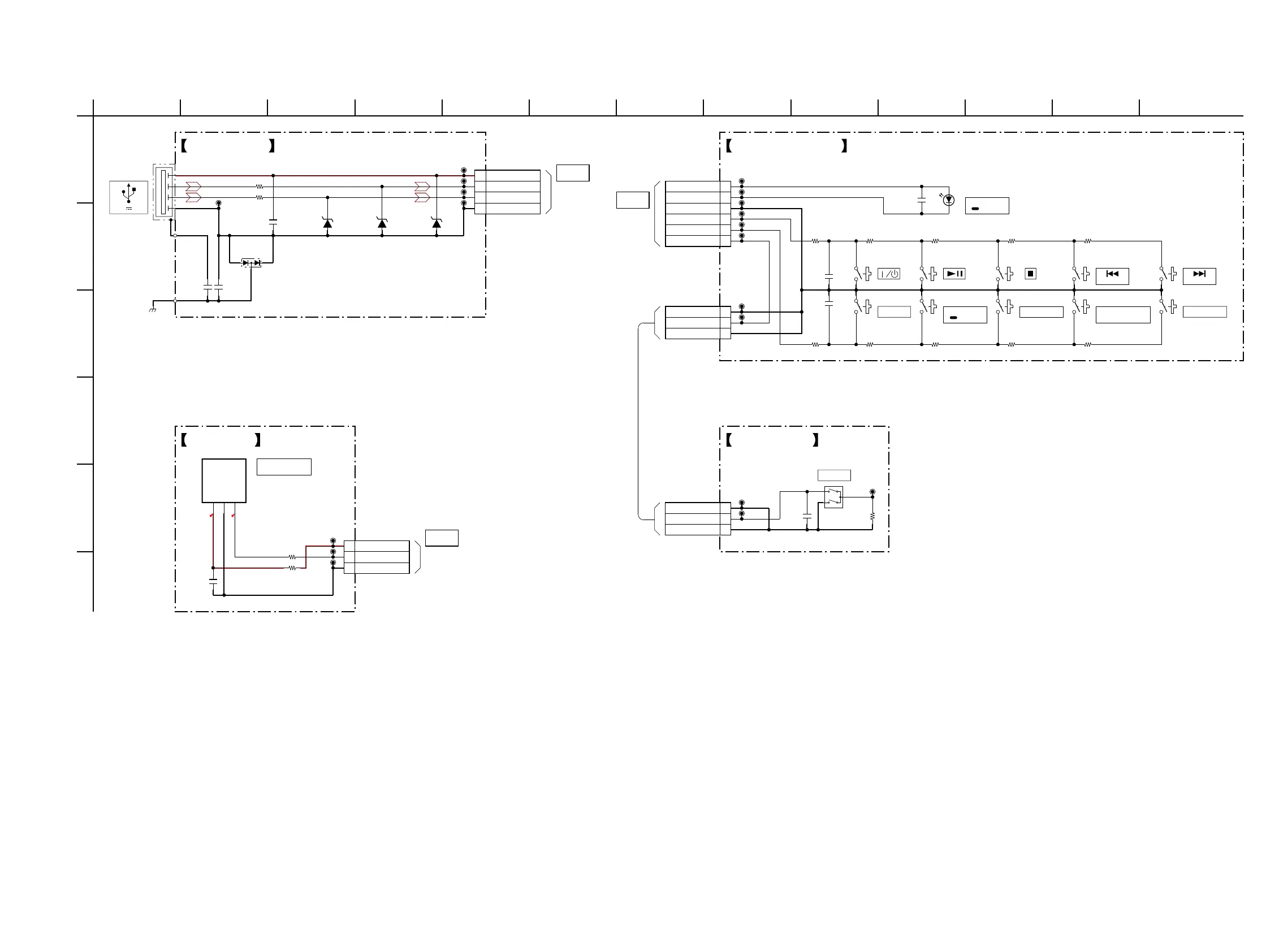

6-12. SCHEMATIC DIAGRAM - KEY Section -
3.3 3.3
4P
CN702
VBUS 1
2D–
3D+
4 VBUS GND
10
C701
0.1
C704
0.1
C703
BAV99-215
D705
CL704
CL702
CL705
CL703
CL701
R701 0
R702 0
DZ2J068M0L
D702
DZ2J068M0L
D701
DZ2J068M0L
D704
CN701
USB BOARD
(1/5)
BOARD
CN1001
>01S
MAIN
5V 1A
(CHASSIS)
10 11 12 13
F
1
C
D
6
E
2
B
3
A
45 789
3P
CN302
DGND 1
VOL_JOG 2
DGND 3
6P
CN301
BT_LED_A 1
2BT_LED_K
3DGND
4KEY1
5KEY2
6VOL_JOG
CL302
CL303
CL304
CL305
CL306
CL307
CL308
CL301
0.1
C303
1L0352B13F0MIT02
D301
1k
R305
2.2k
R303
2.2k
R301
1k
R306
0.1
C302
0.1
C301
2.2k
R304
4.7k
R307
4.7k
R308
10k
R309
10k
R310
2.2k
R302
S304 S305 S306 S307 S309
S303S301 S308 S310S302
BUTTON BOARD
FUNCTION PARTY CHAIN
CN402
>07S
PANEL
BOARD
BLUETOOTH
PAIRING
BASS BAZUCA
SPEAKER
ILLUMINATION
– TUNING TUNING +
PNA4823M01S0
IC601
VO
1
GND
2
VCC
3
3P
CN601
1 E3.3V
2 SIRCS
3DGND
100
R602
100
R601
0.1
C601
CL602
CL603
CL601
BOARD
CN3005
(4/5)
>04S
MAIN
IR BOARD
REMOTE CONTROL
IC601
RECEIVER
EN501
3P
CN501
1DGND
2VOL_JOG
3DGND
0.001
C501
10k
R501
CL503
CL502
CL501
ROTARY ENCODER
VOL BOARD
VOLUME
2
3
1
BLUETOOTH
PAIRING
1
4
(Page 36)
(Page 43)
(Page 33)
