Sony SA-WGT1 - MAIN Board-1

HT-GT1
18

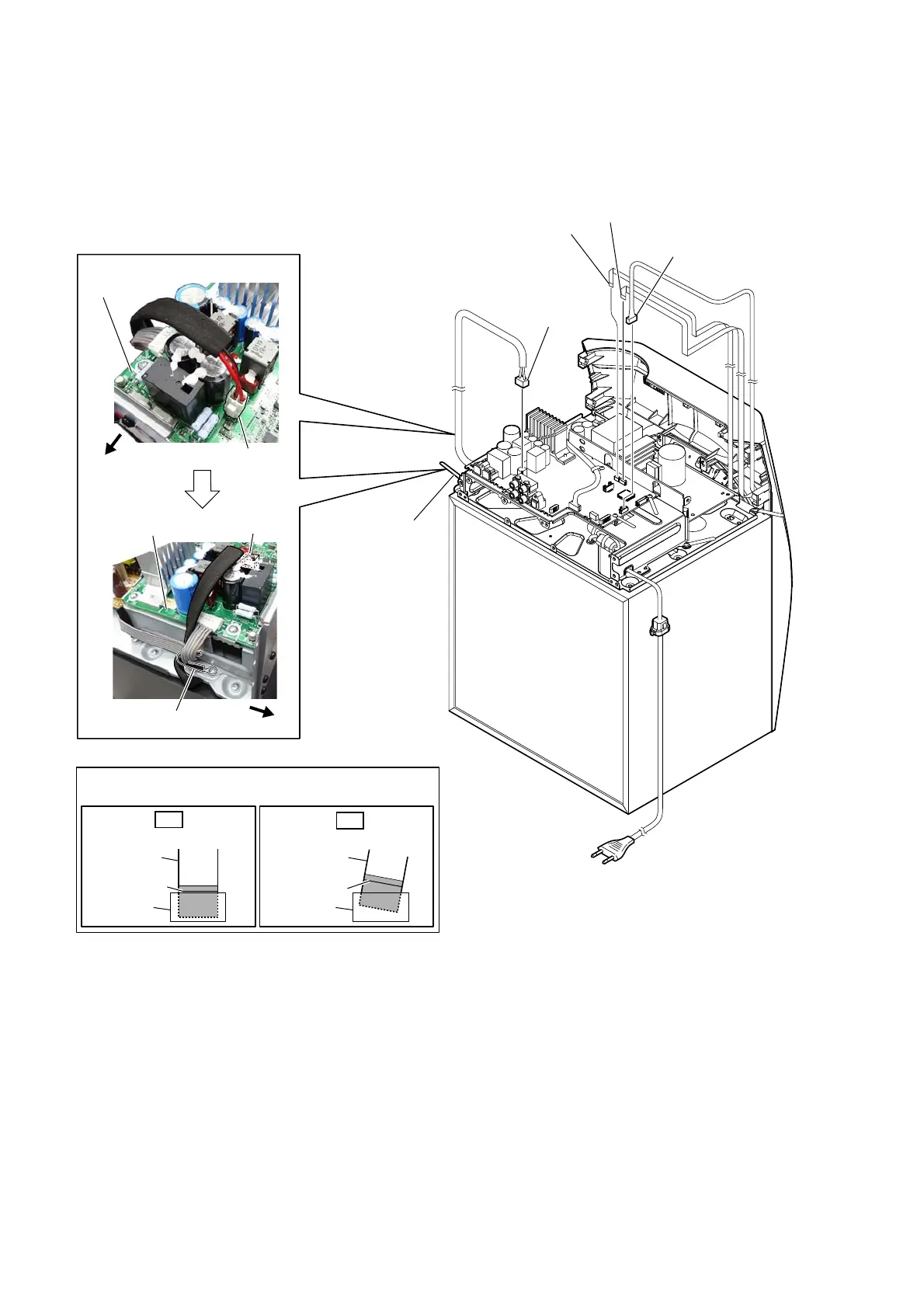

2-14. MAIN BOARD-1
• Continued on 2-15 (page 19).
:LUHVHWWLQJ
clamp
CN2001
CN2001
MAIN board
MAIN board
2 connector
(CN2001)
5 connector
(CN3005)
3 flexible flat cable (8P)
(CN3002)
4 flexible flat cable (14P)
(CN3003)
1 Remove the wire
from the clamp.
rear side
rear side
–5HDUYLHZ–
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
