55
HT-GT1
101 4-874-614-02 SCREW (1) (3.5X14), TAPPING
102 3-087-053-01 +BVTP2.6 (3CR)
103 3-077-331-71 +BV3 (3-CR)
* 104 3-703-150-11 CLAMP
105 X-2589-886-2 FRONT PANEL ASSY (Except US)
105 X-2590-011-2 FRONT PANEL ASSY (US)
BT1 1-490-558-81 BLUETOOTH MODULE
FC2 1-469-829-11 CORE, FERRITE (US, MX)
FFC3 9-885-197-79 SERVICE WIRE KIT (FFC 8P) (See Note)
FFC4 9-885-197-79 SERVICE WIRE KIT (FFC 14P) (See Note)
NFC1 8-989-470-05 RC-S801 (NFC module)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

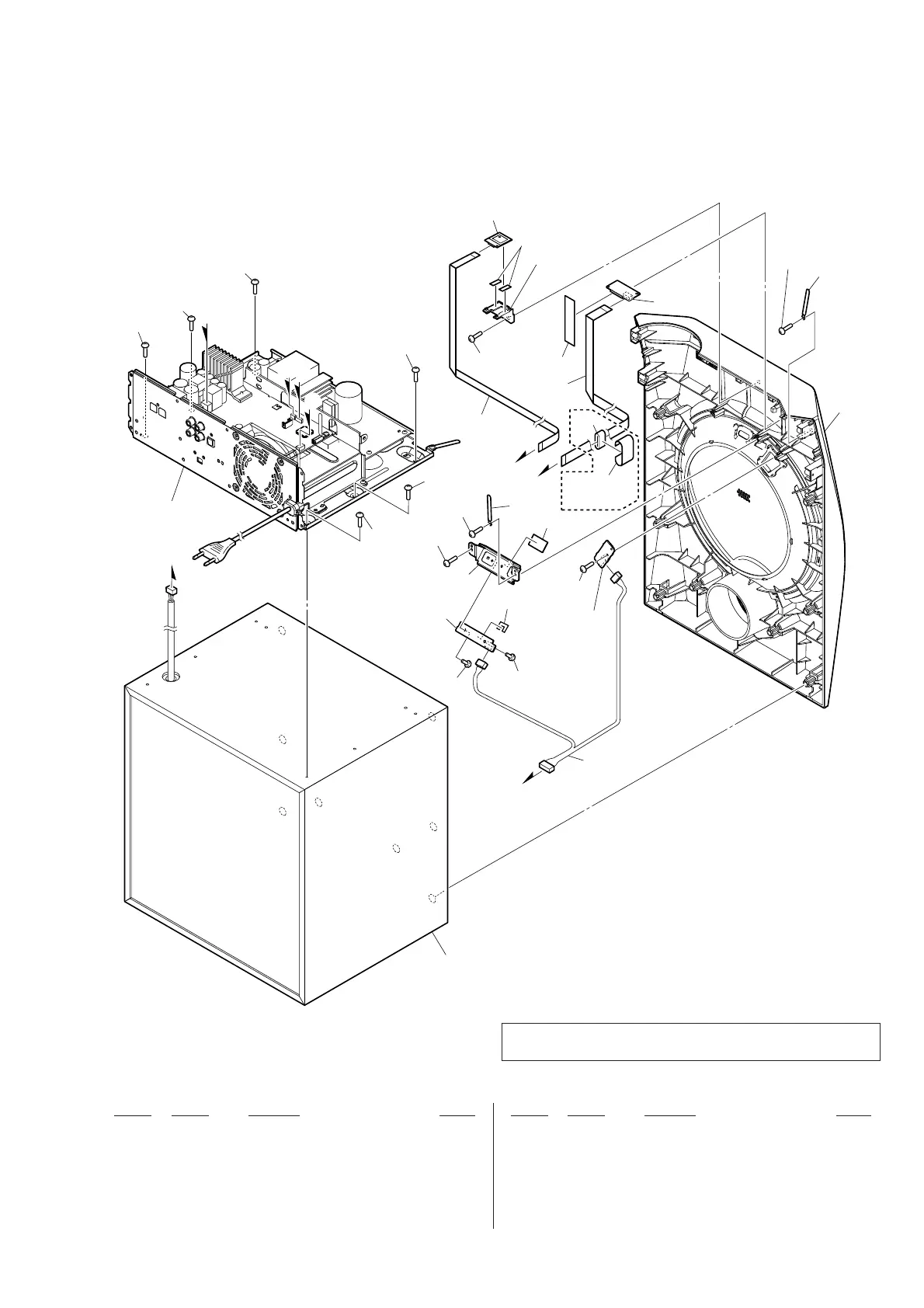

7-3. FRONT PANEL SECTION
• Rear view
C
B
D
101
103
103
102
102
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(SPK-LED-H-L board)
MAIN board section
speaker cabinet section
not supplied
(IR board)
not supplied
FFC4
FFC3
BT1
NFC1
B
C
E
D
not supplied
not supplied
102
104
105
101
101
101
101
101
102
102
E
104
FC2
(US, MX)
Note: As for SERVICE WIRE KIT, all fl at fl exible cables (Ref. No.
FFC1, FFC2, FFC3, FFC4) will be 1 set.
Ver. 1.2
