Sony SA-WGT1 - Knob Assy

HT-GT1
14

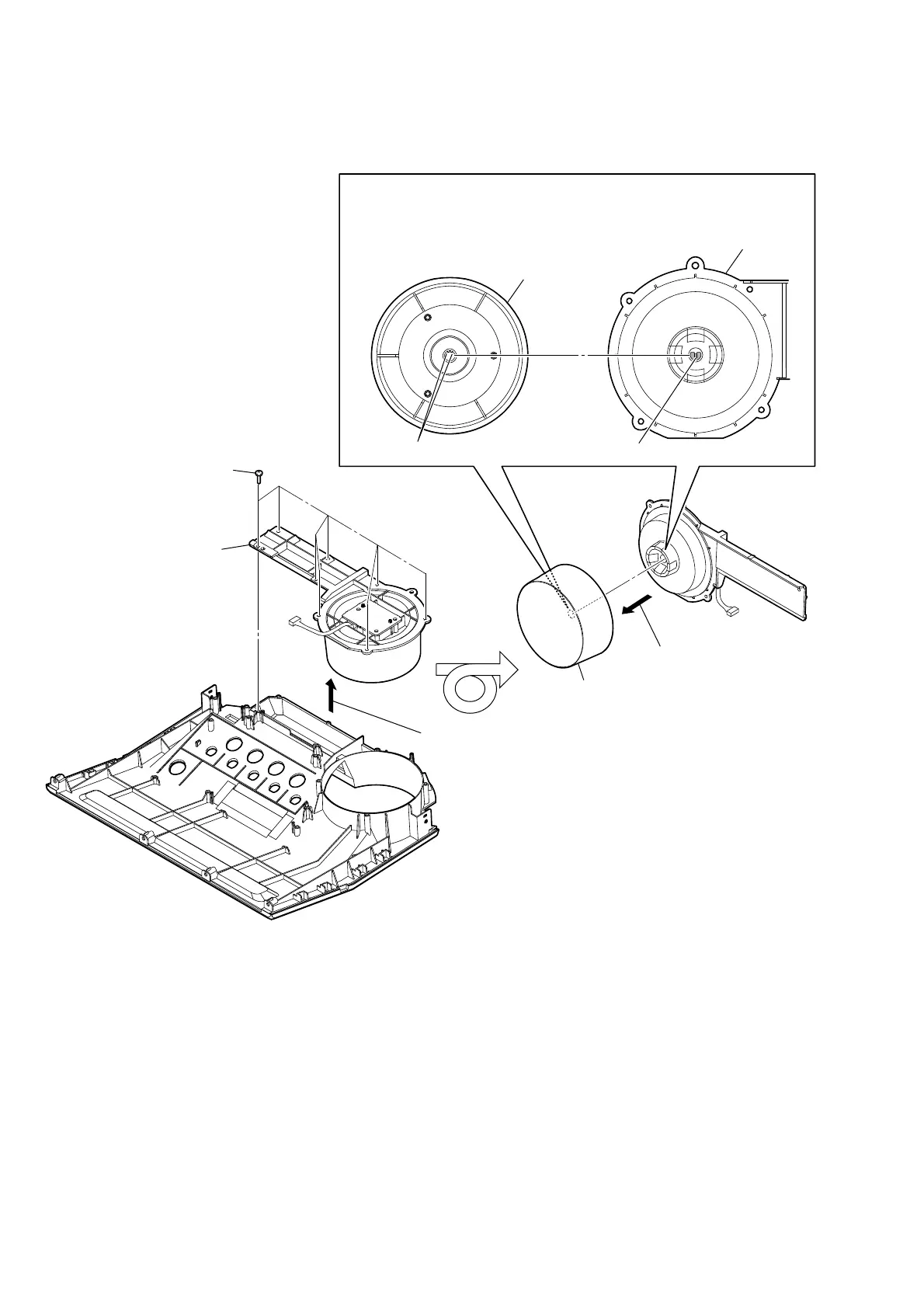

2-9. KNOB ASSY
1 eight screws
(BVTP2.6)
3 VOL board block
– Top panel block rear bottom view –
4 Draw the knob assy in
the direction of the arrow.
5 knob assy
knob assy
rib
shaft
+RZWRLQVWDOOWKHNQREDVV\
– Bottom view – – Top view –
Note:
When installing the knob assy, aline the two ribs of knob assy and the shaft.
VOL board block
2 Remove the VOL board block
in the direction of the arrow.
