HT-GT1
SECTION 7
EXPLODED VIEWS

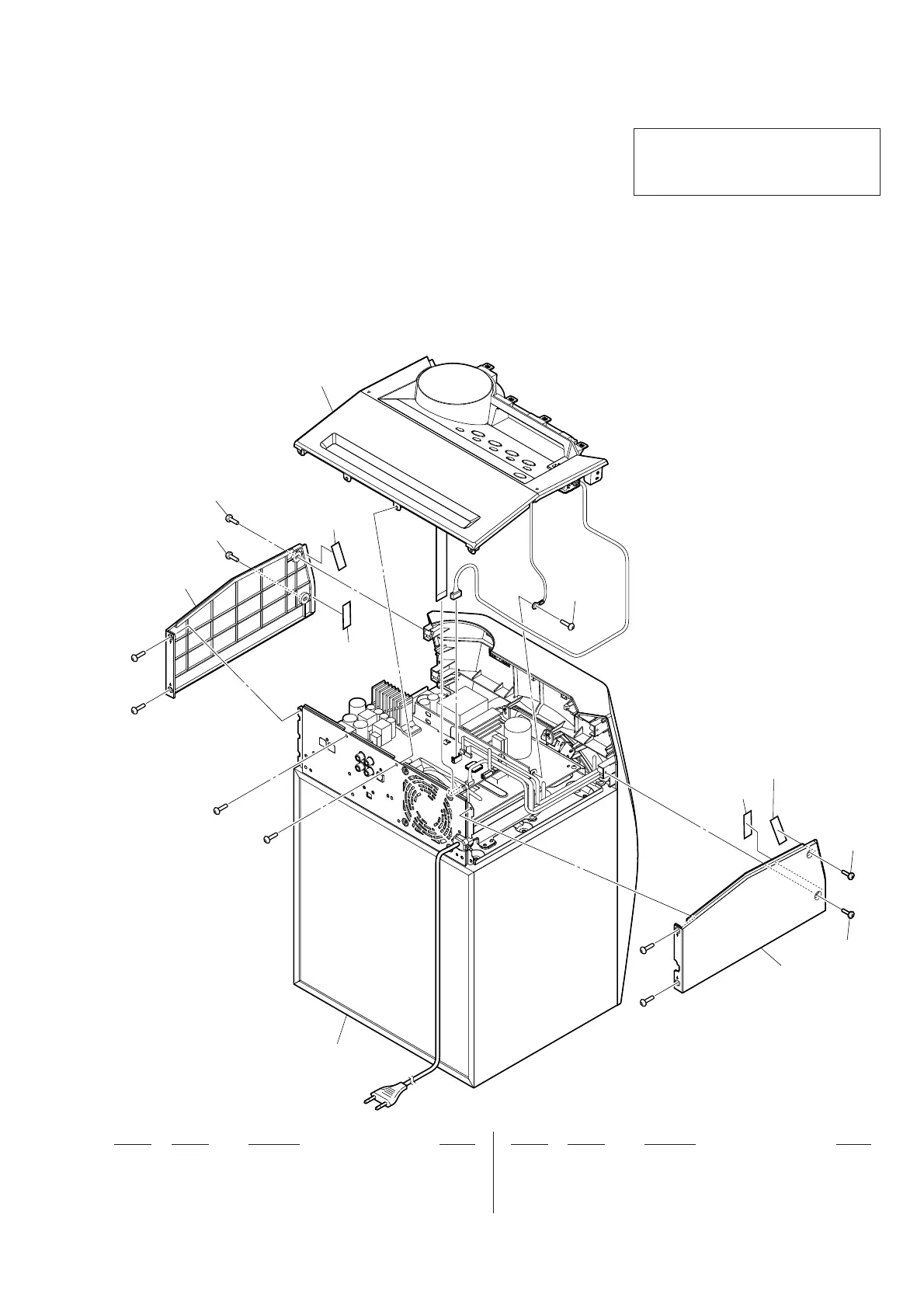

7-1. SIDE PANEL SECTION
• Rear view
#1
#1
#1
#1
#1
#1
1
3
3
4
3
3
2
not supplied
not supplied
not supplied
not supplied
top panel section
front panel section
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
1 4-540-497-01 PANEL, SIDE L (for L-ch) (Except US)
1 4-540-497-11 PANEL, SIDE L (for L-ch) (US)
2 4-540-496-01 PANEL, SIDE R (for R-ch) (Except US)
2 4-540-496-11 PANEL, SIDE R (for R-ch) (US)
3 4-546-397-01 SCREW, TAPPING (HEX)
4 3-077-331-71 +BV3 (3-CR)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
