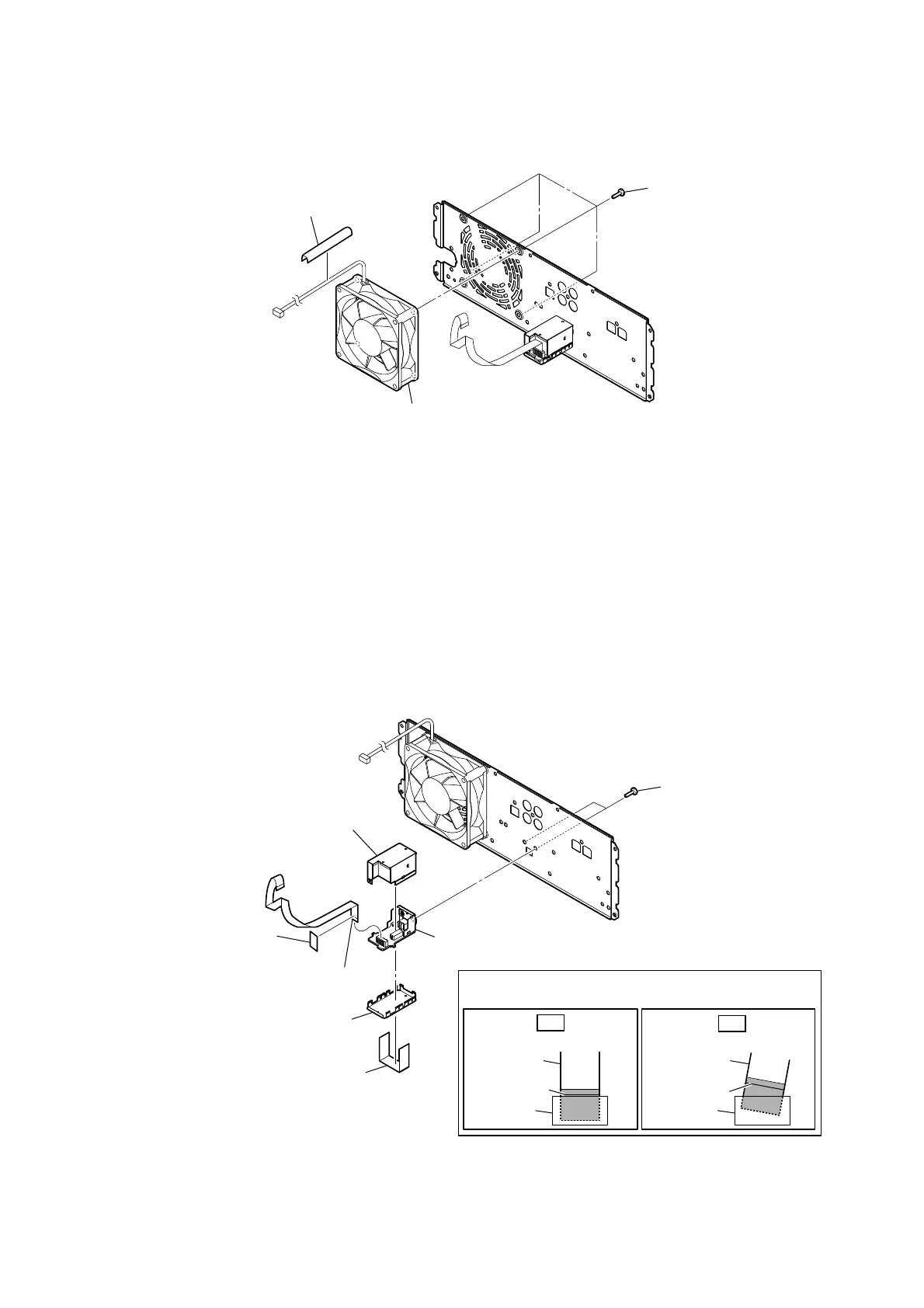

2-12. DC FAN (M1)
2-13. TUNER BOARD
3 DC fan (M1)
2 EVA cushion (20T50)
1 four screws
(BVTP3 u 8)
3 two screws
(BVTP3 u 8)
2 flexible flat cable (9P)
(CN802)
7 TUNER board
6 plate (top) shield
5 plate (bottom) shield
4 filament tape
(sub material)
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
1 filament tape
(sub material)
