56
HT-GT1
Note 2: As for SERVICE WIRE KIT, all fl at fl exible cables (Ref. No.
FFC1, FFC2, FFC3, FFC4) will be 1 set.

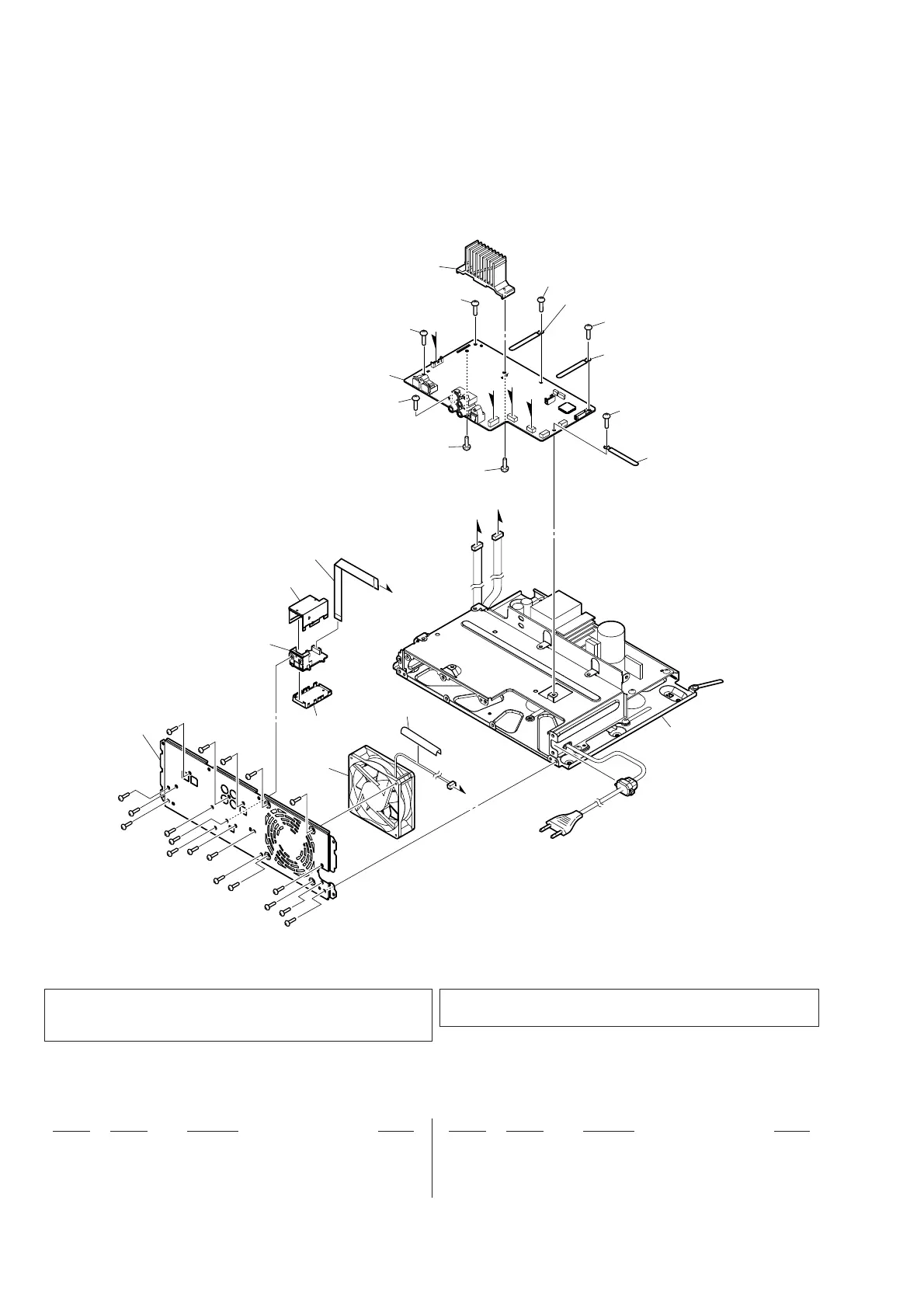

7-4. MAIN BOARD SECTION
• Rear view
151 A-2057-420-A TUNER BOARD, COMPLETE
152 3-077-331-71 +BV3 (3-CR)
153 A-2057-417-A MAIN BOARD, COMPLETE (See Note 1)
* 154 3-703-150-11 CLAMP
FFC2 9-885-197-79 SERVICE WIRE KIT (FFC 9P) (See Note 2)
M1 1-855-006-61 DC FAN
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
SMPS board section
I
F
G
H
H
G
I
F
not supplied
not supplied
not supplied
M1
not supplied
FFC2
151
152
152
152
153
152
152
154
154
154
152
152
152
not supplied
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
Note 1: When the complete MAIN board is replaced, refer to “NOTE OF
REPLACING THE IC002 ON THE MAIN BOARD AND THE
COMPLETE MAIN BOARD” on page 5.
To Next Page
