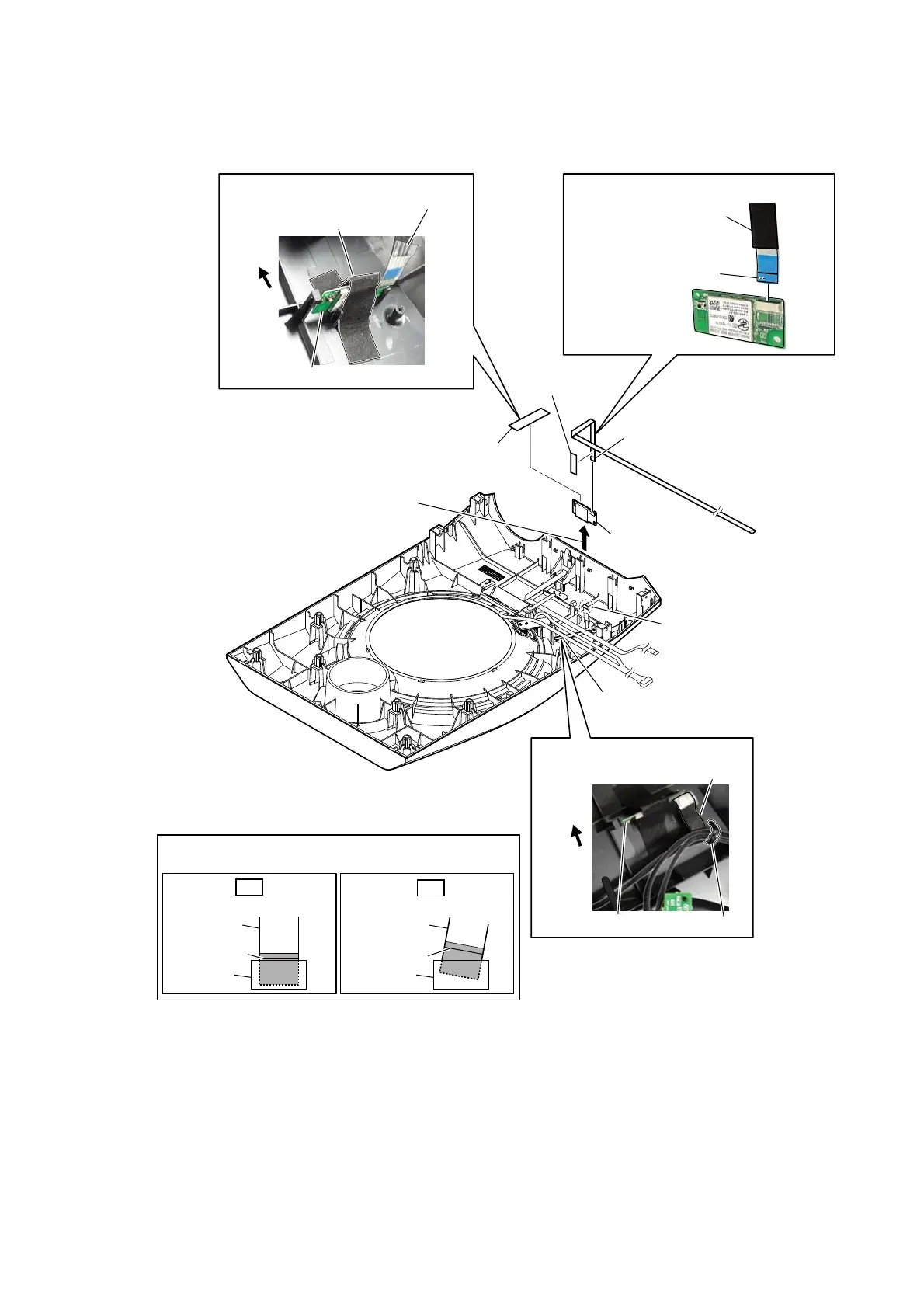

2-6. BLUETOOTH MODULE (BT1)
:LUHVHWWLQJ
:LUHVHWWLQJ
+RZWRLQVWDOOWKHIOH[LEOHIODWFDEOH3
top side
clamp
1 Remove the wire
from the clamp.
2 saranet cushion
(15T50)
bluetooth module
saranet cushion (15T50)
6 flexible flat cable (14P)
(FFC4)
flexible flat cable (14P)
7 bluetooth module
(BT1)
3 claw
top side
–)URQWSDQHOEORFNUHDUERWWRPYLHZ–
bluetooth module
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
5 filament tape
(sub material)
flexible flat cable (14P)
The lower side is
the terminal side.
4
Remove the
bluetooth module block
in the direction of the arrow.
flexible flat cable (14P)
