Sony SA-WGT1 - MAIN Board-2

HT-GT1
19

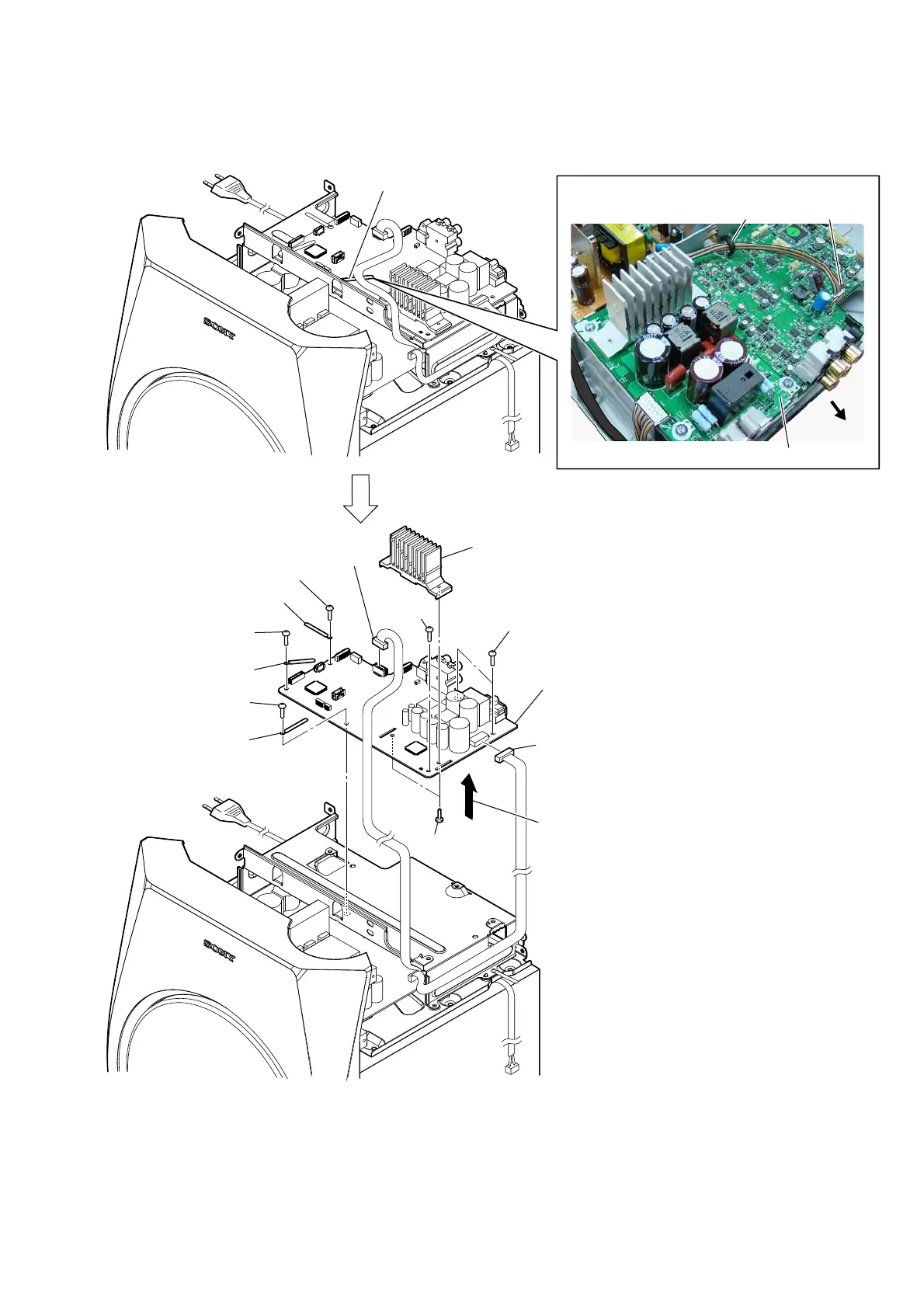

2-15. MAIN BOARD-2
6 Remove the MAIN board block
in the direction of the arrow.
3 connector
(CN4001)
9 MAIN board
2 connector
(CN4002)
4 two screws
(BV3)
8 AMP heatsink
7 two screws
(BV3)
4 screw (BV3)
4 screw
(BV3)
5 clamp
4 screw (BV3)
5 clamp
4 screw (BV3)
5 clamp
1 Remove the wire
from the clamp.
:LUHVHWWLQJ
CN4002
MAIN board
clamp
rear side
