Sony STR-DE695 Service Manual

STR-DE695
3636

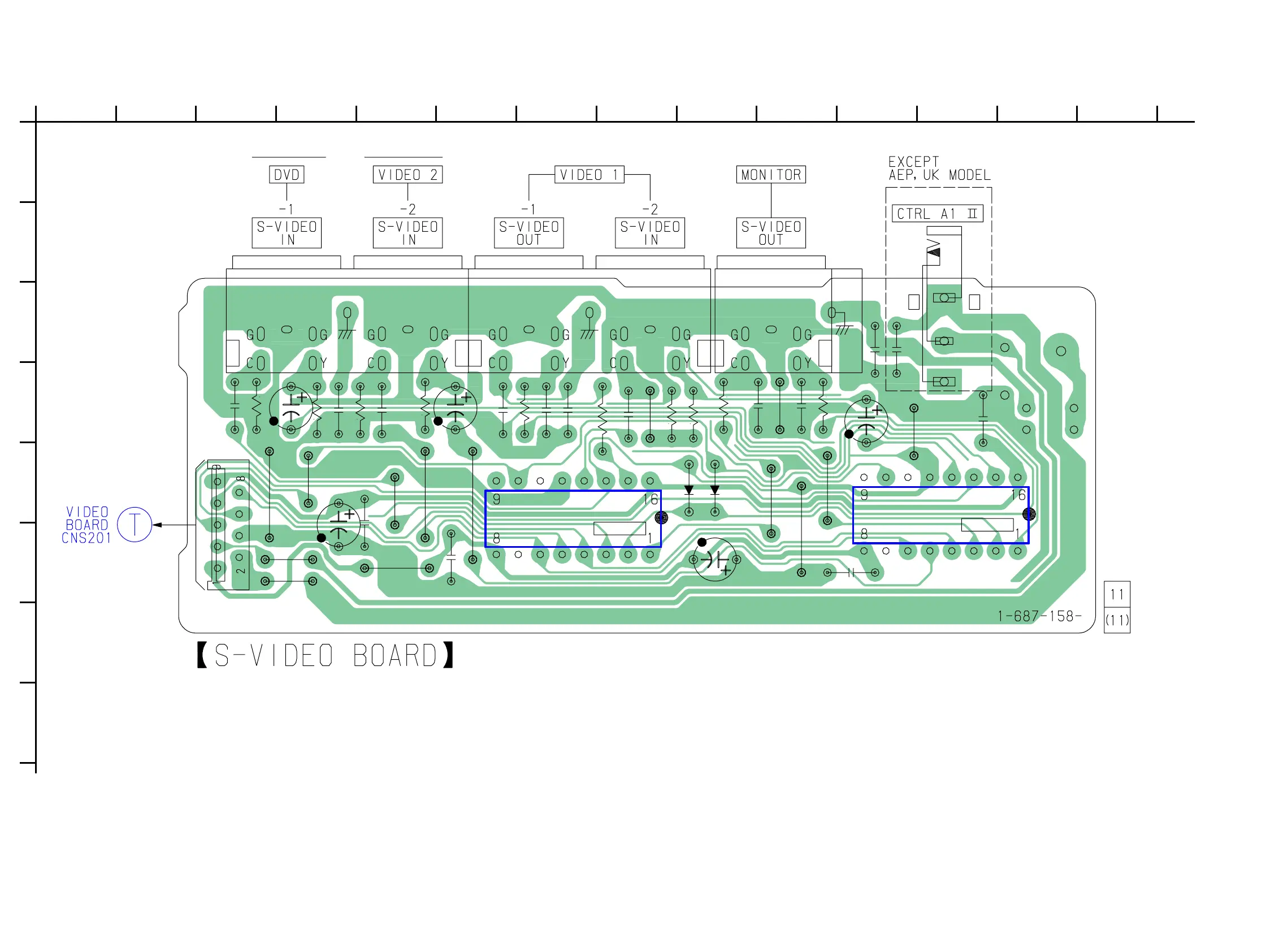

4-19. PRINTED WIRING BOARD — S-VIDEO SECTION — • Refer to page 24 for Circuit Boards Location and Common Note on Printed Wiring Boards.
1
A
B
C
D
E
F
G
H
234567891011 12 13 14
C267
C275
CNS252
IC252
R258
IC251
C251
J251
R255
C266
C272
C256
C265
R260
C268
R259
C269
C262
C259
R206
R252
C263
C258
R251
R254
C260
R253
C252
J253
J252
C257
C261
R257
JW258
JW260
C254
JW252
D252
D251
C255
C253
J254
JW256
JW257
JW259
JW261
JW262
JW251
JW263
JW250
JW253
JW254
JW264
(Page 34)

Sony STR-DE695 Specifications

General

Dimensions (WxDxH)	430 x 310 x 157 mm
Power requirements	230 V; 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 3.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Speaker Selector A, B, A+B S-Video Input - 3.0 S-Video Output- 1.0 Video Input - 4.0 Video Output - 1.0
Connectivity technology	Wired
Power consumption (standby)	0.3 W
Power consumption (typical)	250 W

Weight and Dimensions

Weight	8500 g
