Sony STR-DE695 Service Manual

50
STR-DE695
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 A-4731-517-A STANDBY BOARD, COMPLETE (US,CND)
151 A-4731-668-A STANDBY BOARD, COMPLETE (AEP,UK,SP,MY)
151 A-4731-683-A STANDBY BOARD, COMPLETE (E2,E3,JE)
151 A-4731-688-A STANDBY BOARD, COMPLETE (AR)
151 A-4731-692-A STANDBY BOARD, COMPLETE (MX)
151 A-4731-734-A STANDBY BOARD, COMPLETE (TW)
151 A-4731-745-A STANDBY BOARD, COMPLETE (CH)
151 A-4747-418-A STANDBY BOARD, COMPLETE (AUS)
152 A-4731-514-A MAIN BOARD, COMPLETE (US)
152 A-4731-666-A MAIN BOARD, COMPLETE (SP,MY,AR)
152 A-4731-729-A MAIN BOARD, COMPLETE (AEP,UK,AUS,TW)
152 A-4731-742-A MAIN BOARD, COMPLETE (CH)
152 A-4731-760-A MAIN BOARD, COMPLETE (CND)
152 A-4734-559-A MAIN BOARD, COMPLETE (E2,E3,JE,MX)
153 3-905-609-01 SCREW (TRANSISTOR)
154 A-4734-561-A SB AMP BOARD, COMPLETE (US,CND)
0 F901 1-532-464-31 FUSE (T2.5AL/250V) (EXCEPT US,CND,MX,TW)
0 F901 1-533-471-11 FUSE (T4AL/250V) (TW)
0 F901 1-576-193-11 FUSE (6.3A/125V) (US,CND,MX)
0 F902 1-576-109-11 FUSE (5A/125V) (US,CND,MX,TW)
Q503 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q504 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q572 8-749-026-08 TRANSISTOR 2SC4495 (US,CND)
Q573 8-749-010-25 TRANSISTOR MN2488-OPY-M (US,CND)
Q574 8-749-010-26 TRANSISTOR MP1620-OPY-M (US,CND)
Q603 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q604 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q653 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q654 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q703 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q704 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q753 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q754 8-749-010-26 TRANSISTOR MP1620-OPY-M
0 T901 1-439-550-11 TRANSFORMER, POWER (SP,MY)
0 T901 1-439-582-11 TRANSFORMER, POWER (AEP,UK,CH,AR)
0 T901 1-439-583-11 TRANSFORMER, POWER (CND,MX)
0 T901 1-439-584-11 TRANSFORMER, POWER (TW)
0 T901 1-439-585-11 TRANSFORMER, POWER (E2,E3,JE)
0 T901 1-439-611-11 TRANSFORMER, POWER (US)
0 T901 1-439-866-11 TRANSFORMER, POWER (AUS)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#3 7-685-880-09 SCREW +BVTT 4X6 (S)
153
154
153
151
152
T901
#3
#3
#2
#2
#2
#2
#1
#1
#2
F901
F902
not supplied
not supplied
not
supplied
not
supplied
not supplied
Q604
Q603
Q754
Q753
Q654
Q653
Q704
Q703
Q504
Q574
Q573
Q572
Q503

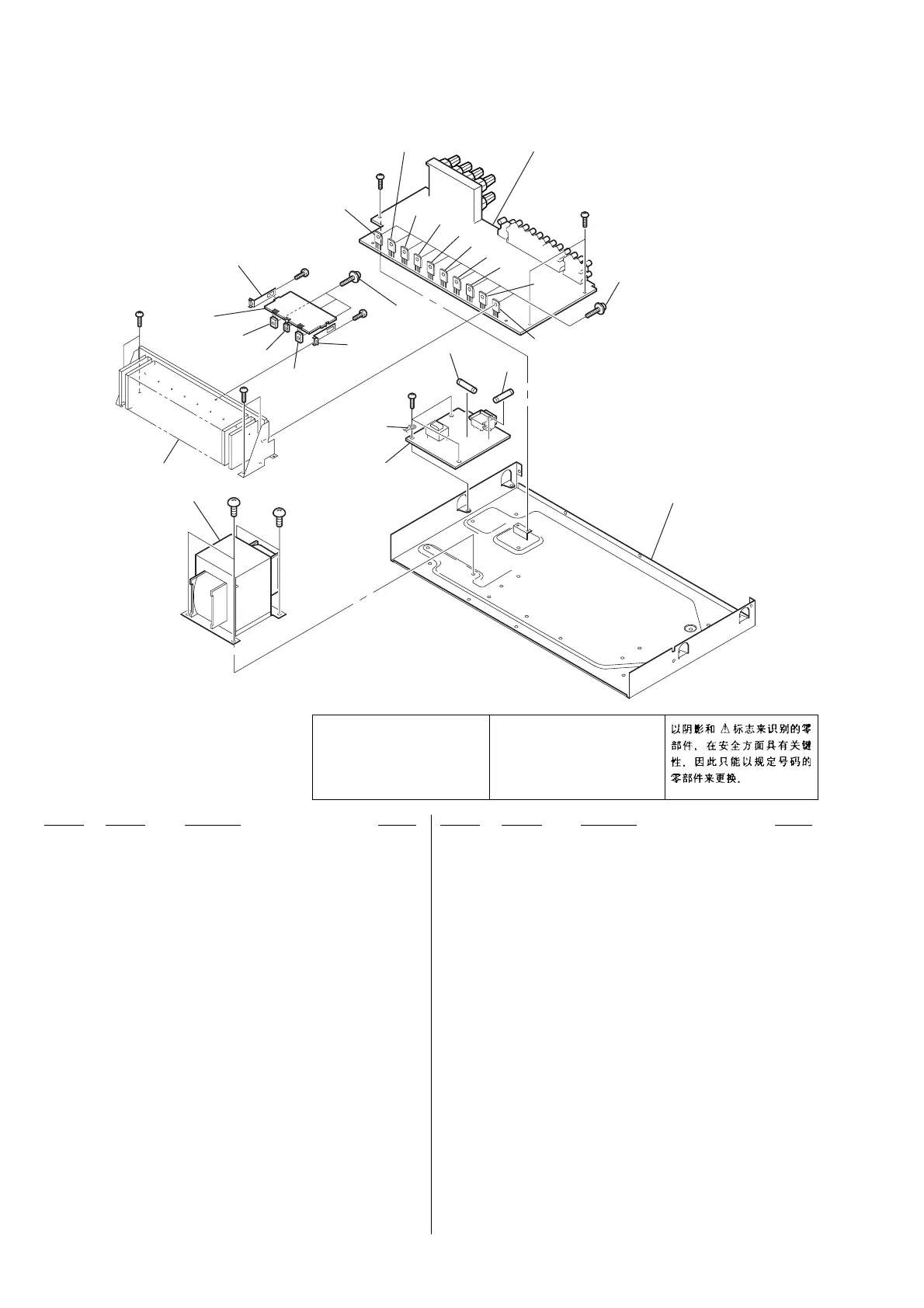

5-4. CHASSIS SECTION-2
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ver 1.1

Sony STR-DE695 Specifications

General

Dimensions (WxDxH)	430 x 310 x 157 mm
Power requirements	230 V; 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 3.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Speaker Selector A, B, A+B S-Video Input - 3.0 S-Video Output- 1.0 Video Input - 4.0 Video Output - 1.0
Connectivity technology	Wired
Power consumption (standby)	0.3 W
Power consumption (typical)	250 W

Weight and Dimensions

Weight	8500 g
