Sony STR-DE695 Service Manual

9
STR-DE695

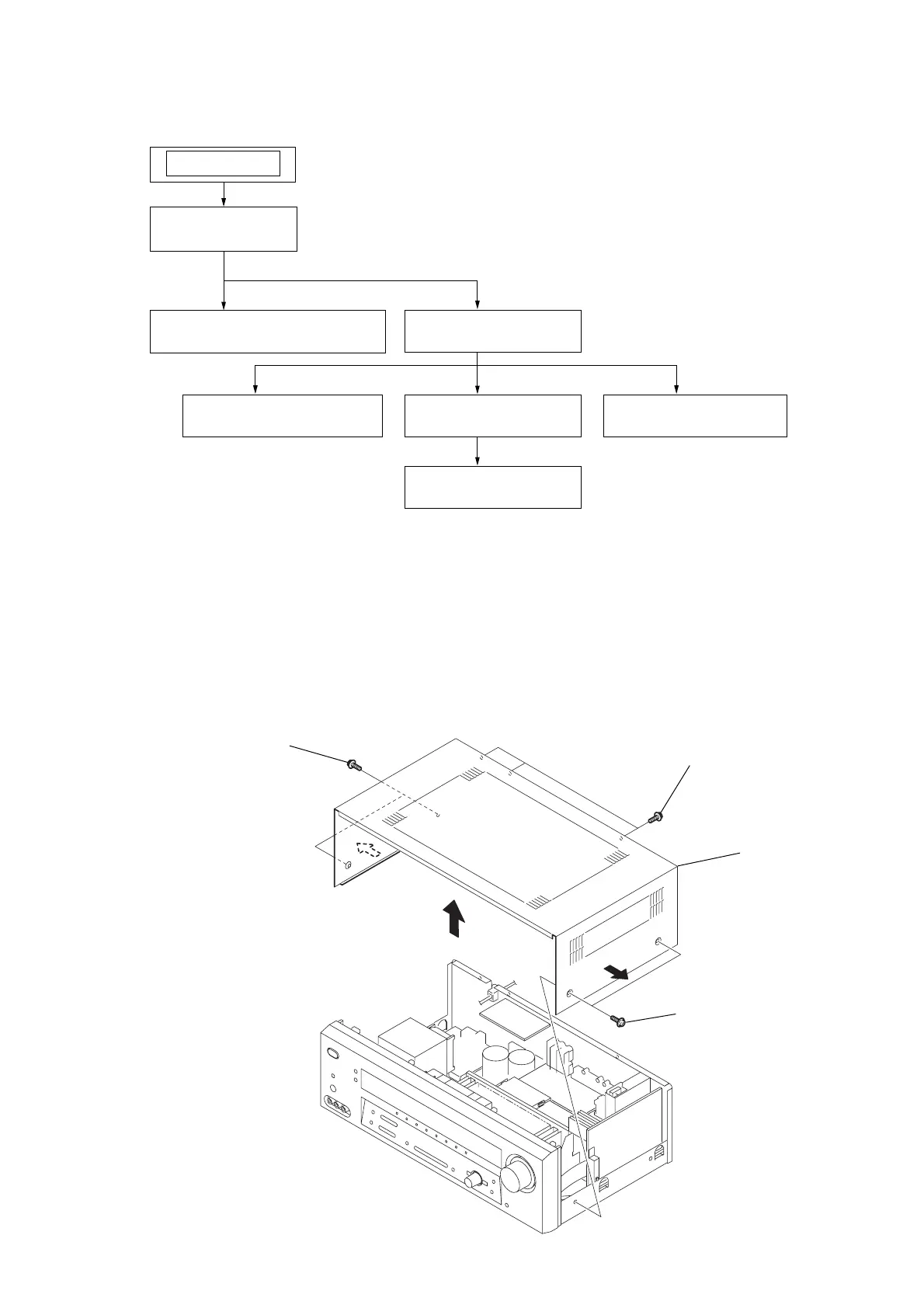

Note : This set can be disassemble according to the following sequence.
SECTION 2
DISASSEMBLY
2-1. CASE
2-1. CASE
(Page 9)
2-2. FRONT PANEL SECTION
(Page 10)
2-3. BACK PANEL
(Page 10)
SET
2-5. STANDBY BOARD
(Page 11)
2-4. DIGITAL BOARD
(Page 11)
2-6. MAIN BOARD
(Page 12)
2-7. SB AMP BOARD
(Page 12)
Note : Follow the disassembly procedure in the numerical order given.
1 two screws
(case 3 TP2)
2 three screws
(case 3 TP2)
3 two screws
(case 3 TP2)
4 case

Sony STR-DE695 Specifications

General

Dimensions (WxDxH)	430 x 310 x 157 mm
Power requirements	230 V; 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 3.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Speaker Selector A, B, A+B S-Video Input - 3.0 S-Video Output- 1.0 Video Input - 4.0 Video Output - 1.0
Connectivity technology	Wired
Power consumption (standby)	0.3 W
Power consumption (typical)	250 W

Weight and Dimensions

Weight	8500 g
