Sony STR-DE695 Service Manual

48
STR-DE695

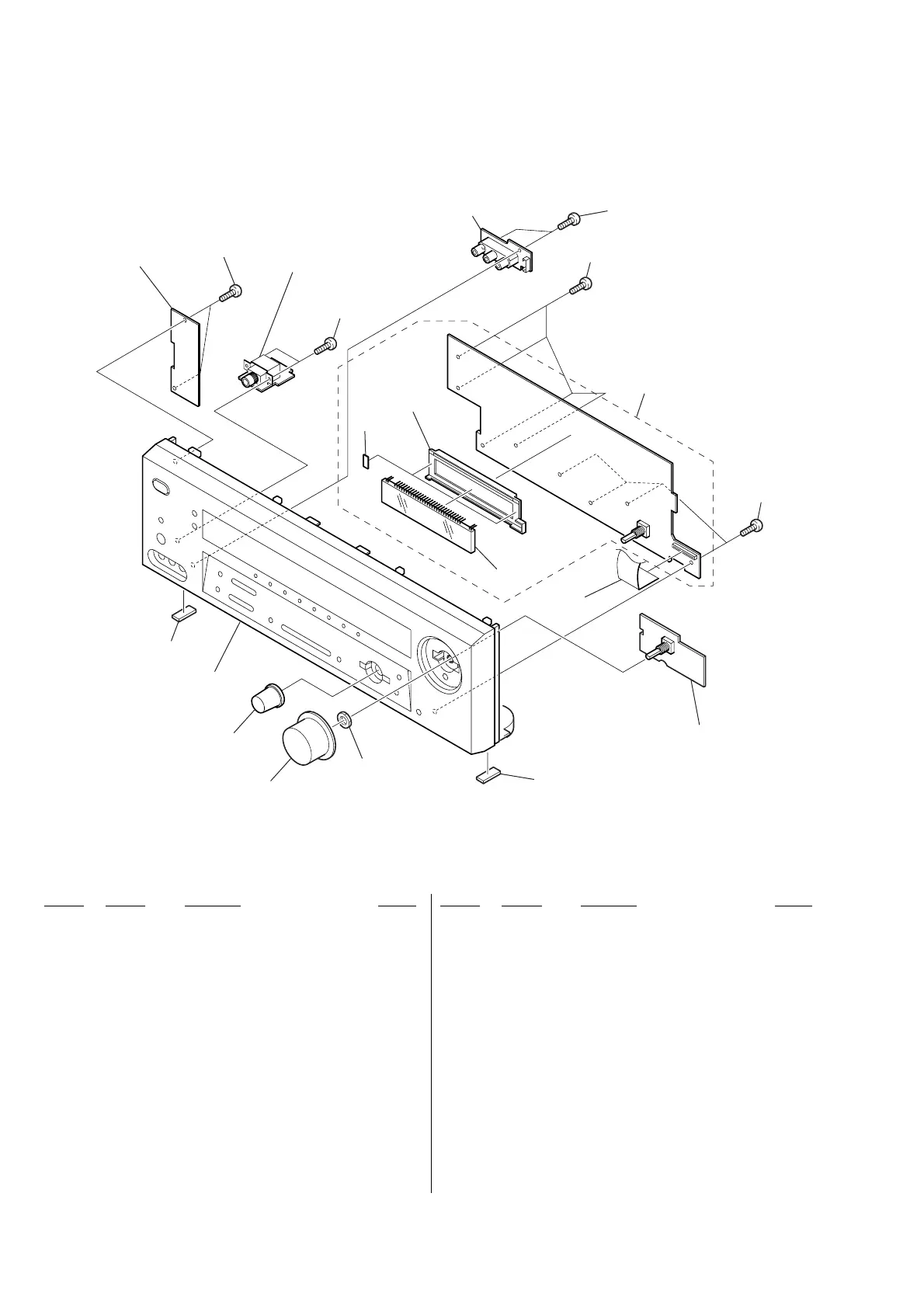

5-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4955-251-1 PANEL ASSY, FRONT (BLACK)...(BLACK) (US)
51 X-4955-268-1 PANEL ASSY, FRONT (SILVER)...(SILVER) (CND)
51 X-4955-269-1 PANEL ASSY, FRONT (GOLD)...(GOLD)
(JE,SP,MY,CH,TW)
51 X-4955-270-1 PANEL ASSY, FRONT (SILVER)...(SILVER)
(E2,E3,AUS,MX,AR)
51 X-4955-271-1 PANEL ASSY, FRONT (BLACK)...(BLACK)
(AEP,UK)
51 X-4955-272-1 PANEL ASSY, FRONT (SILVER)...(SILVER)
(AEP,UK)
51 X-4955-793-1 PANEL ASSY, FRONT (BLACK)...(BLACK) (AUS)
51 X-4955-826-1 PANEL ASSY, FRONT (SILVER)...(SILVER) (US)
52 4-232-113-01 KNOB (VOL) (BLACK)...(BLACK)
52 4-232-113-12 KNOB (VOL) (SILVER)...(SILVER)
52 4-232-113-22 KNOB (VOL) (GOLD)...(GOLD)
53 4-977-358-01 CUSHION
54 A-4731-522-A POWER BOARD, COMPLETE (EXCEPT CH)
54 A-4731-751-A POWER BOARD, COMPLETE (CH)
55 4-244-235-01 KNOB (MENU) (BLACK)...(BLACK)
55 4-244-235-11 KNOB (MENU) (GOLD)...(GOLD)
55 4-244-235-21 KNOB (MENU) (SILVER)...(SILVER)
56 4-951-620-01 SCREW (2.6X8), +BVTP
57 1-687-157-11 VIDEO3 BOARD
58 A-4731-521-A DISPLAY BOARD, COMPLETE (US,CND,MX)
58 A-4731-672-A DISPLAY BOARD, COMPLETE
(EXCEPT US,CND,CH,MX)
58 A-4731-750-A DISPLAY BOARD, COMPLETE (CH)
* 59 3-386-245-13 HOLDER (FL)
* 60 4-921-941-01 CUSHION (FL)
61 1-773-187-11 WIRE (FLAT TYPE) (23 CORE)
FL101 1-518-831-11 INDICATOR TUBE, FLUORESCENT
52
53
53
51
55
56
56
56
56
57
56
58
60
59
61
supplied with
RV102
not supplied
(HEADPHONE board)
not supplied
(VOL board)
FL101
54
Ver 1.1

Sony STR-DE695 Specifications

General

Dimensions (WxDxH)	430 x 310 x 157 mm
Power requirements	230 V; 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 3.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Speaker Selector A, B, A+B S-Video Input - 3.0 S-Video Output- 1.0 Video Input - 4.0 Video Output - 1.0
Connectivity technology	Wired
Power consumption (standby)	0.3 W
Power consumption (typical)	250 W

Weight and Dimensions

Weight	8500 g
