Sony STR-DE695 Service Manual

49
STR-DE695

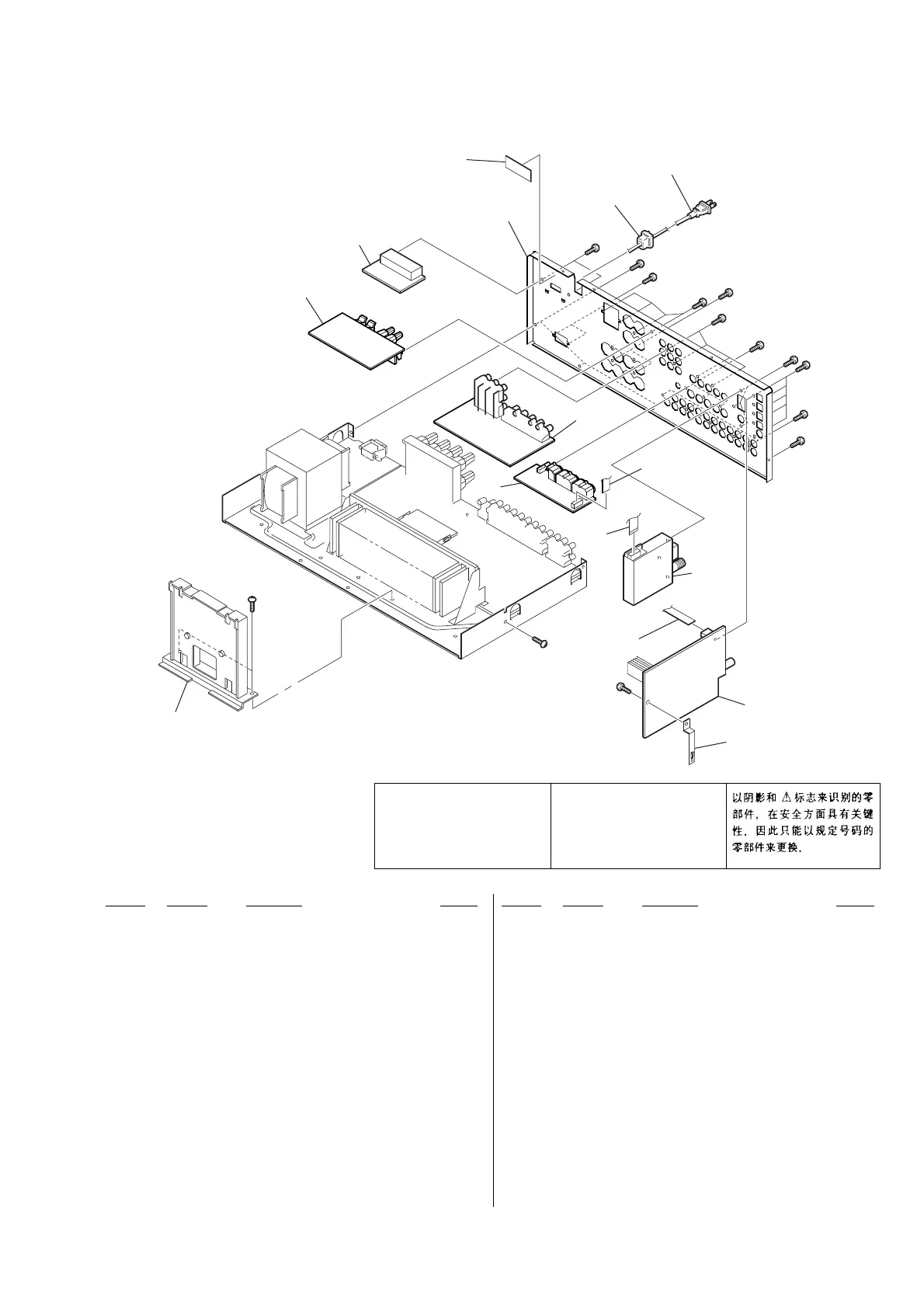

5-3. CHASSIS SECTION-1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 1-687-162-11 SPEAKER BOARD
102 1-687-154-11 AC SELECT BOARD (E2,E3,JE)
* 103 3-703-044-26 LABEL, CAUTION (US,CND)
* 104 3-703-244-00 BUSHING (2104), CORD
0 105 1-696-847-11 CORD, POWER (AUS)
0 105 1-777-071-23 CORD, POWER (AEP,UK,E2,E3,JE,SP,MY)
0 105 1-783-205-12 CORD, POWER (CH)
0 105 1-783-532-11 CORD, POWER (US,CND,MX,TW)
0 105 1-783-941-12 CORD, POWER (AR)
106 A-4731-528-A DIGITAL BOARD, COMPLETE (US,CND)
106 A-4731-680-A DIGITAL BOARD, COMPLETE (AUS,SP,MY,TW)
106 A-4731-685-A DIGITAL BOARD, COMPLETE (E2,E3,JE)
106 A-4731-689-A DIGITAL BOARD, COMPLETE (AR,MX)
106 A-4731-739-A DIGITAL BOARD, COMPLETE (AEP,UK)
106 A-4731-756-A DIGITAL BOARD, COMPLETE (CH)
107 1-769-879-11 WIRE (FLAT TYPE) (7 CORE)
108 1-769-940-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP,UK)
108 1-773-001-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
109 1-769-907-11 WIRE (FLAT TYPE) (9 CORE)
110 A-4731-527-A S-VIDEO BOARD, COMPLETE (US,CND)
110 A-4731-670-A S-VIDEO BOARD, COMPLETE
(EXCEPT US,CND,AEP,UK,CH)
110 A-4731-736-A S-VIDEO BOARD, COMPLETE (AEP,UK)
110 A-4731-748-A S-VIDEO BOARD, COMPLETE (CH)
111 1-687-163-11 VIDEO BOARD
112 4-233-263-01 SUB MOLD (DE9)
TM301 1-693-577-22 TUNER PACK (ANTENNA)
(US,CND,E2,E3,JE,MX,AR)
TM301 1-693-578-23 TUNER PACK (ANTENNA) (AEP,UK)
TM301 1-693-580-13 TUNER PACK (ANTENNA) (AUS)
TM301 1-693-580-22 TUNER PACK (ANTENNA) (SP,MY,CH,TW)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
101
102
103
104
105
106
107
108
109
110
111
112
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
TM301
#2
not supplied
not supplied
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ver 1.1

Sony STR-DE695 Specifications

General

Dimensions (WxDxH)	430 x 310 x 157 mm
Power requirements	230 V; 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 3.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Speaker Selector A, B, A+B S-Video Input - 3.0 S-Video Output- 1.0 Video Input - 4.0 Video Output - 1.0
Connectivity technology	Wired
Power consumption (standby)	0.3 W
Power consumption (typical)	250 W

Weight and Dimensions

Weight	8500 g
