Sony STR-DE695 Service Manual

STR-DE695
43 43
R903
R902
C921
C950
C813
C814
R904
R921
R923
D820 D823
D822D821
G901
S901
C924
Q922
C922
Q923
C951
R810
R922
C815
C816
CNP903
CNP801
R811
D916
R925
D910
D911
D912
D913
C920
C923
D914
D915
CNP901
CPN904
Q921
T902
F902
D901
RY901
R901
J911
F901
JW905
JW903
JW902
CNP906
CNP910
JW799
JW796
JW795
CNP907
T901
CNP902
Q901

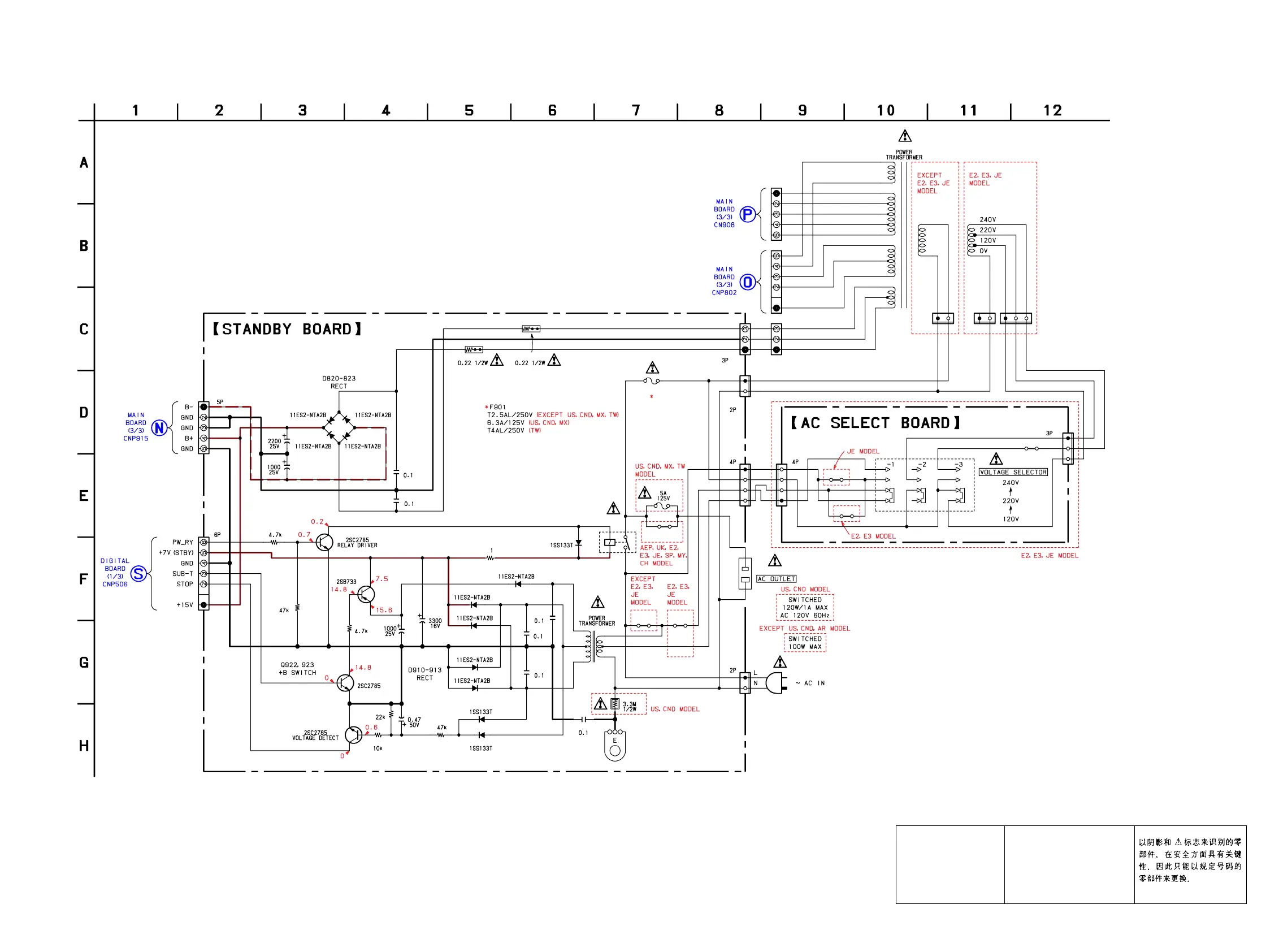

4-26. SCHEMATIC DIAGRAM — POWER SECTION — • Refer to page 24 for Common Note on Schematic Diagram.
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
(Page 28)
(Page 29)
(Page 28)
(Page 28)
Ver 1.1

Sony STR-DE695 Specifications

General

Dimensions (WxDxH)	430 x 310 x 157 mm
Power requirements	230 V; 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 3.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Speaker Selector A, B, A+B S-Video Input - 3.0 S-Video Output- 1.0 Video Input - 4.0 Video Output - 1.0
Connectivity technology	Wired
Power consumption (standby)	0.3 W
Power consumption (typical)	250 W

Weight and Dimensions

Weight	8500 g
