Sony XKS-8440 Service Manual

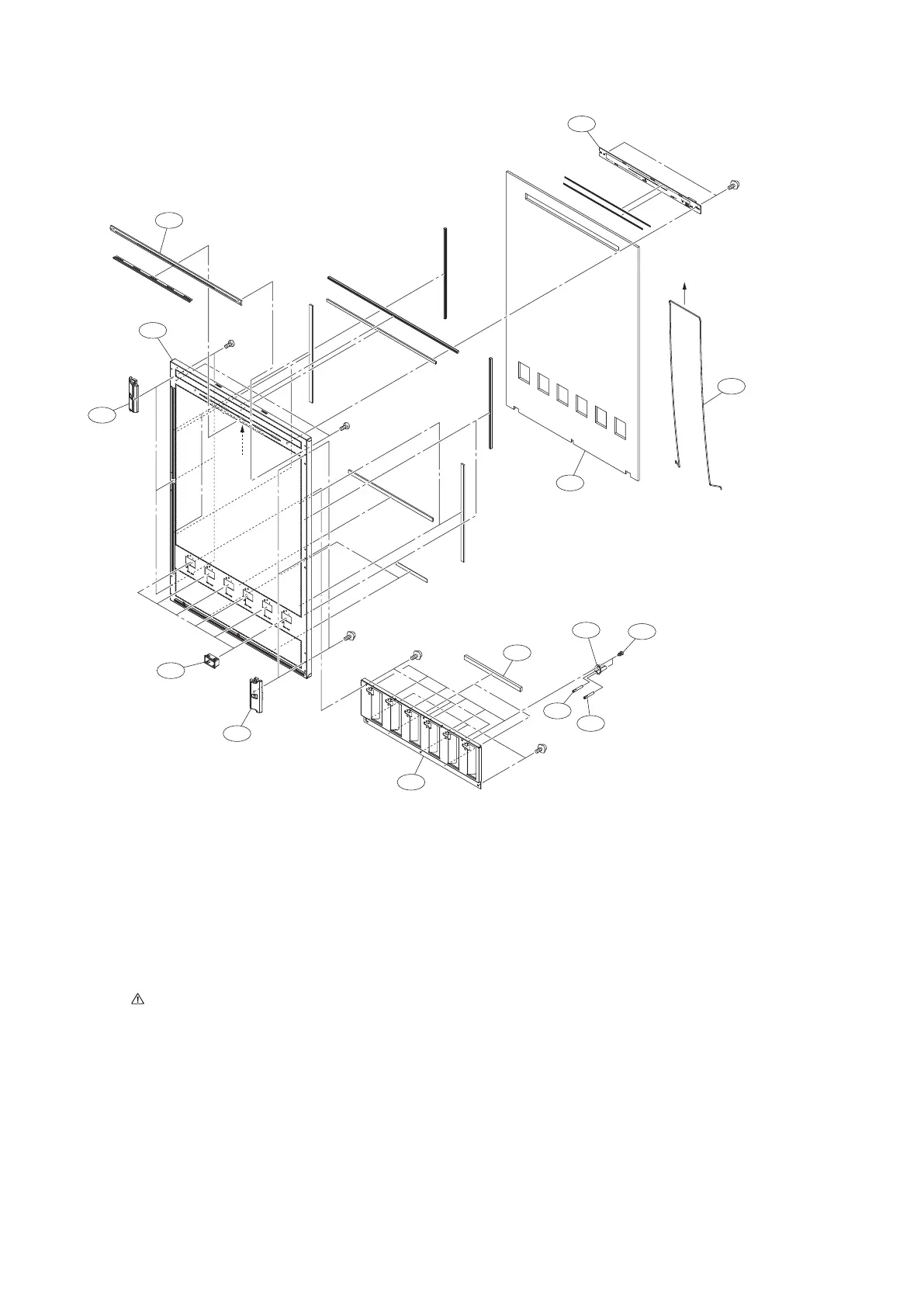

Front Panel
A
A
PS
3 x 6
PS
2 x 4
PSW
3 x 6
PSW
3 x 6
PSW
3 x 6
PSW
3 x 6
102
111
102
103
106
106
105
108
112
110
109
101
107
104
No. Part No. SP Description
101 A-2198-817-A s FP-301 MOUNT
102 4-170-582-02 s BRACKET, PANEL
103 4-183-472-01 s ESCUTCHEON
104 4-549-457-41 s PANEL (SIU), BAR
105 4-586-400-01 s CUSHION,FRONT PSU
106 4-586-401-01 s LIGHT, GUIDE
107 4-586-402-01 s HOLDER
108 4-744-389-01 s PLATE, POWER FIXED
109 4-744-391-01 s FILTER
110 4-744-392-01 s RETAINER,FILTER
111 4-744-396-01 s PANEL, FRONT
112 4-812-134-11 s RIVET (DIA. 3.5), NYLON
7-628-253-05 s SCREW +PS 2X4
7-682-647-01 s SCREW +PS 3X6
7-682-947-01 s SCREW +PSW 3X6
