4-4. DC Fan
4-4-1. Fan Holder Assembly
Note
This section describes the procedure for the upper fan holder assembly (A). The same replacement procedure can be
used for other fan holder assemblies.
Procedure

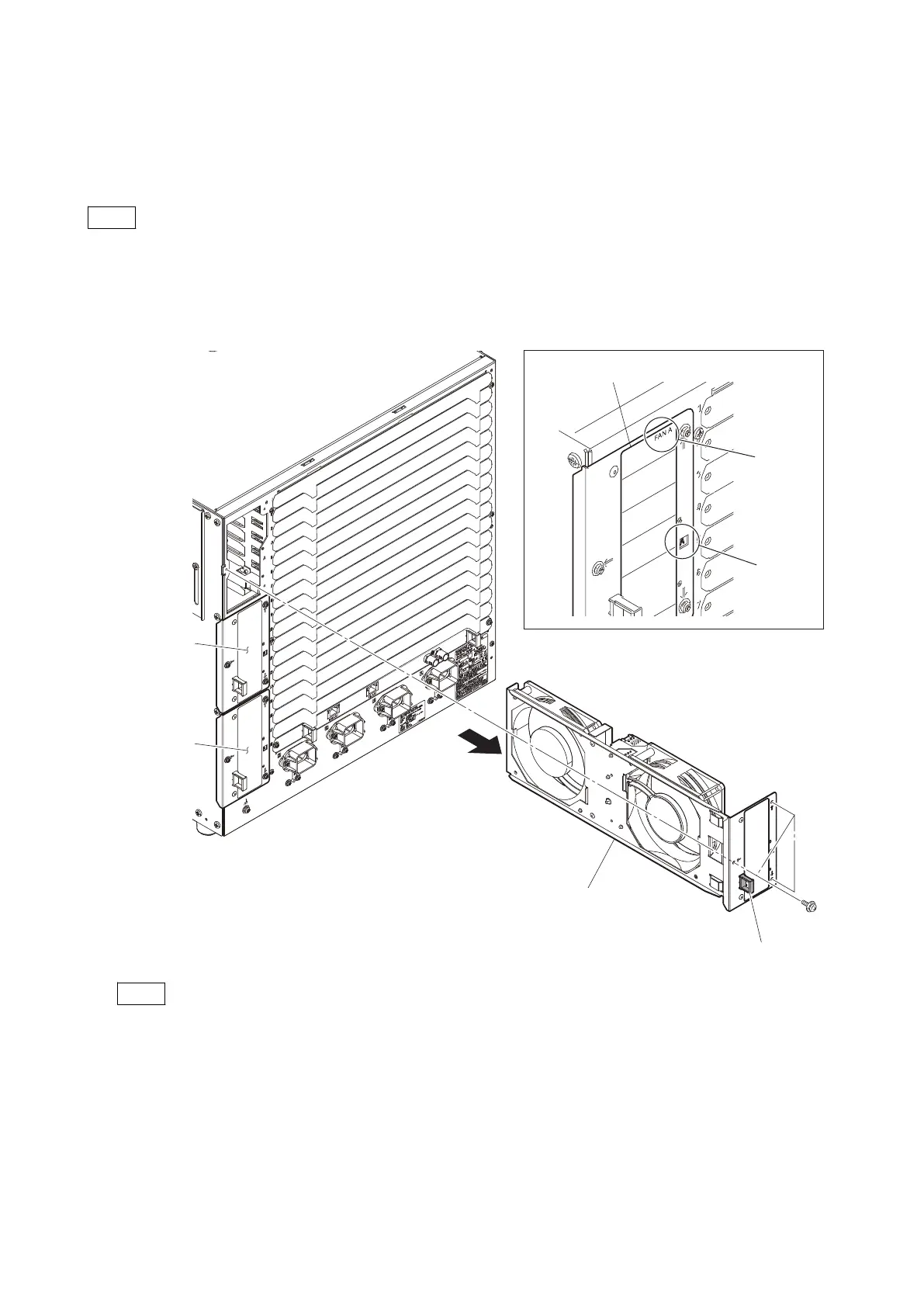

1. Remove the three screws, then remove the fan holder assembly (A) holding the handle.
This figure shows XVS-8000.
PSW3x 6
Fan holder
assembly (A)
Fan holder assembly (A)
Fan holder
assembly (B)
Fan name
Imprinting
mark
Handle
Label
Note
When attaching the fan holder assemblies, match the fan name on the label and the imprinting mark of the main
unit.
2. Install the removed parts by reversing the steps of removal.
4-4-2. DC Fan (Fan Holder Assembly (A))
Preparation
1. Remove the fan holder assembly. (Refer to “4-4-1. Fan Holder Assembly”)
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
4-6
