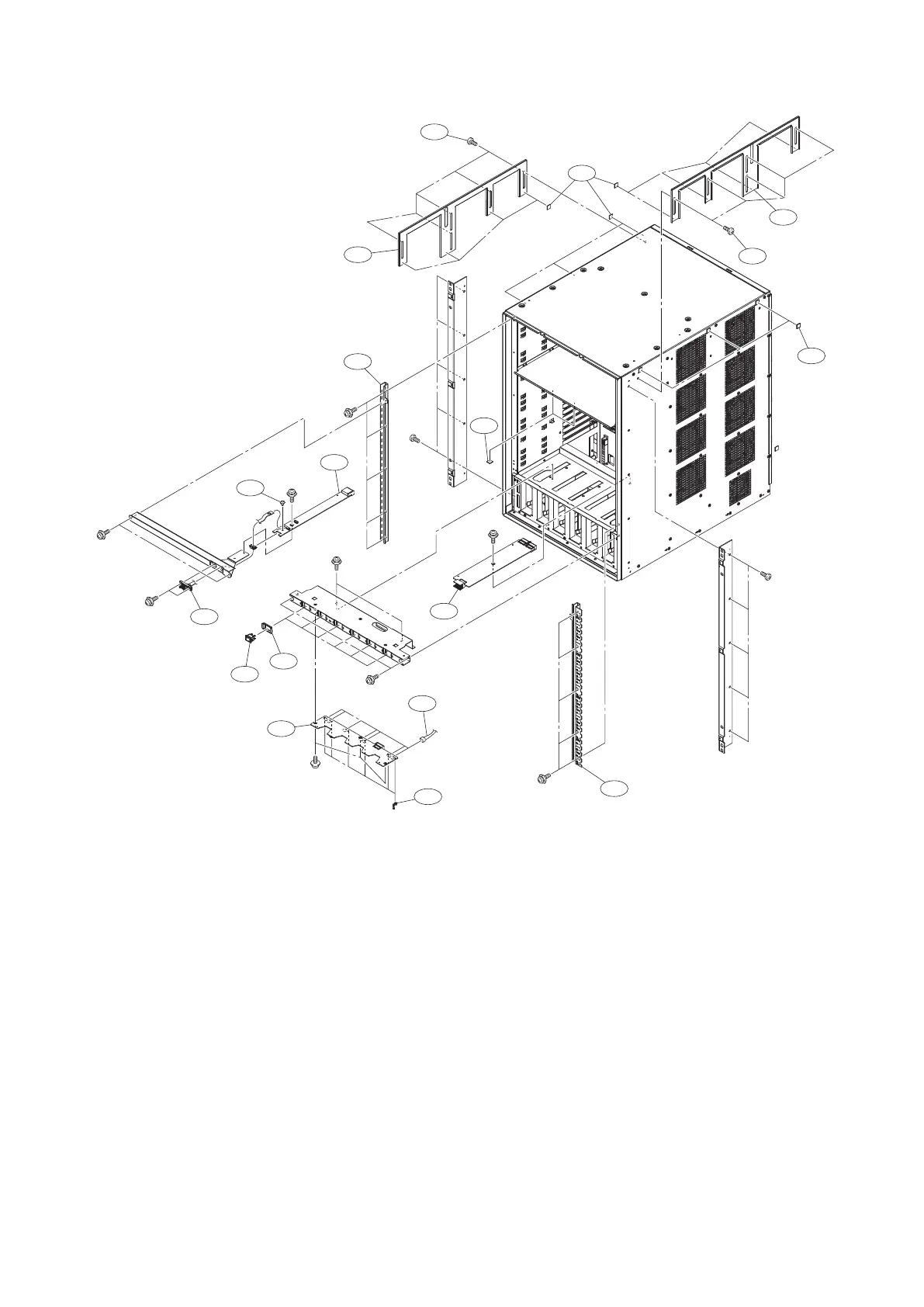

Sony XKS-8440 Service Manual

Main Chassis
PSW
3 x 6
PSW
3 x 6
B4 x 10
B4 x 10
PSW
3 x 6
PSW
3 x 6
PSW
3 x 6
PSW
3 x 12
PSW
3 x 6
PSW
3 x 6
PSW
3 x 6
213
212
210
210
210
202
207
201
208
205
204
209
203
206
213
214
214
211
No. Part No. SP Description
201 A-2198-813-A s CN-4018 MOUNT
202 A-2198-814-A s CN-4019 MOUNT
203 A-2199-165-A s HN-442 MOUNT
204 1-798-563-11 s SWITCH, POWER
205 1-971-158-11 s HARNESS, SUB CN3825-SW
206 1-972-460-11 s HARNESS, SUB HN442-FP-9K
207 3-531-576-11 s RIVET
208 4-098-036-01 s SADDLE WIRE (A)
209 4-586-453-01 s COVER,SWITCH
210 4-586-460-01 s CUSHION,HANDLE VIBRATION PROOF
211 4-744-379-01 s PLATE (R), LOCK
212 4-744-380-01 s PLATE (L), LOCK
213 4-744-388-01 s HANDLE
214 4-884-982-03 s SCREW, STEP
7-682-562-04 s SCREW +B 4X10
7-682-947-01 s SCREW +PSW 3X6
7-682-950-01 s SCREW +PSW 3X12
