Sony XKS-8440 Service Manual

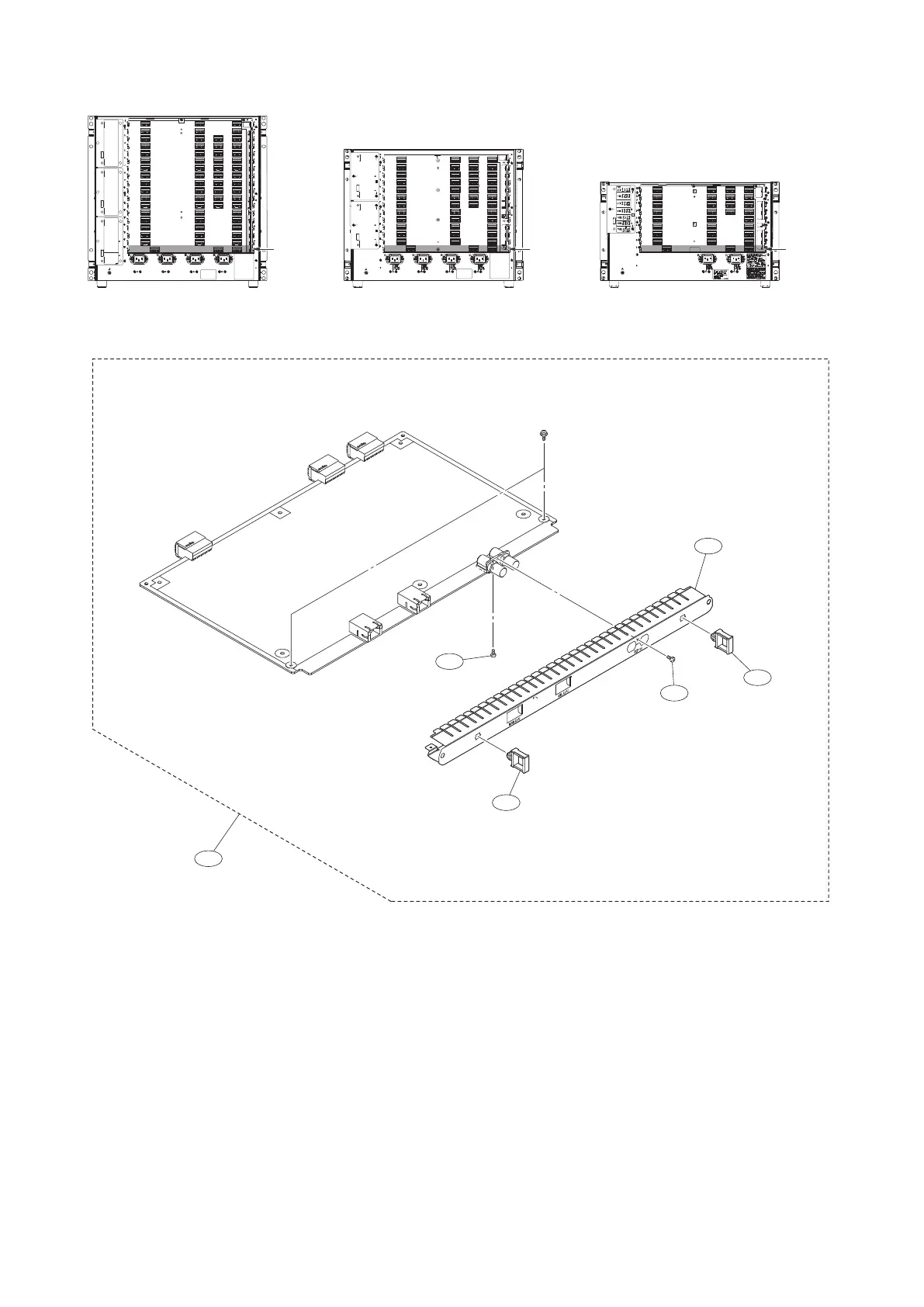

CN-3807 Board
Rear view
(XVS-8000)
Rear view
(XVS-7000)
SLOT No. 18 SLOT No. 13
Rear view
(XVS-6000)
SLOT No. 9
PSW2.6 x 6
1001
1002
1003
1003
1004
1005
No. Part No. SP Description
1001 A-2082-225-A s MOUNTED CIRCUIT BOARD, CN-3807
1002 2-655-586-01 s SCREW +B M2.6 EG
1003 3-172-089-01 o HANDLE
1004 3-637-901-02 s SCREW M2.6X5
1005 4-586-498-01 s PANEL (CN-3807)
7-621-759-45 s +PSW, 2.6X6
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-29
