4-3-2. XVS-8000/7000/6000
Preparation
1. Remove the front panel. (Refer to “4-2. Front Panel”)

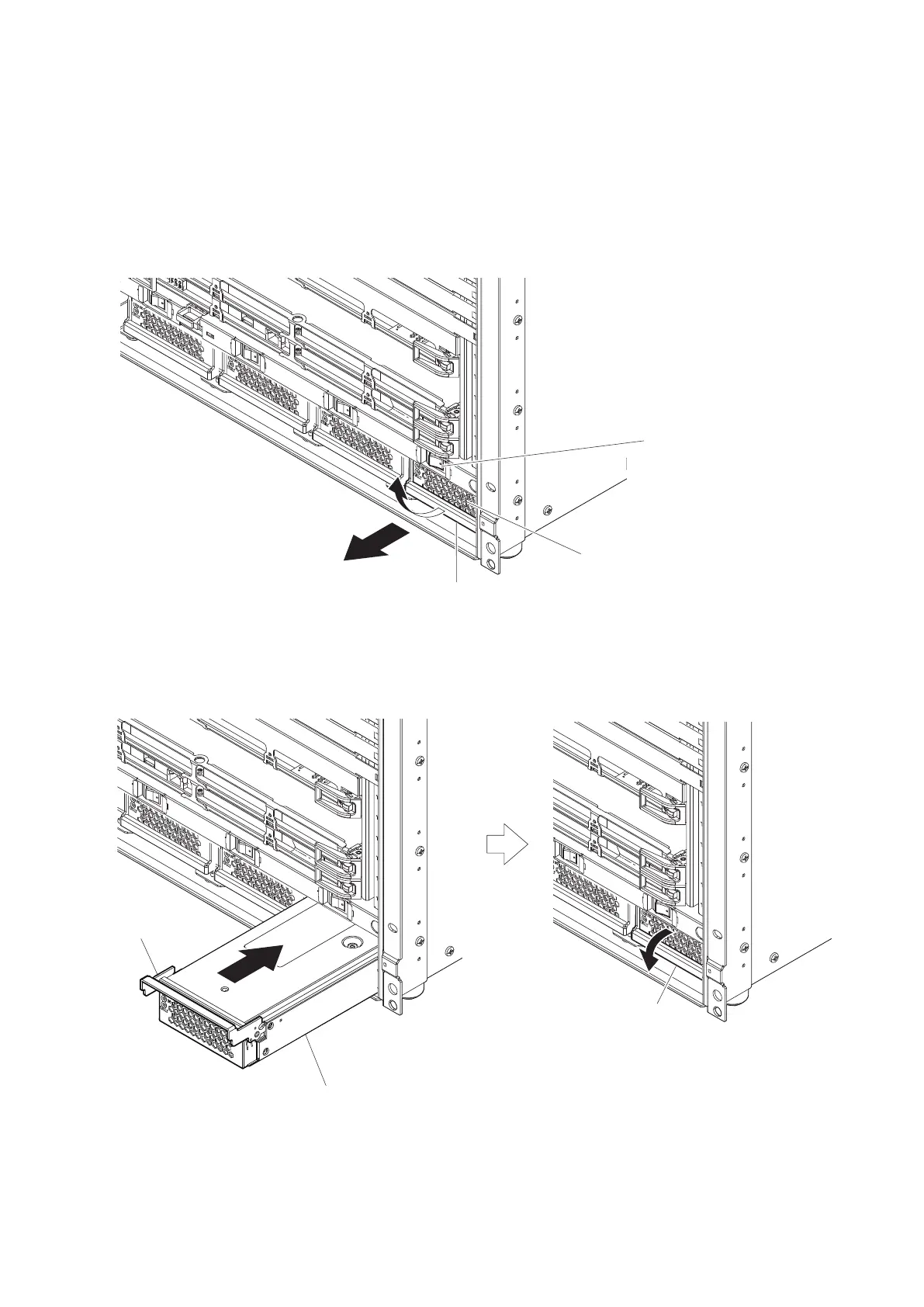

Removing Procedure
1. Open the lever, and remove the switching regulator.
This figure shows XVS-8000.
Switching regulator
Power switch
Lever
Installing Procedure
2. While the lever is opened as shown in the illustration, push the switching regulator until it stops.
3. Close the lever.
This figure shows XVS-8000.Switching regulator
Lever
Lever
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
