4-6. Front Board
Tip
This section describes the replacement procedure of MIX-57 board. This replacement procedure applies to following.
• CA-92 board
• CA-92A board
• DVP-53A board
• MIX-57A board
• OUT-38 board
• OUT-38A board
• VPR-129 board
• VPR-129A board
• XPT-38 board
• DVP-68 board
Preparation
1. Remove the front panel. (Refer to “4-2. Front Panel”)
Removing Procedure
1. Push the unlock buttons (1), open the eject levers (2).
2. Remove the MIX-57 board.

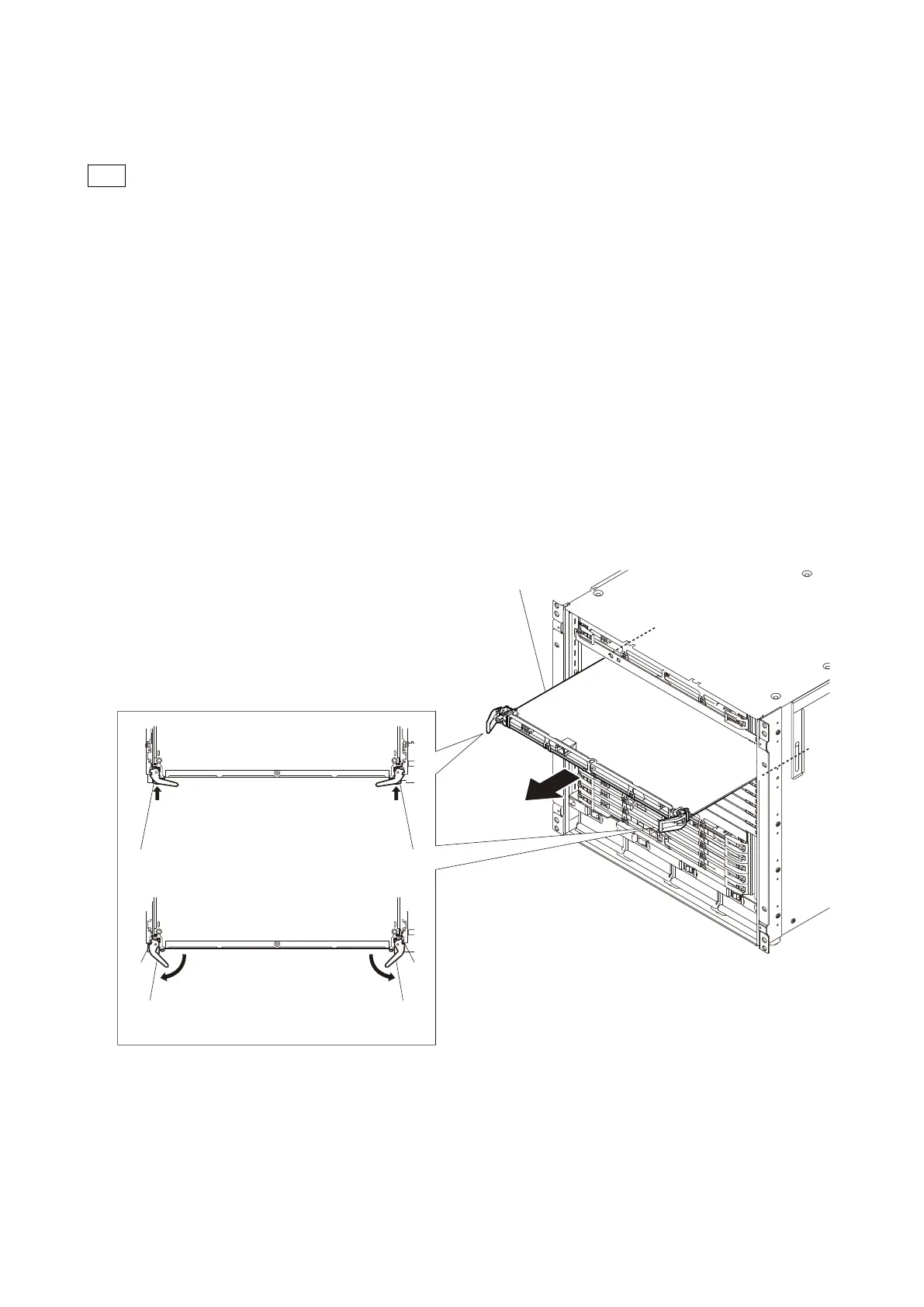

This figure shows XVS-8000.
(1) (1)
(2)(2)
MIX-57 board
Eject lever Eject lever
A
Unlock buttonUnlock button
A
Installing Procedure
3. While the eject levers are opened as shown in the illustration, insert the MIX-57 board into the board guide.
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
4-12
To Next Page
