2014-09-09 Workshop Manual, GGP Park 6 Control wires 2
6.1 Description
All wires consist of a wire and a conduit. In the
wire ends one part, the wire or the conduit, is
fastened to the body and the other part to a le-
ver. The levers are connected to the operator
control and to the controlled device. I.e. PTO
wire, throttle wire, etc.
The wires are also in most cases fitted with
adjustments sleeves with locking nuts or angle
links at one or both ends.

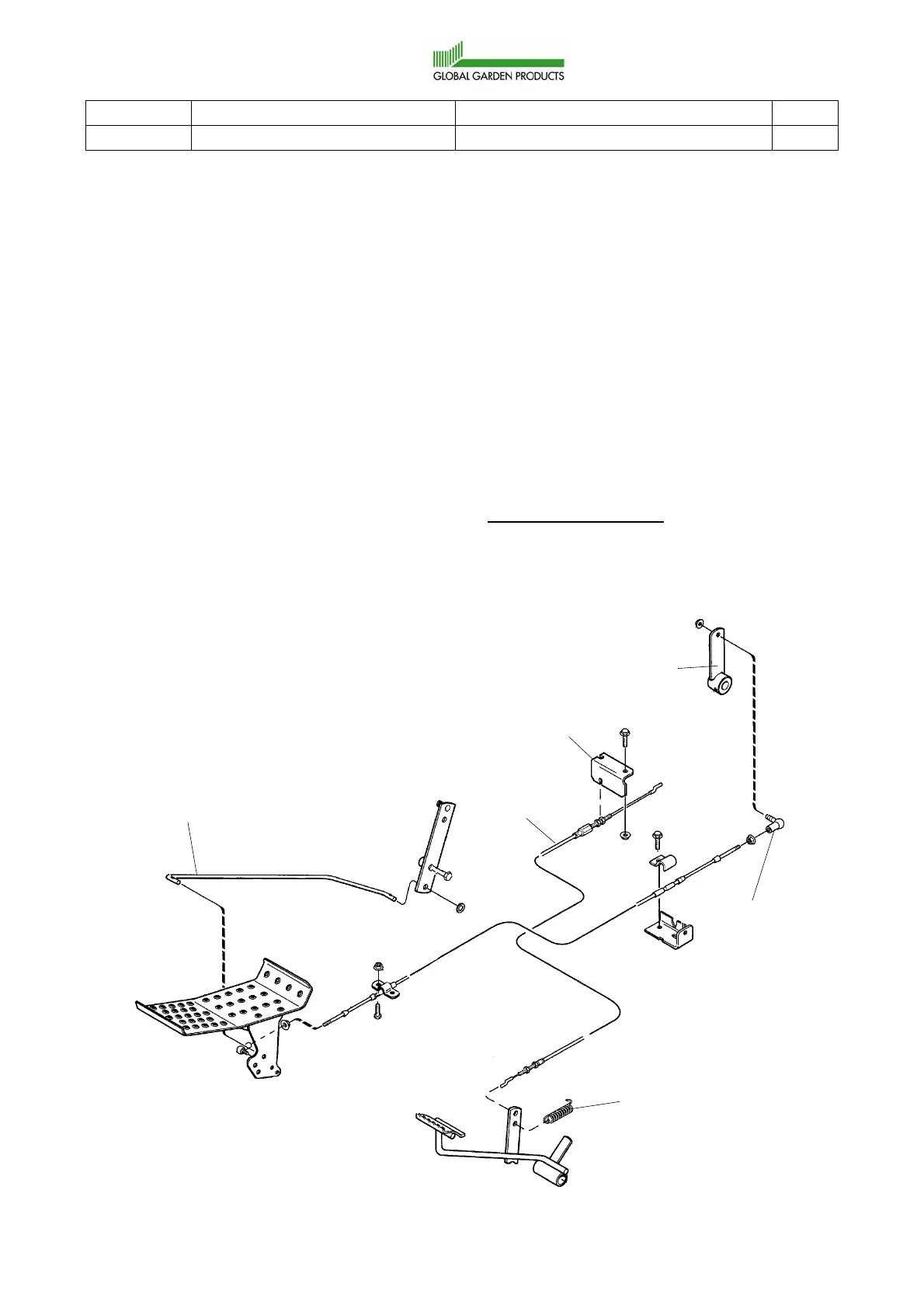

A. Rod
B. Wire with conduit
C. Fastening to body
D. Lever
E. Spring
F. Elbow link
Wires (except the HST wire) can only
transfer traction forces. The return forc-
es for the wires are maintained by return
springs.
The HST wire is dimensioned to transfer
also pushing forces.
To transfer higher forces and both push-
ing and traction forces, rods are used,
i.e. brakes, etc.
Maintenance of wires:
Drop a little engine oil or lubricating
spray in the ends of the control wires two
or three times a year.
A
B
C
D
E
F
