Edition Manual Chapter Page
2014-09-09 Workshop Manual, GGP Park 6 Control wires 3
6.2 General measures

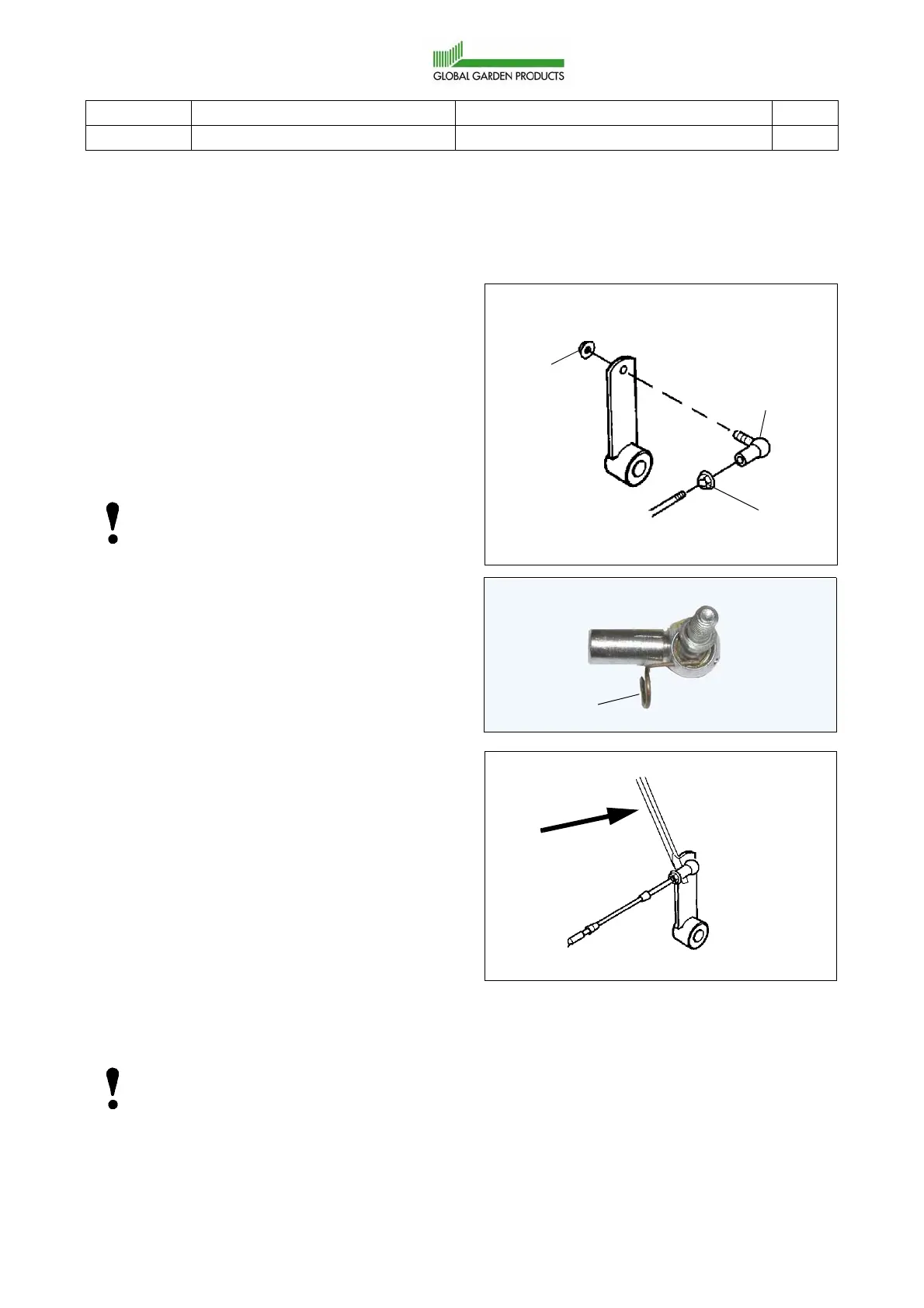

6.2.1 Elbow links
In many cases there are elbow links mounted
at the wire ends. The elbow links have two
functions as follows:
• To transmit the movement to/from the
actual lever.
• For wire adjustment purpose. The wire ten-
sion is adjusted by screwing the link on/off
the threaded rod at the wire.
Note!
At the adjustment, at least 5 threads
shall be engaged.
To change an elbow link
1. Loosen the nut (3) with a 8 mm wrench.
2. Remove the nut (1) with a 8 mm wrench.
Hold the elbow stud with a 7 mm wrench.
3. Screw the elbow link off the rod.
4. The assembly is performed in the reverse
order.
5. After the assembly, adjust the wire.
To apart an elbow link
1. Fold up the circlip (4) from the elbow link
body.
2. Pull out the circlip.
3. Pry off the link body from the stud sphere by
help of a screwdriver or similar.
4. The assembly is performed in the reverse
order. The link body is pressed onto the
sphere by help of a polygrip or similar.
Note!
It is important that the circlip (4) is
inserted in both holes in the elbow link
body, otherwise the link will separate
during operation.
1
2
3
4
